UGC DOR5982750
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$223.59 CAD - $223.59 CAD
$223.59 CAD
$223.59 CAD - $223.59 CAD
$223.59 CAD

Vendu en lots de : 1

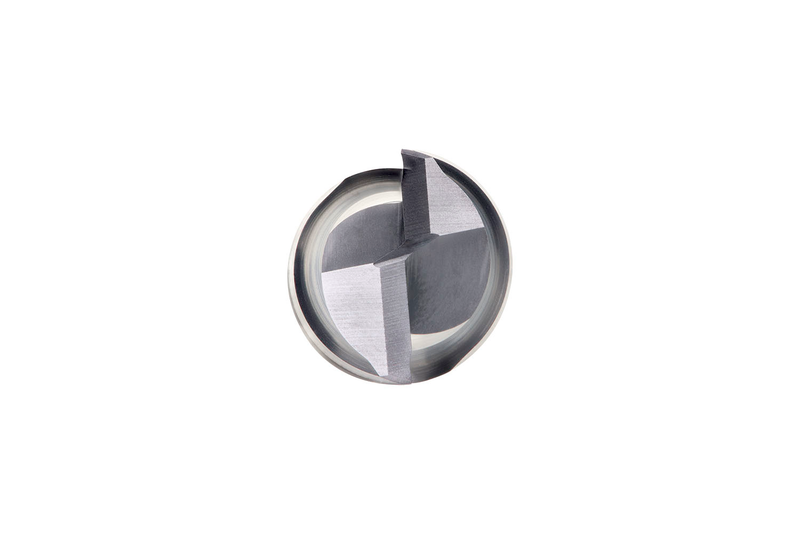

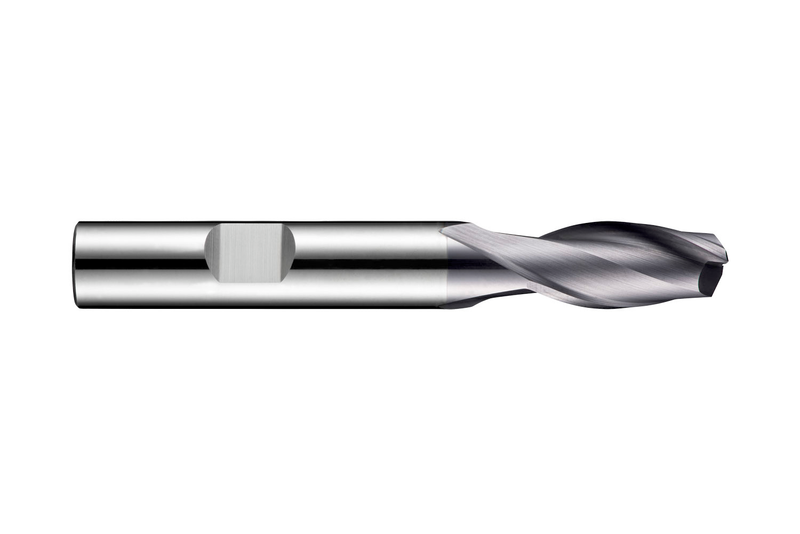

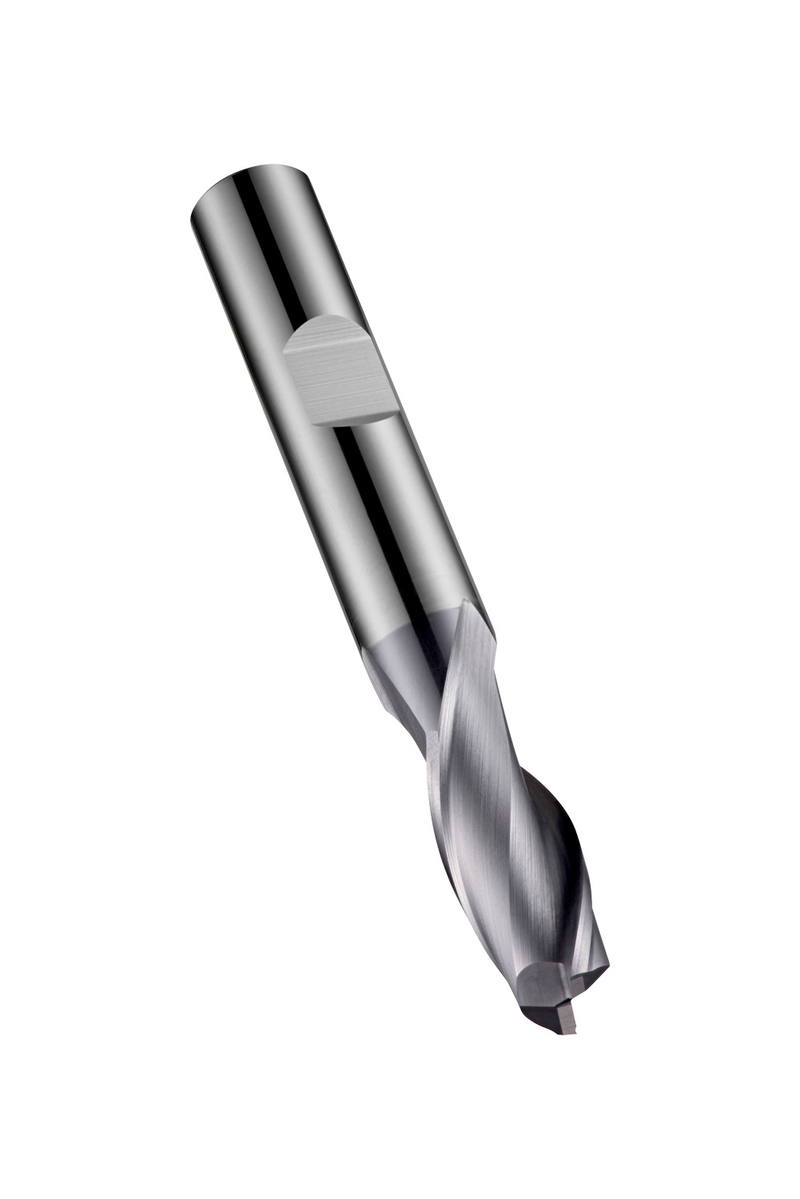

Fraise en bout longueur normale, 2 dents, diamètre 18mm, longueur de coupe 32mm, longueur totale 92mm et coins chanfreinés 0,2mm à 45°, selon la norme DORMER, avec queue Weldon 18mm, carbure monobloc avec revêtement TiAlN, hélice 30° et angle de dépouille 12° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte et l'aluminium moulé, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S92218.0
GradeTiAlN
Product Number5982750
Product FamilyS922
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm

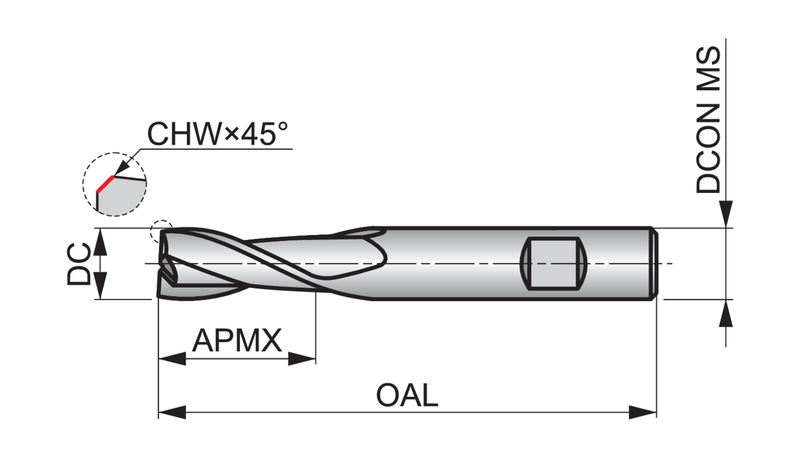

Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40041
EAN7320760040041
File Type Download
S92218.0 — Line Drawing PDF Download
