UGC DOR5982759
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$269.04 CAD - $269.04 CAD
$269.04 CAD
$269.04 CAD - $269.04 CAD
$269.04 CAD

Vendu en lots de : 1

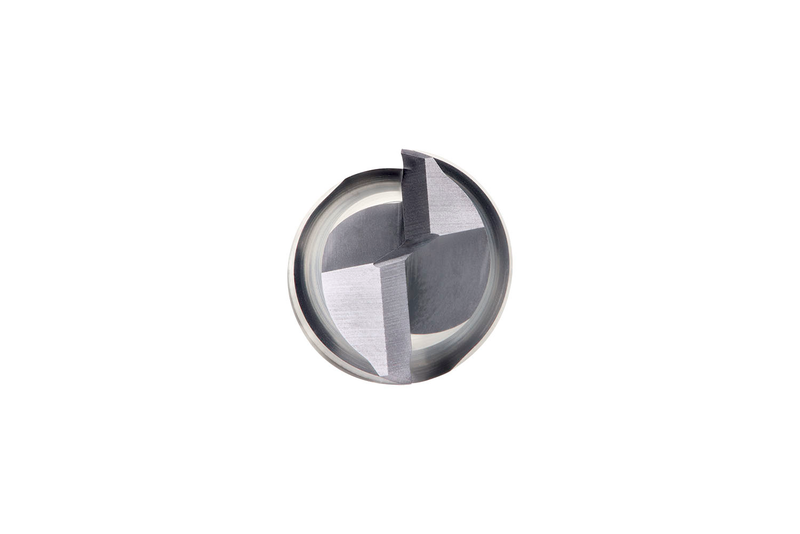

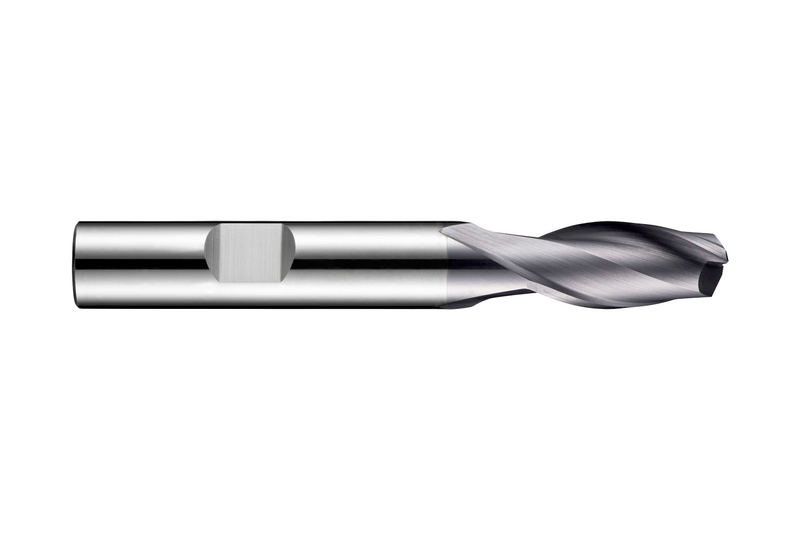

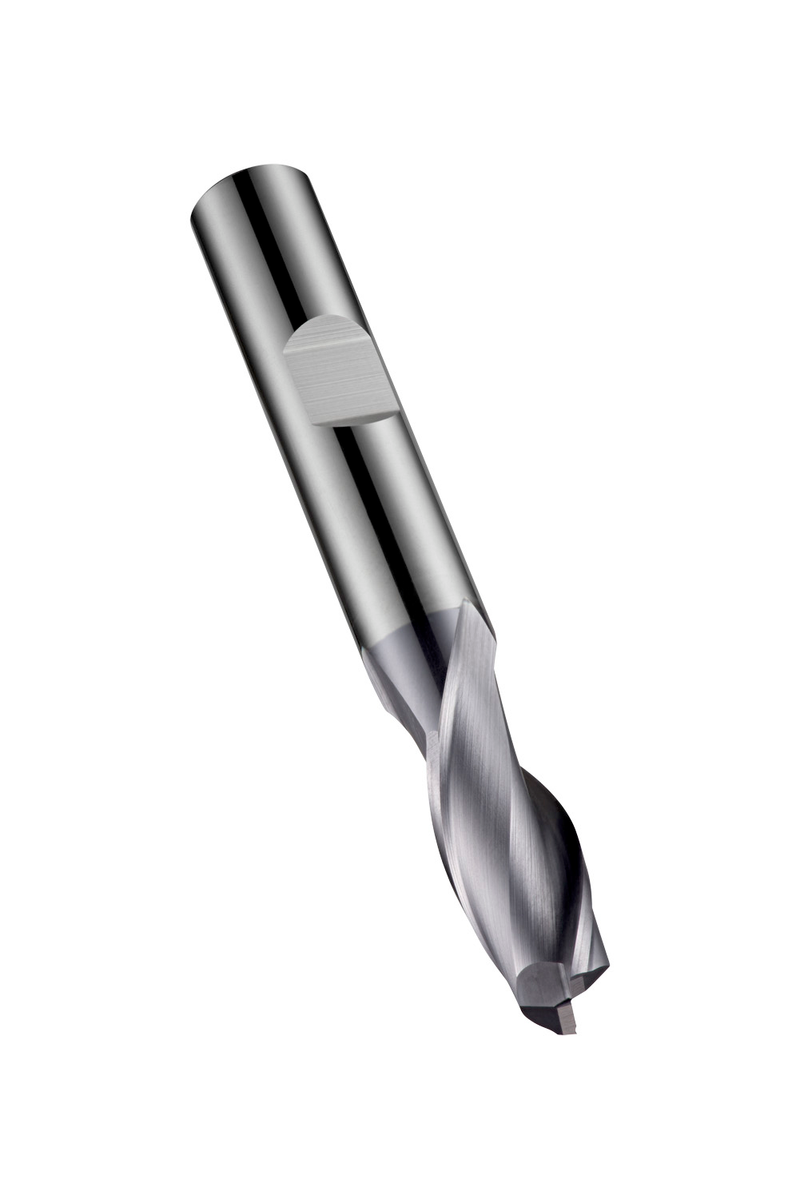

Fraise en bout de longueur normale à 2 arêtes, diamètre 20mm avec 38mm de longueur de coupe, 104mm de longueur totale et des coins chanfreinés de 0,3mm à 45°, selon la norme DORMER avec une queue Weldon de 20mm, en carbure monobloc avec revêtement TiAlN, hélice de 30° et angle de dépouille de 12° pour le fraisage de fentes dans l'acier et l'acier moulé, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S92220.0
GradeTiAlN
Product Number5982759
Product FamilyS922

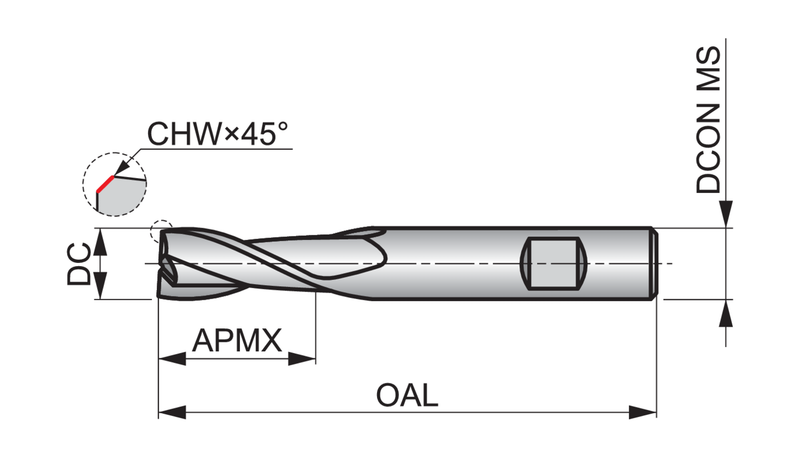

Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40058
EAN7320760040058
File Type Download
S92220.0 — Line Drawing PDF Download
