S9223.0
S9223.0
S9223.0
S9223.0

S9223.0

UGC DOR5982761
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.87 CAD - $32.87 CAD
$32.87 CAD
$32.87 CAD - $32.87 CAD
$32.87 CAD

Vendu en lots de : 1

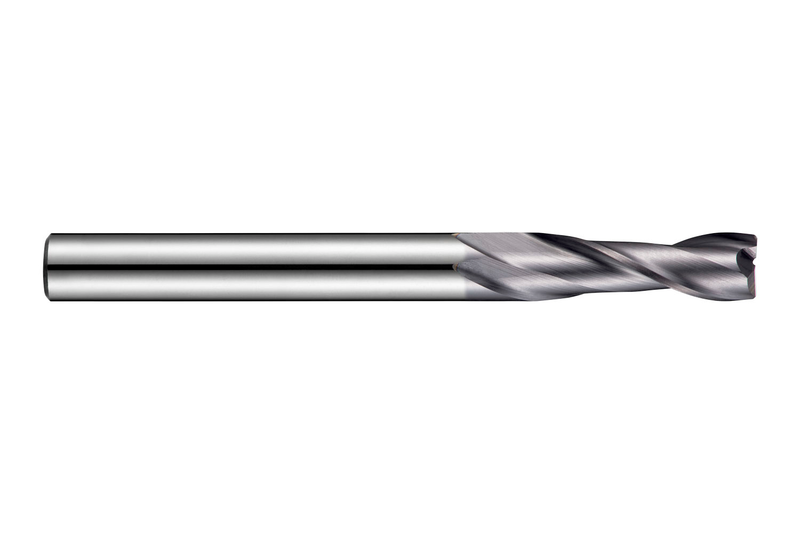

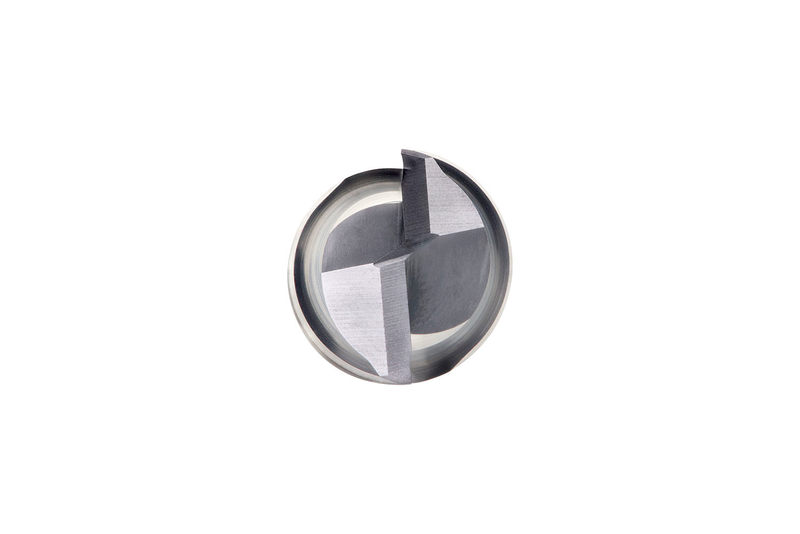

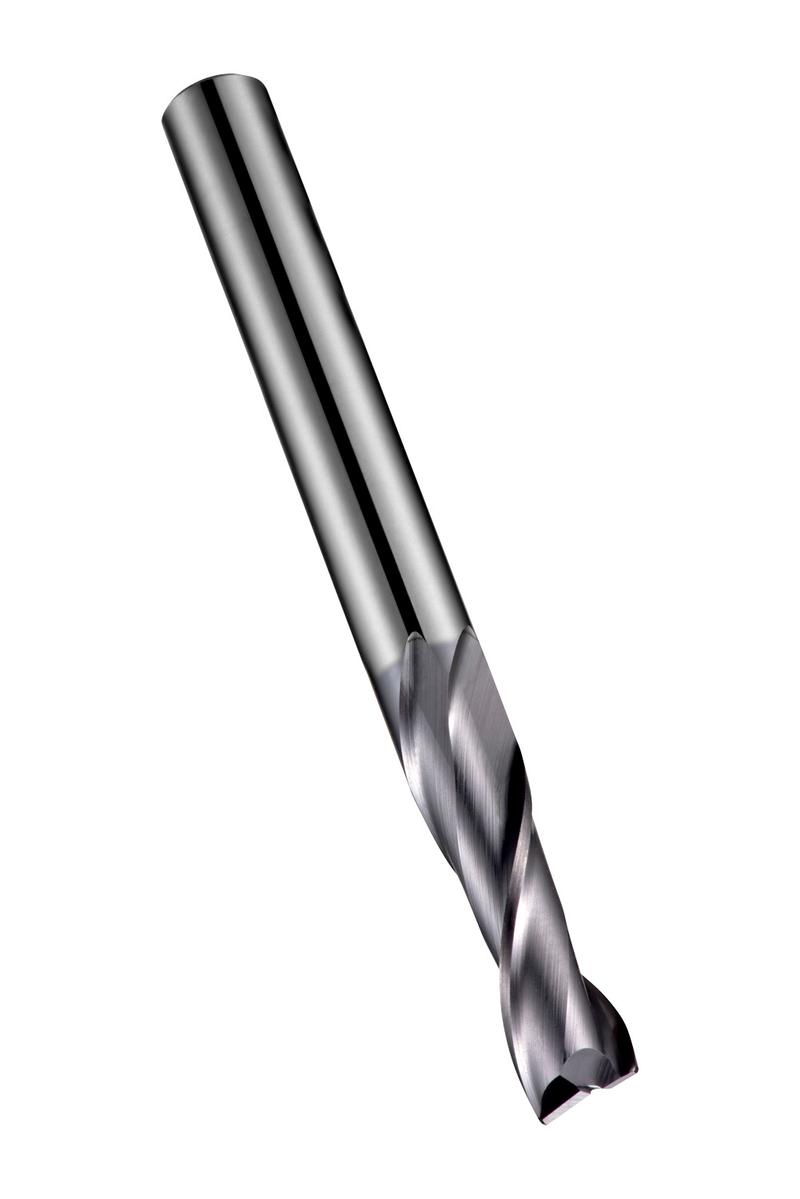

Fraise en bout de longueur standard à 2 arêtes, diamètre 3mm avec une longueur de coupe de 12mm, longueur totale de 38mm et bords chanfreinés à 45° de 0,08mm, selon la norme DORMER avec une queue Weldon de 3mm, en carbure monobloc avec revêtement TiAlN, hélice de 30° et angle de dépouille de 12° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte et l'aluminium moulé ou le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9223.0
GradeTiAlN
Product Number5982761
Product FamilyS922
Insert Geometry
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm

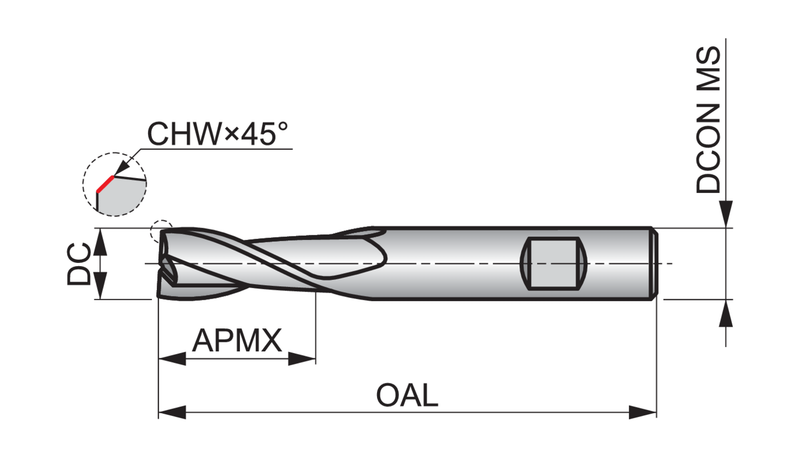

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNormes de travail
Reference Numbers
EDP Number39939
EAN7320760039939
File Type Download
S9223.0 — Line Drawing PDF Download
