S9224.0
S9224.0
S9224.0
S9224.0

S9224.0

UGC DOR5982764
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.89 CAD - $35.89 CAD
$35.89 CAD
$35.89 CAD - $35.89 CAD
$35.89 CAD

Vendu en lots de : 1

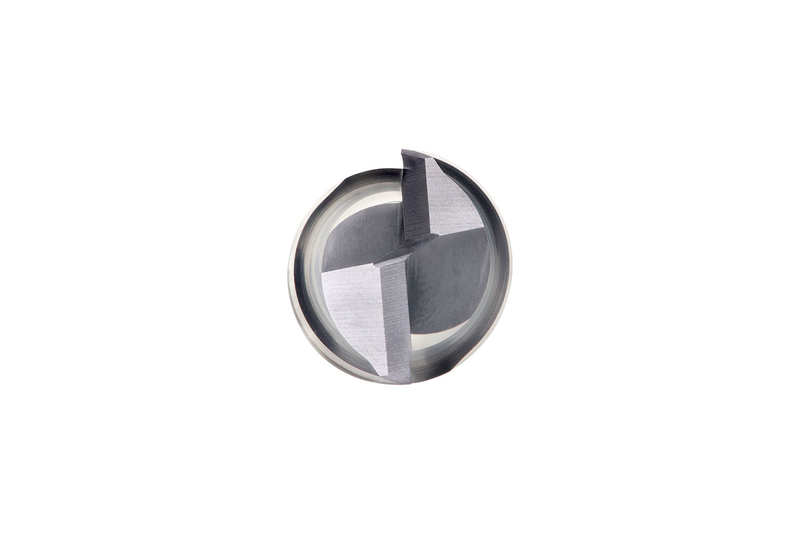

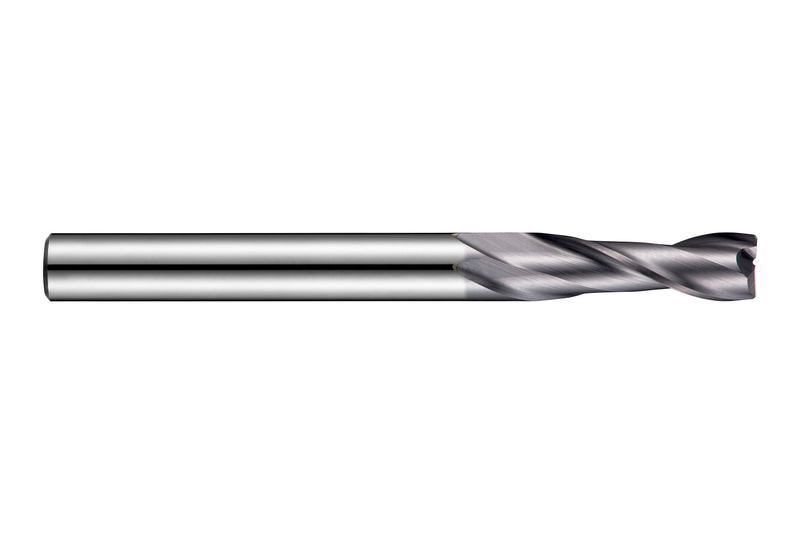

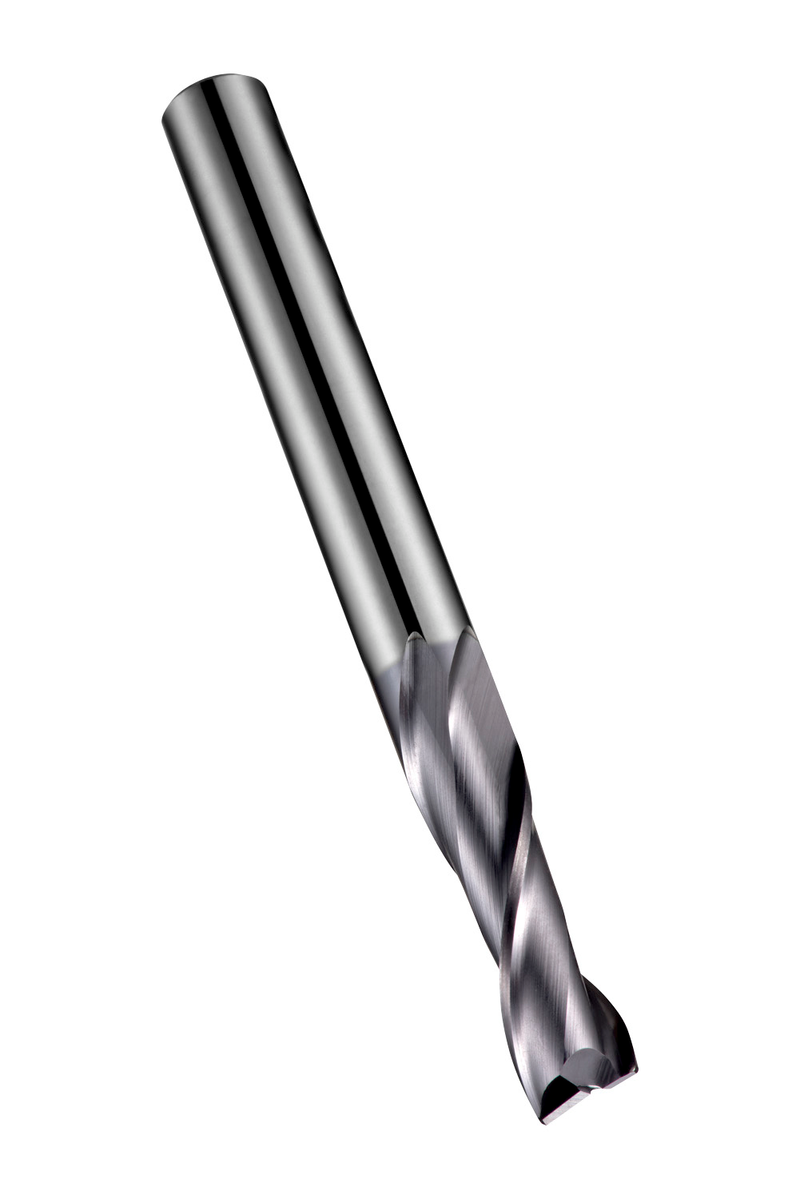

Fraise en bout longueur normale, 2 dents, diamètre 4mm avec 14mm de longueur de coupe, 50mm de longueur totale et des bords d’arête chanfreinés à 45° de 0,08mm, selon la norme DORMER avec une queue Weldon de 4mm, en carbure monobloc avec revêtement TiAlN, hélice à 30° et angle de dépouille de 12° pour le fraisage de rainures dans l’acier et l’acier moulé, la fonte et l’aluminium moulé, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9224.0
GradeTiAlN
Product Number5982764
Product FamilyS922
Insert Geometry
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm

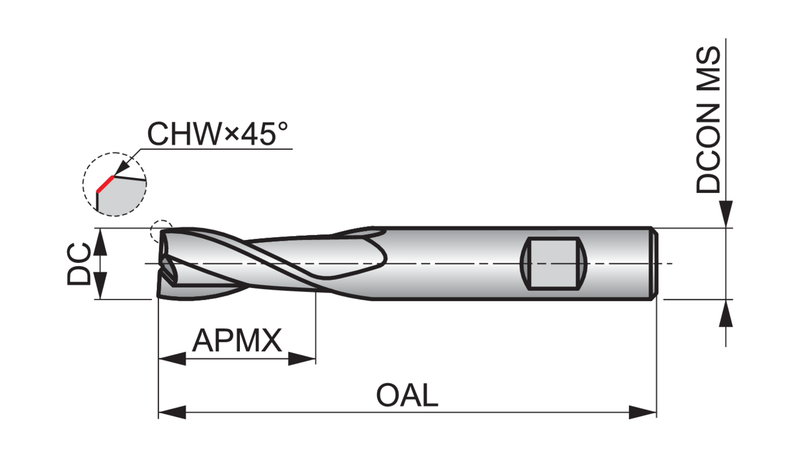

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number39946
EAN7320760039946
File Type Download
S9224.0 — Line Drawing PDF Download
