UGC DOR5982786
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.46 CAD - $82.46 CAD
$82.46 CAD
$82.46 CAD - $82.46 CAD
$82.46 CAD

Vendu en lots de : 1

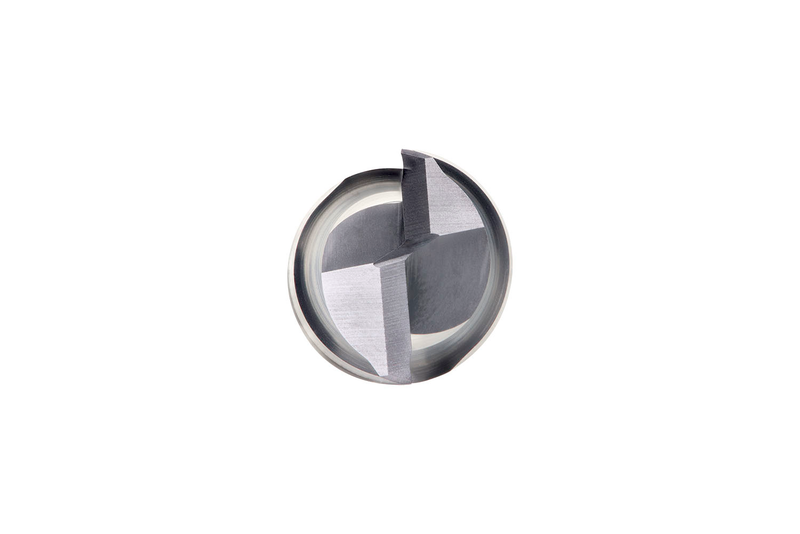

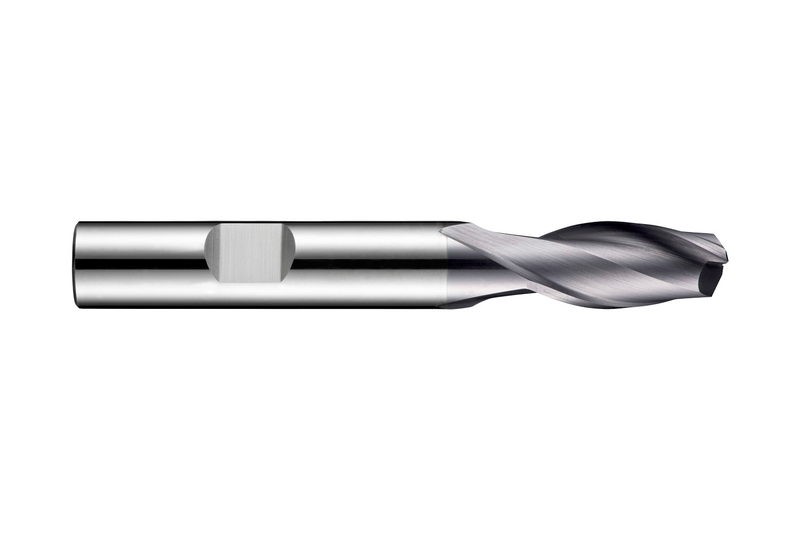

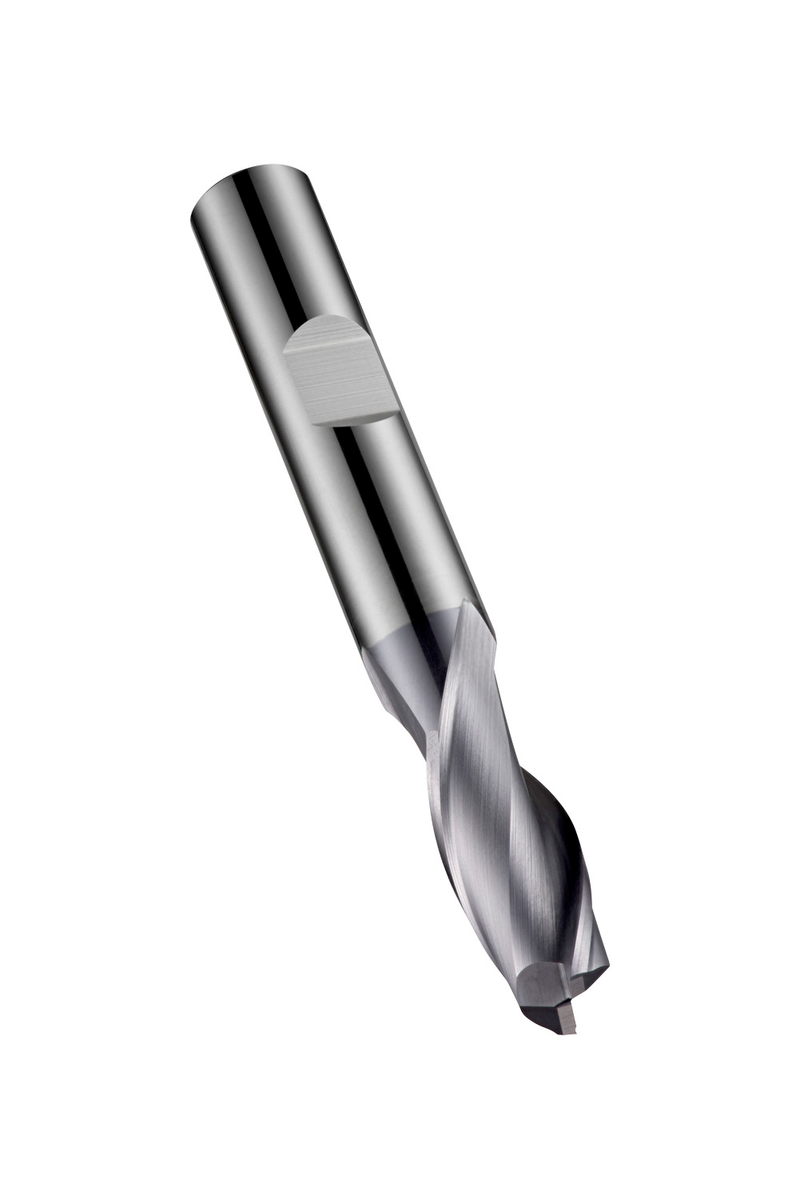

Fraise en carbure monobloc à queue Weldon de 10 mm, conforme à la norme DORMER, longueur normale, 2 dents, diamètre 9 mm, longueur de coupe 21 mm, longueur totale 72 mm, chanfrein à 45° de 0,13 mm aux arêtes, revêtement TiAlN, hélice de 30° et angle de dépouille de 12°, pour l'usinage de rainures dans l'acier et l'acier moulé, la fonte et l'aluminium moulé, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9229.0
GradeTiAlN
Product Number5982786
Product FamilyS922
Insert Geometry
Depth of Cut Max — in (APMX)0.8268"
Depth of Cut Max — mm (APMX)21.0 mm

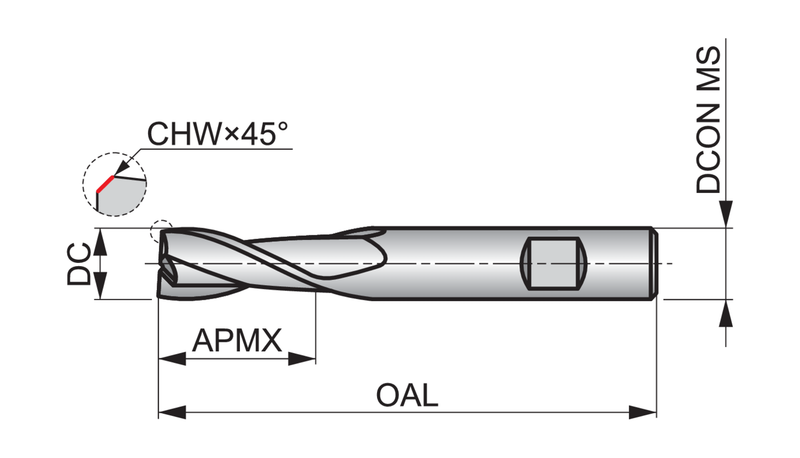

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number39991
EAN7320760039991
File Type Download
S9229.0 — Line Drawing PDF Download
