UGC DOR5982790
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$77.17 CAD - $77.17 CAD
$77.17 CAD
$77.17 CAD - $77.17 CAD
$77.17 CAD

Vendu en lots de : 1

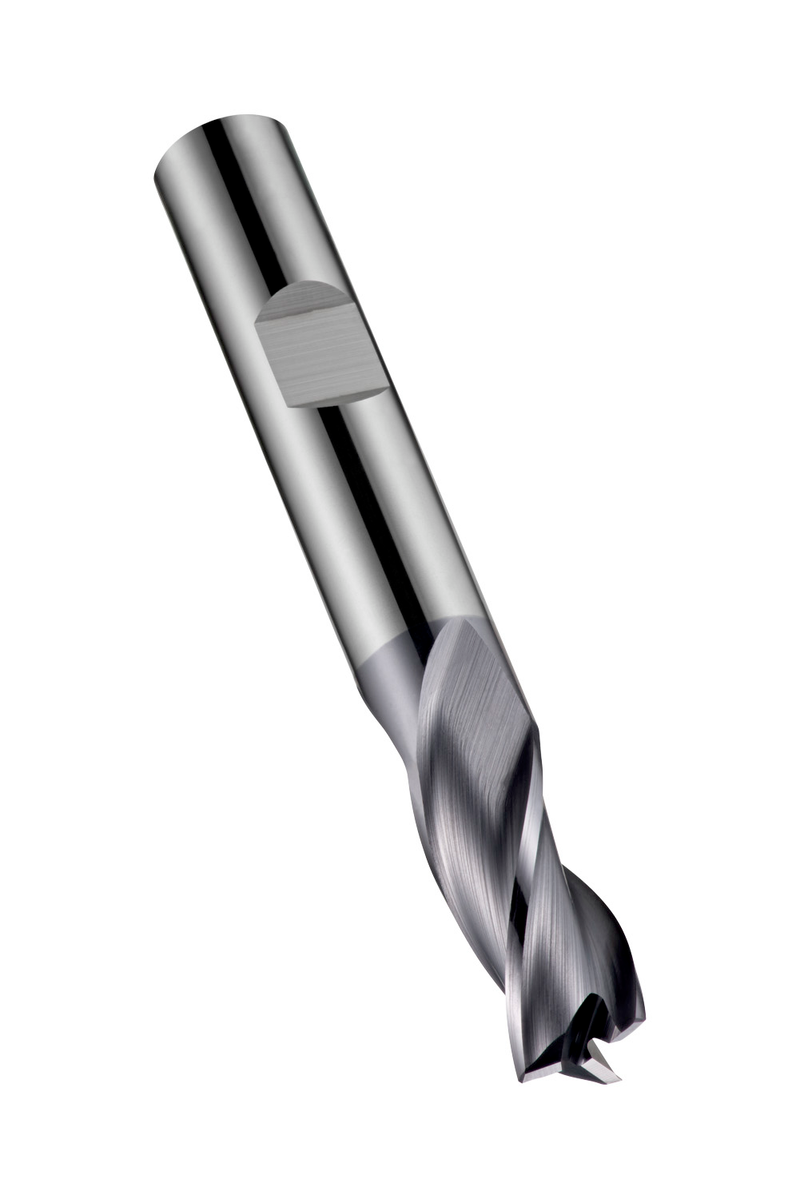

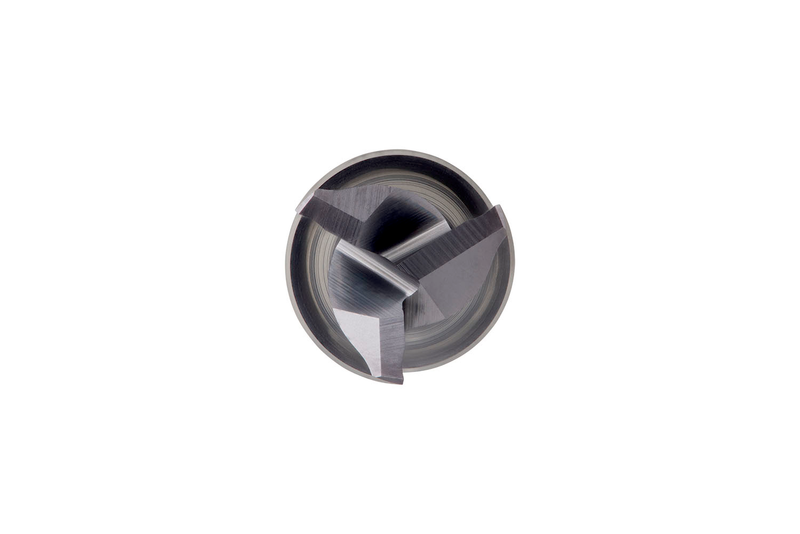

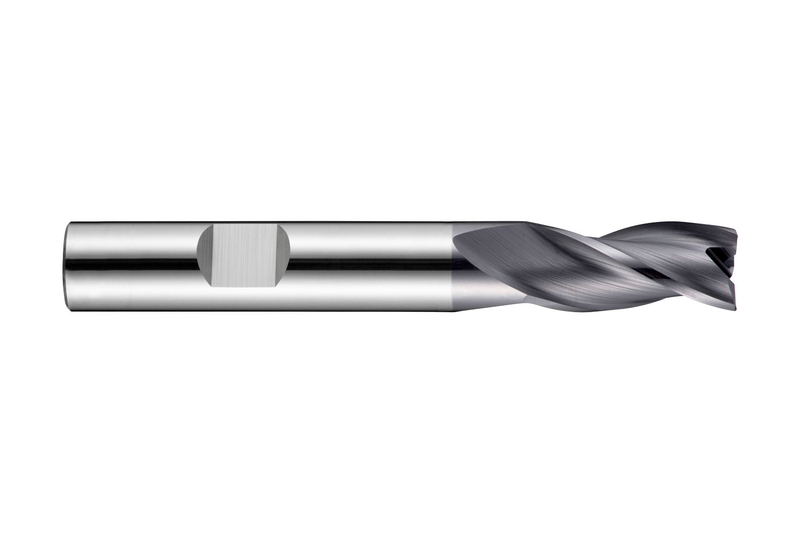

Fraise en bout de longueur standard à 3 dents, diamètre 10mm avec une longueur de coupe de 22mm, longueur totale de 72mm et chanfreins d'angle de 0.2mm à 45°, selon la norme DORMER avec une queue Weldon de 10mm, en carbure monobloc avec revêtement TiAlN, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulement et le fraisage de rainures dans l'acier et l'acier moulé, la fonte et l'aluminium moulé ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S93310.0
GradeTiAlN
Product Number5982790
Product FamilyS933
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

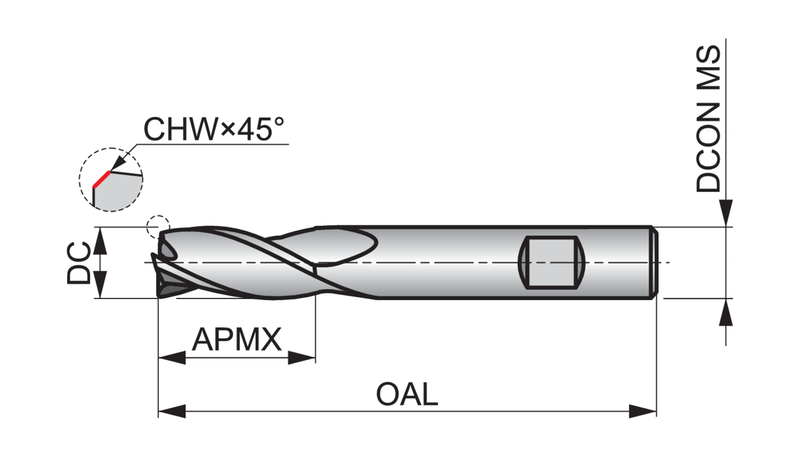

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40157
EAN7320760040157
File Type Download
S93310.0 — Line Drawing PDF Download
