UGC DOR5982794
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$107.83 CAD - $107.83 CAD
$107.83 CAD
$107.83 CAD - $107.83 CAD
$107.83 CAD

Vendu en lots de : 1

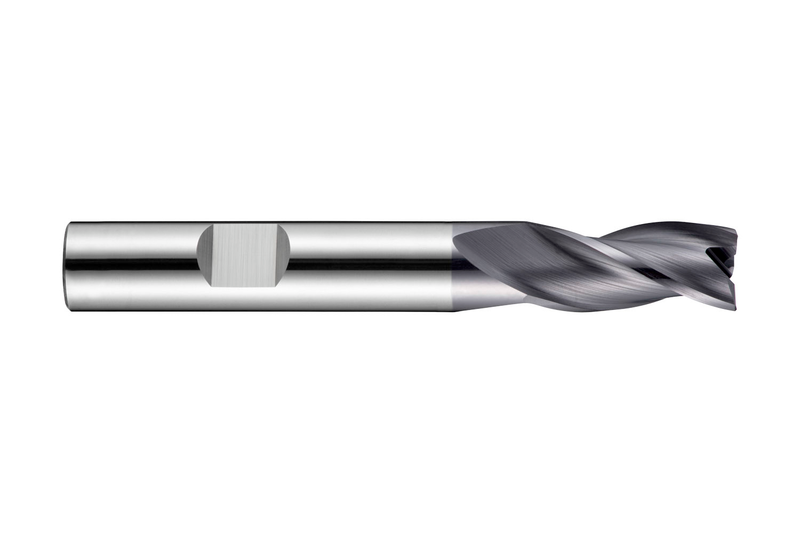

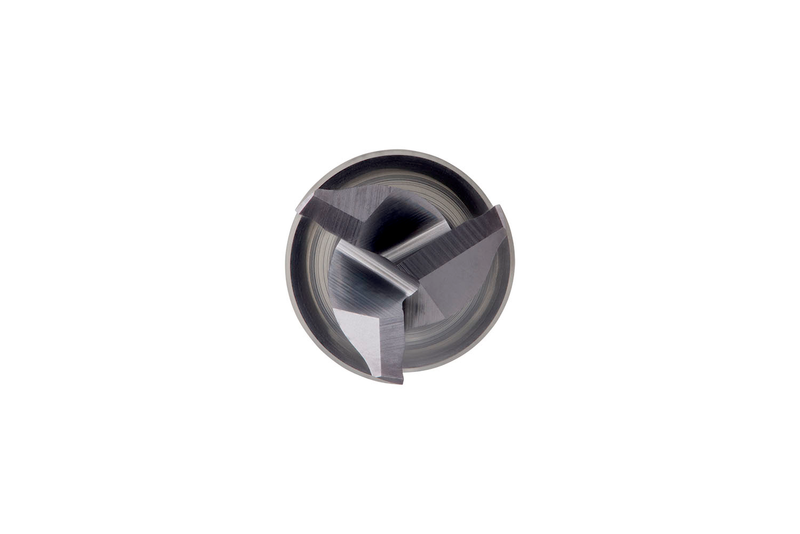

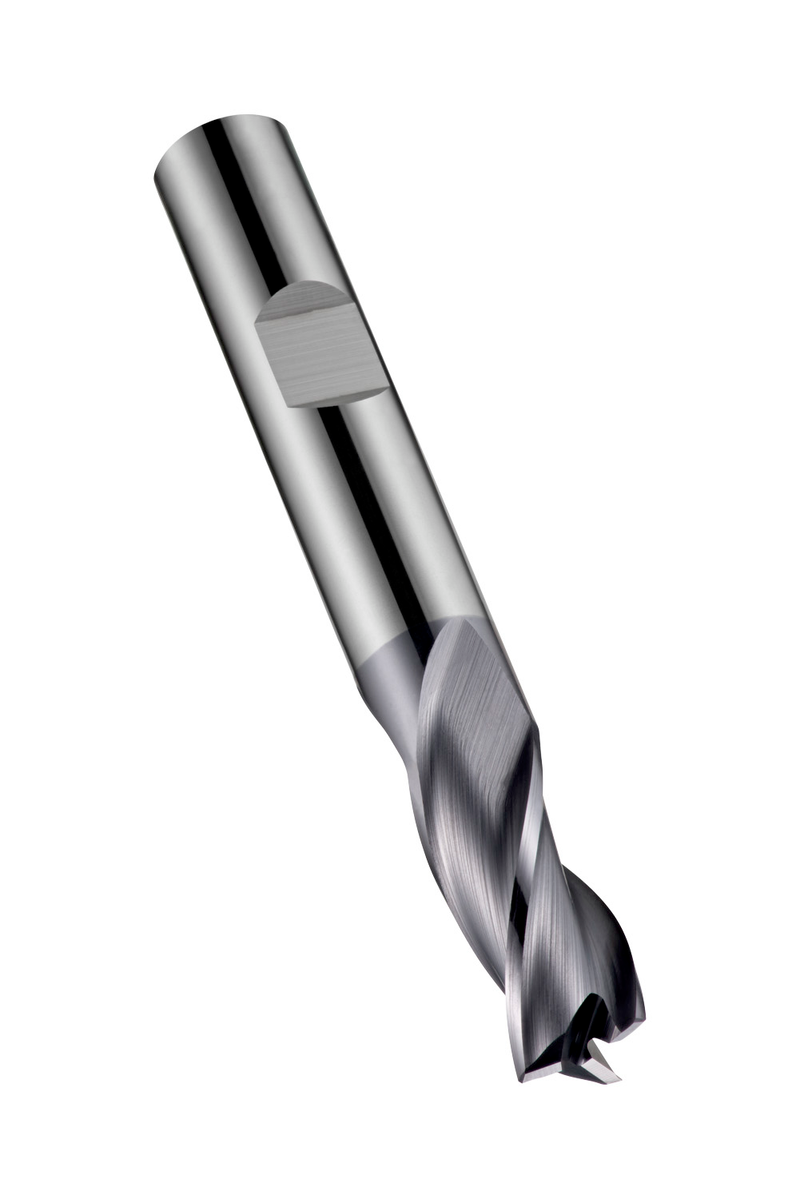

Fraise en bout de longueur normale à 3 dents, diamètre de 12 mm avec longueur de coupe de 25 mm, longueur totale de 73 mm et bords d'attaque chanfreinés à 45° de 0,2 mm, selon la norme DORMER avec une queue Weldon de 12 mm, carbure monobloc avec revêtement TiAlN, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement et le fraisage de rainures dans l'acier et l'acier moulé, la fonte et l'aluminium coulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S93312.0
GradeTiAlN
Product Number5982794
Product FamilyS933

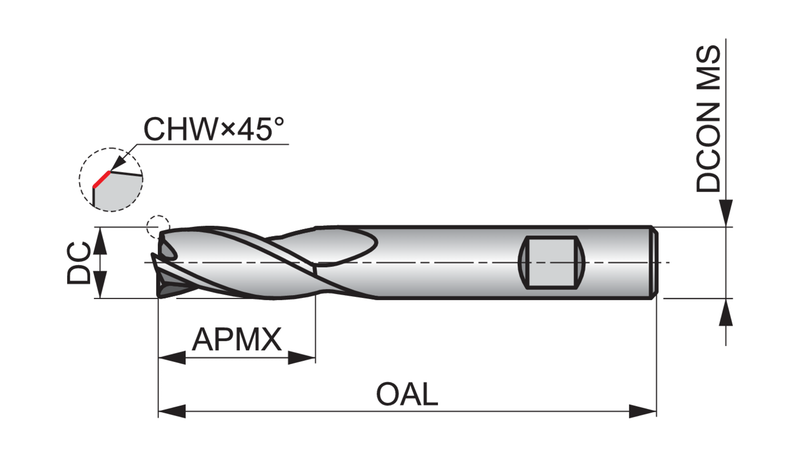

Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40164
EAN7320760040164
File Type Download
S93312.0 — Line Drawing PDF Download
