S9334.0
S9334.0
S9334.0
S9334.0

S9334.0

UGC DOR5982835
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.53 CAD - $36.53 CAD
$36.53 CAD
$36.53 CAD - $36.53 CAD
$36.53 CAD

Vendu en lots de : 1

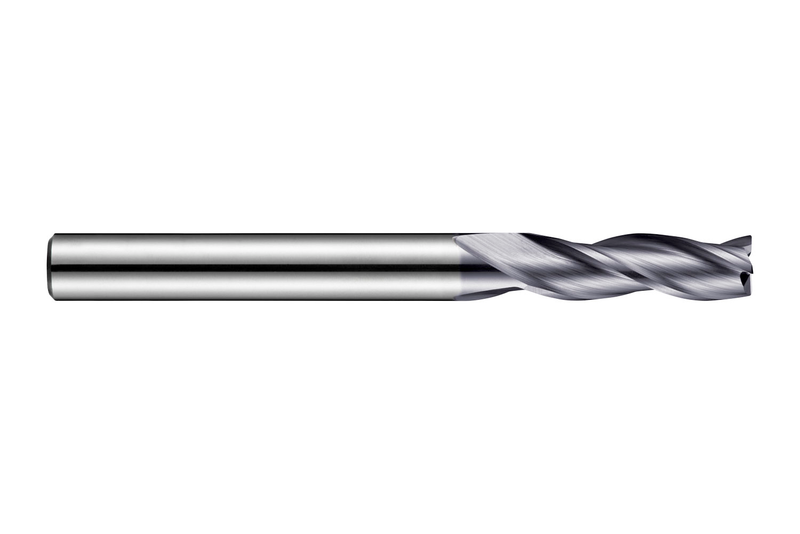

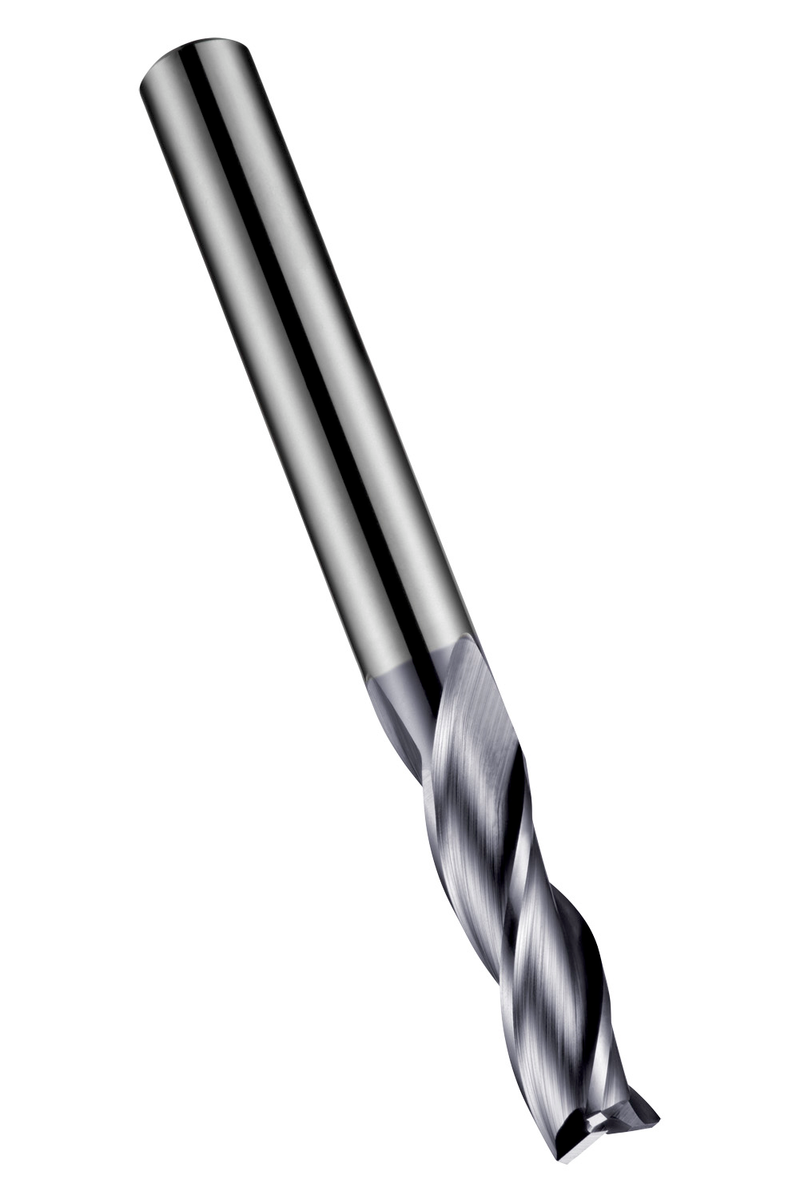

Fraise en bout de longueur standard à 3 dents, diamètre 4mm, longueur de coupe 14mm, longueur totale 50mm et chanfrein d'angle de 0,08mm à 45°, selon la norme DORMER avec queue Weldon de 4mm, carbure monobloc avec revêtement TiAlN, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, la fonte et l'aluminium moulé, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9334.0
GradeTiAlN
Product Number5982835
Product FamilyS933
Insert Geometry
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm

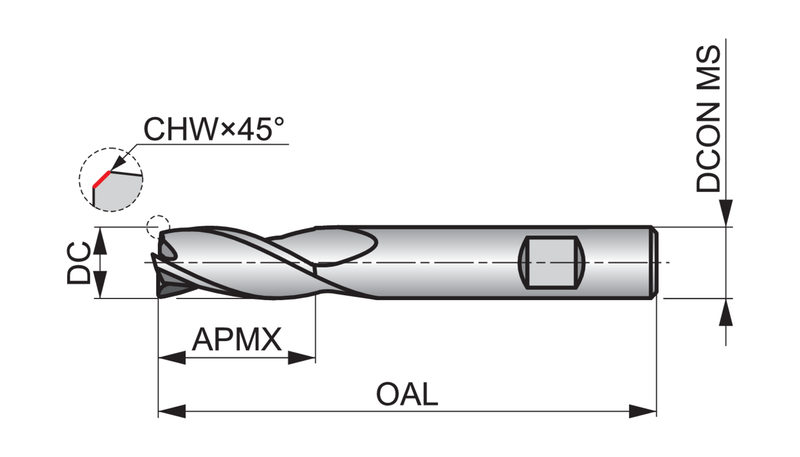

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm

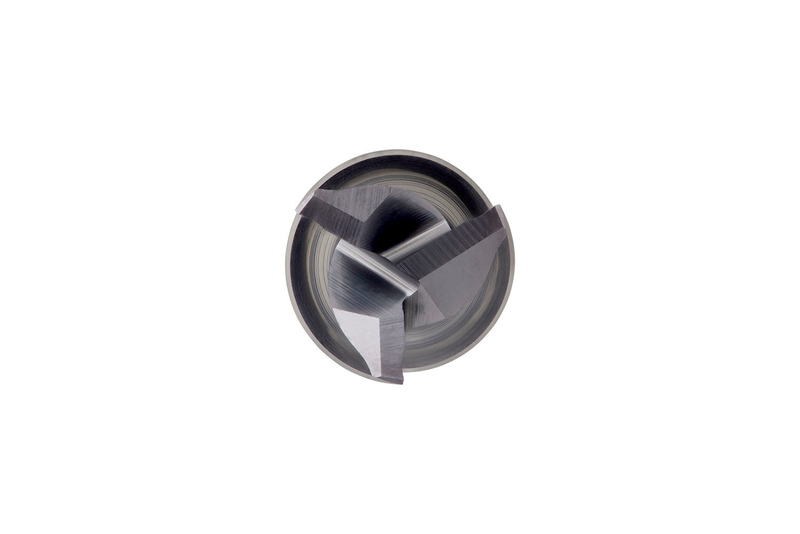

Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40096
EAN7320760040096
File Type Download
S9334.0 — Line Drawing PDF Download
