UGC DOR5982840
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.37 CAD - $37.37 CAD
$37.37 CAD
$37.37 CAD - $37.37 CAD
$37.37 CAD

Vendu en lots de : 1

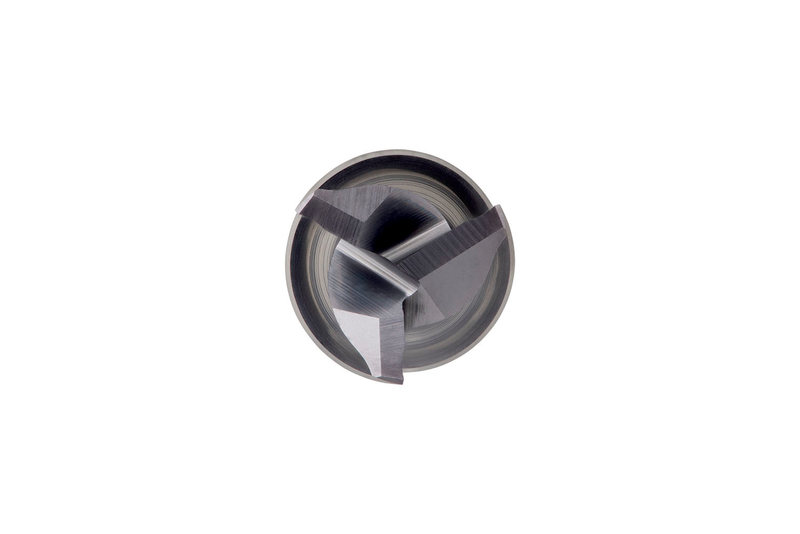

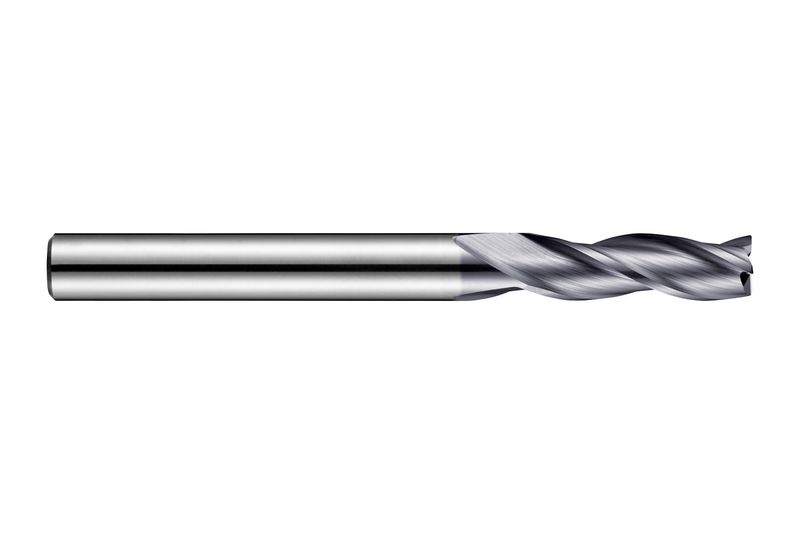

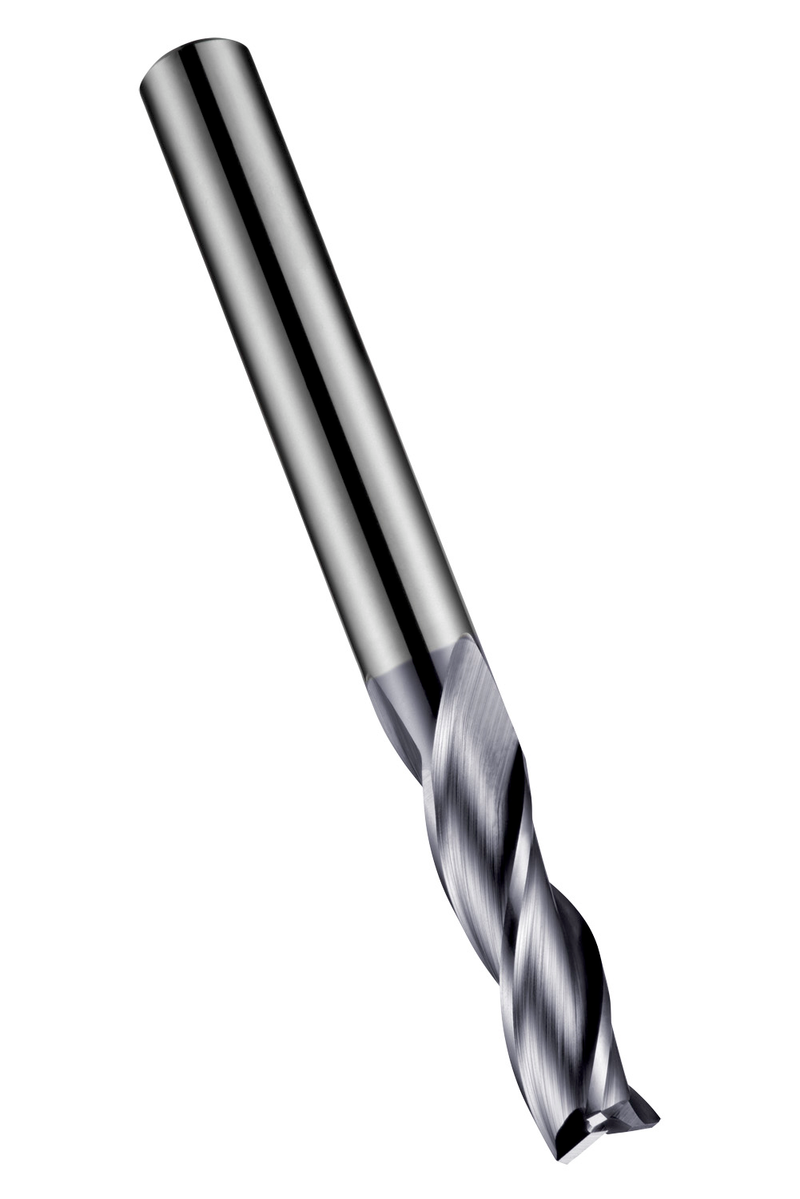

Fraise en bout de longueur standard, 3 dents, diamètre 5 mm, longueur de coupe 16 mm, longueur totale 50 mm et chanfrein d'angle de 0,13 mm à 45°, selon la norme DORMER, avec queue Weldon de 5 mm, en carbure monobloc avec revêtement TiAlN, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulements et le fraisage de rainures dans l'acier et l'acier moulé, la fonte et l'aluminium moulé, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9335.0
GradeTiAlN
Product Number5982840
Product FamilyS933
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm

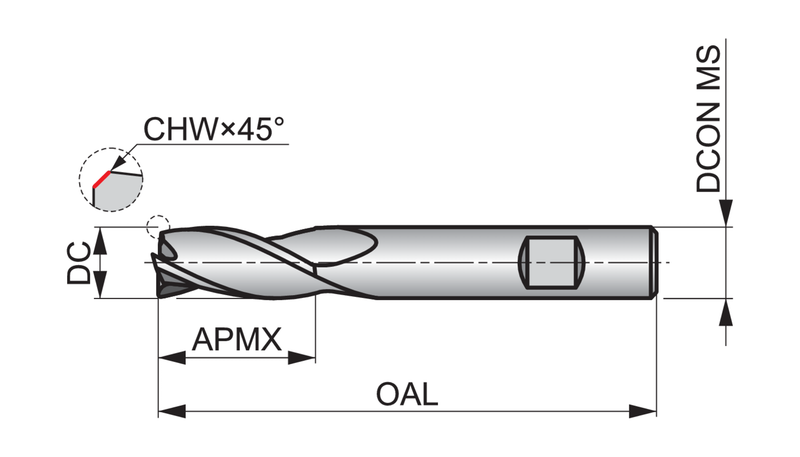

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40102
EAN7320760040102
File Type Download
S9335.0 — Line Drawing PDF Download
