S9339.0
S9339.0
S9339.0
S9339.0

S9339.0

UGC DOR5982860
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.57 CAD - $84.57 CAD
$84.57 CAD
$84.57 CAD - $84.57 CAD
$84.57 CAD

Vendu en lots de : 1

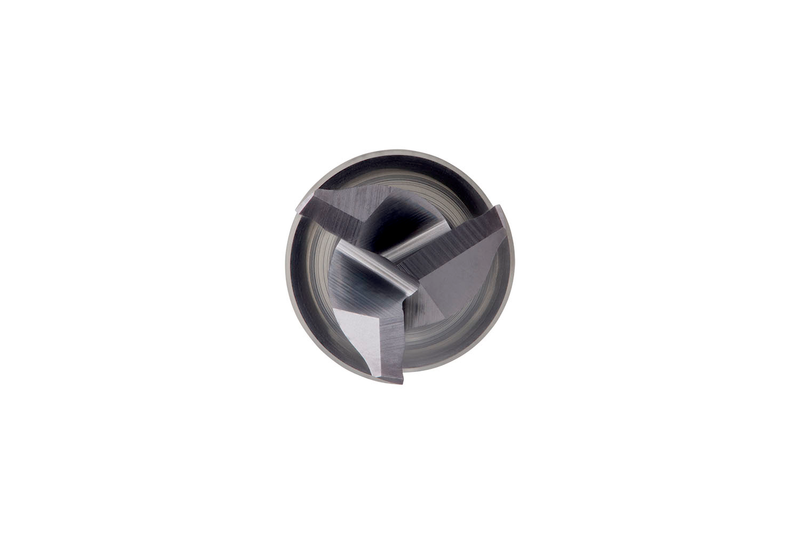

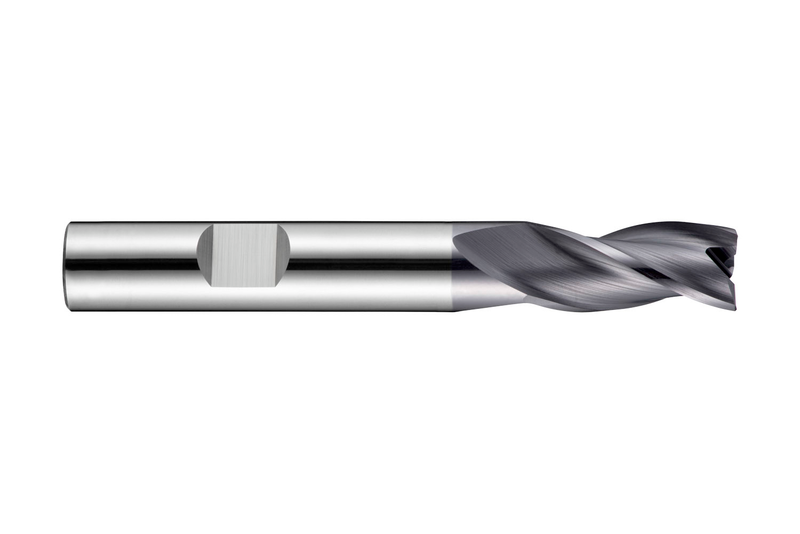

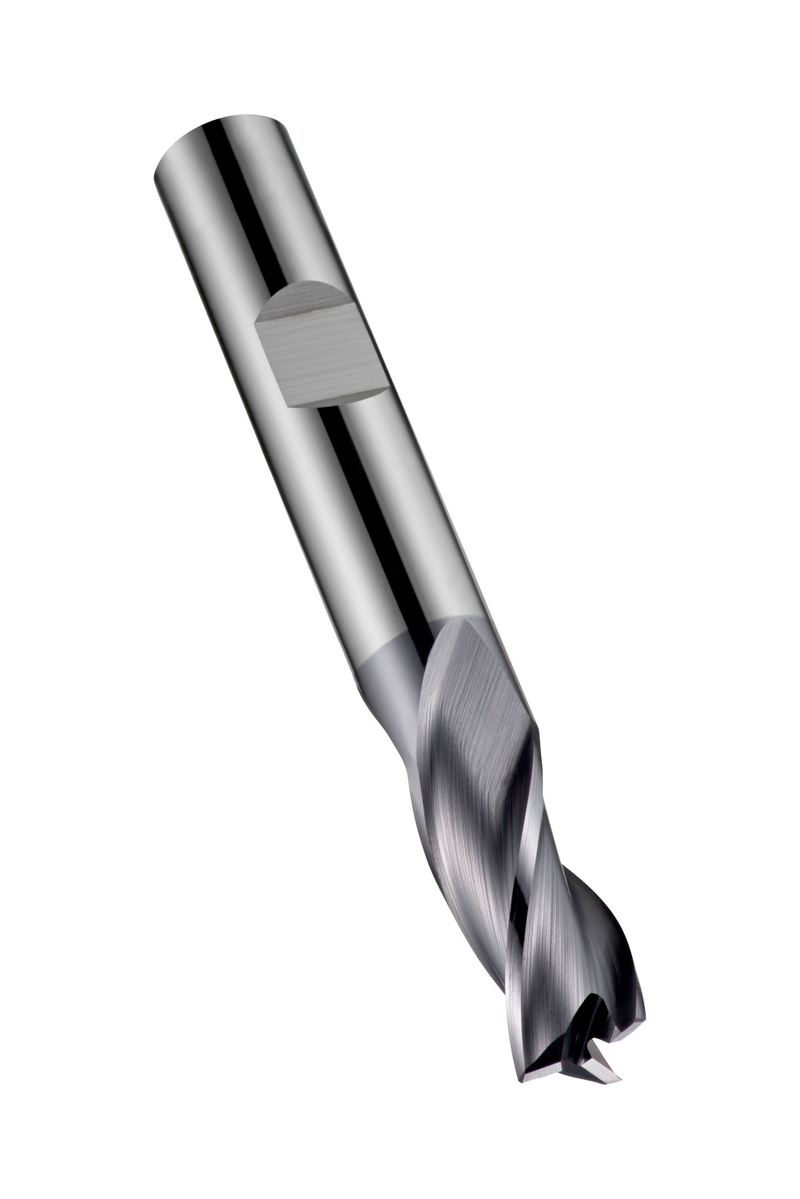

Fraise en bout longueur normale à 3 dents, diamètre 9mm avec longueur de coupe 21mm, longueur totale 72mm et chanfrein d'angle 45° de 0.13mm, selon la norme DORMER avec un queue Weldon 10mm, en carbure monobloc avec revêtement TiAlN, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9339.0
GradeTiAlN
Product Number5982860
Product FamilyS933
Insert Geometry
Depth of Cut Max — in (APMX)0.8268"
Depth of Cut Max — mm (APMX)21.0 mm

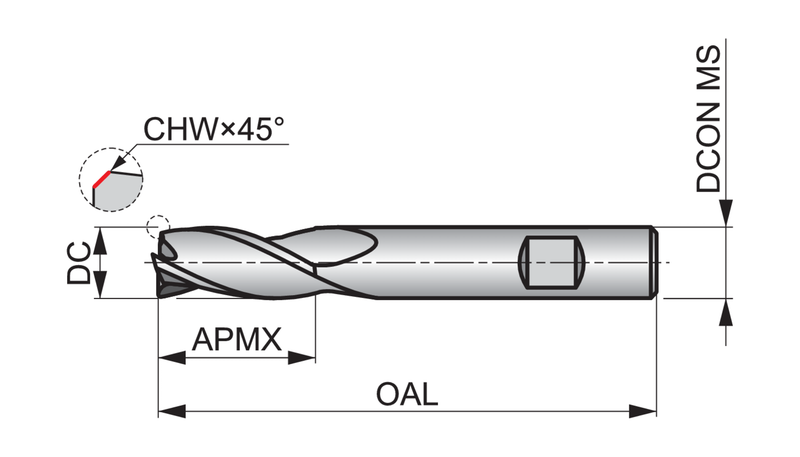

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40140
EAN7320760040140
File Type Download
S9339.0 — Line Drawing PDF Download
