UGC DOR5982864
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.66 CAD - $104.66 CAD
$104.66 CAD
$104.66 CAD - $104.66 CAD
$104.66 CAD

Vendu en lots de : 1

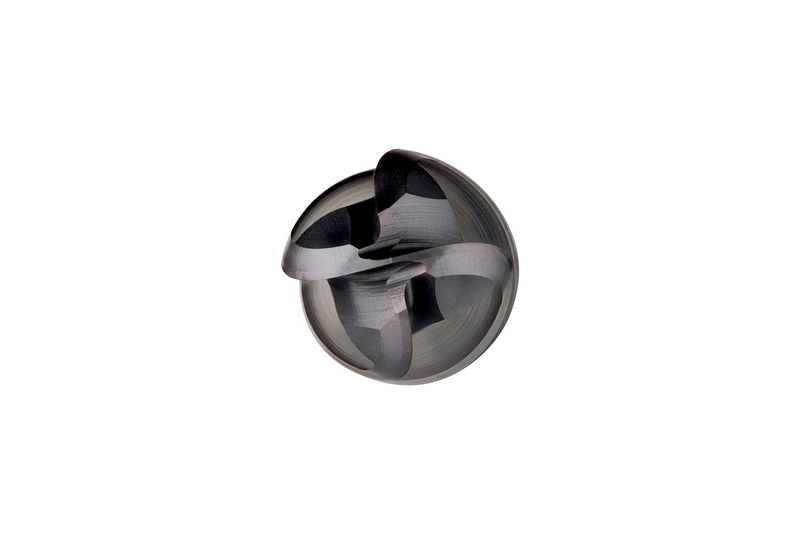

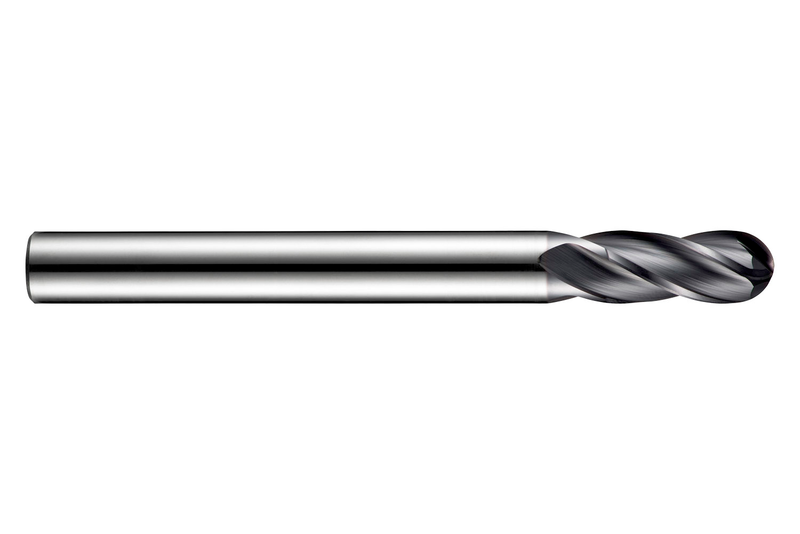

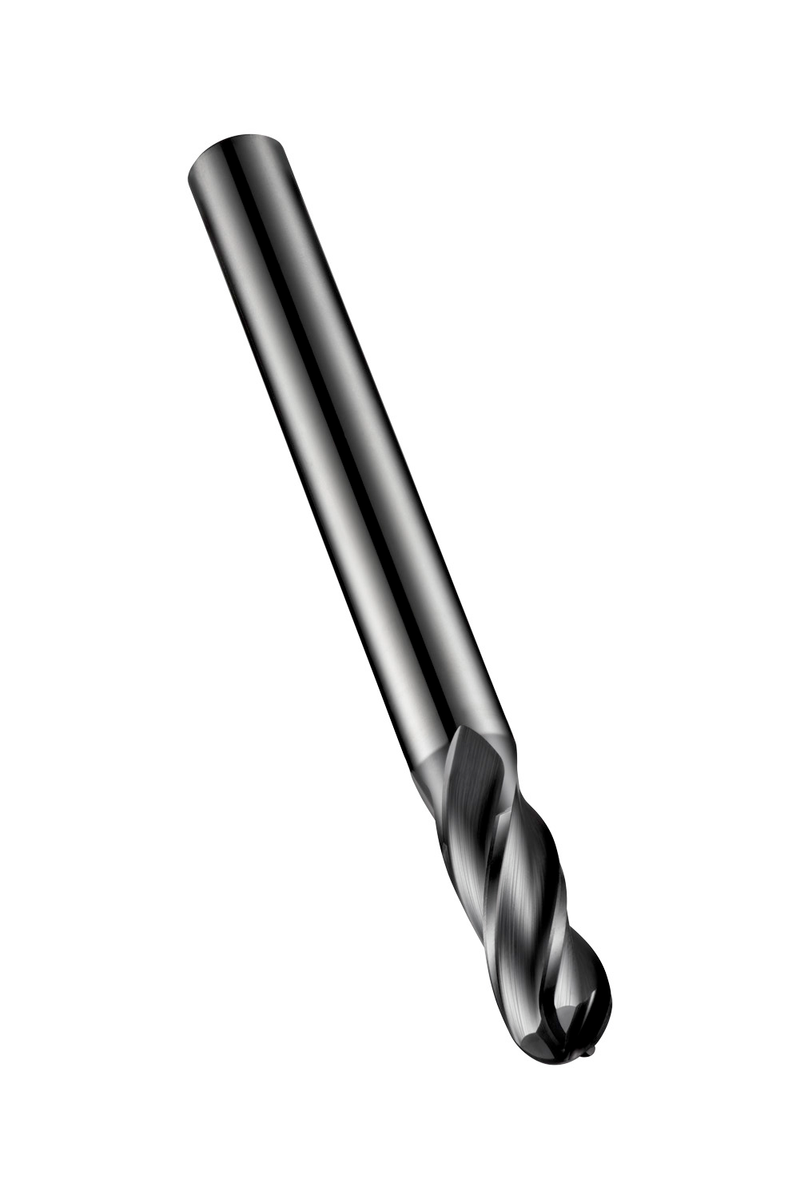

Fraise boule courte 4 dents, diamètre 4 mm avec longueur de coupe 11 mm, longueur totale 80 mm et rayon de profil complet 2 mm, selon la norme DORMER avec une queue cylindrique 6 mm, en carbure monobloc avec revêtement X-CEED, hélice 30° et angle de dépouille 10° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5114.0
GradeX-CEED
Product Number5982864
Product FamilyS511

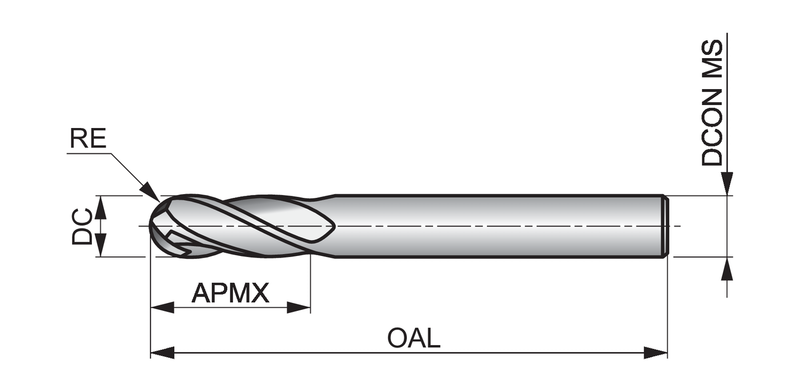

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number121016
EAN7320760121016
File Type Download
S5114.0 — Line Drawing PDF Download
