UGC DOR5982869
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.77 CAD - $106.77 CAD
$106.77 CAD
$106.77 CAD - $106.77 CAD
$106.77 CAD

Vendu en lots de : 1

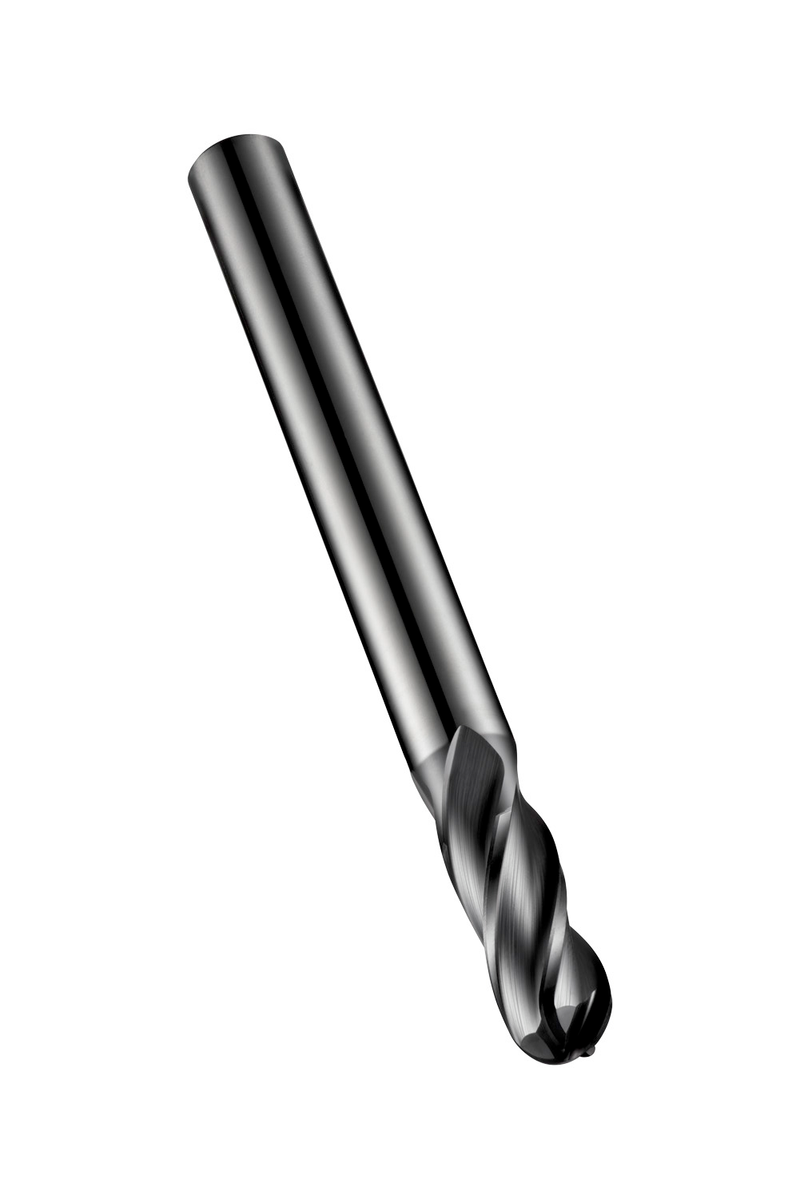

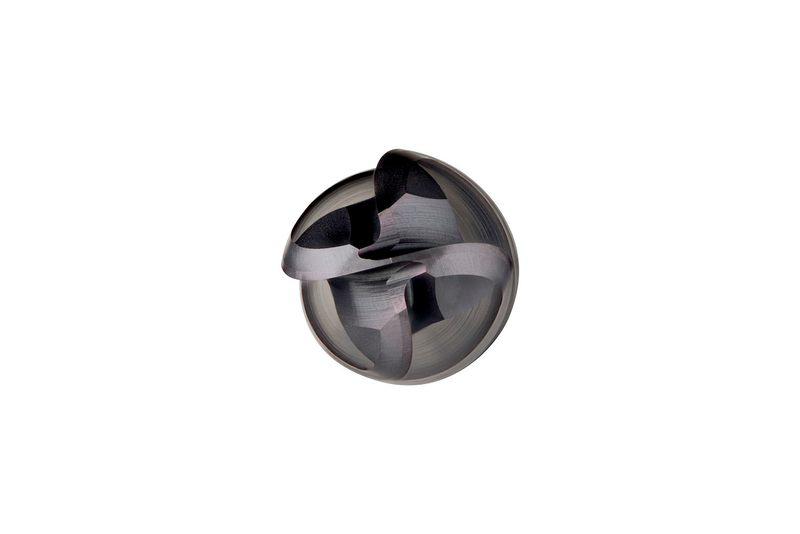

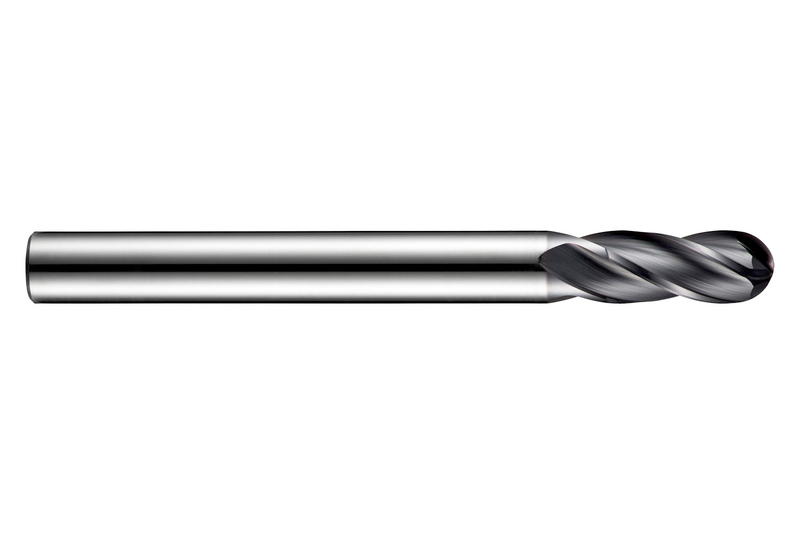

Fraise à l'extrémité sphérique série courte avec 4 cannelures, diamètre de 5 mm et longueur de coupe de 13 mm, longueur totale de 80 mm et rayon de profil complet de 2,5 mm, selon la norme DORMER avec une tige cylindrique de 6 mm, carbure monobloc avec revêtement X-CEED, hélice de 30° et angle de dégagement de 10° pour le copiage dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5115.0
GradeX-CEED
Product Number5982869
Product FamilyS511

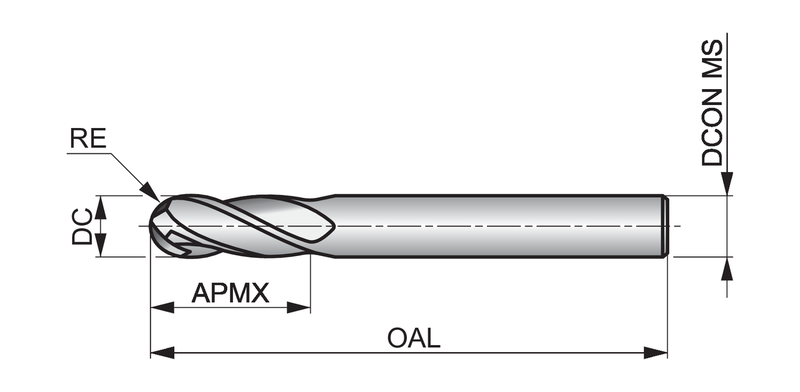

Insert Geometry
Corner Radius — in (RE)0.0984"
Corner Radius — mm (RE)2.5 mm
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number121023
EAN7320760121023
File Type Download
S5115.0 — Line Drawing PDF Download
