UGC DOR5982871
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$149.06 CAD - $149.06 CAD
$149.06 CAD
$149.06 CAD - $149.06 CAD
$149.06 CAD

Vendu en lots de : 1

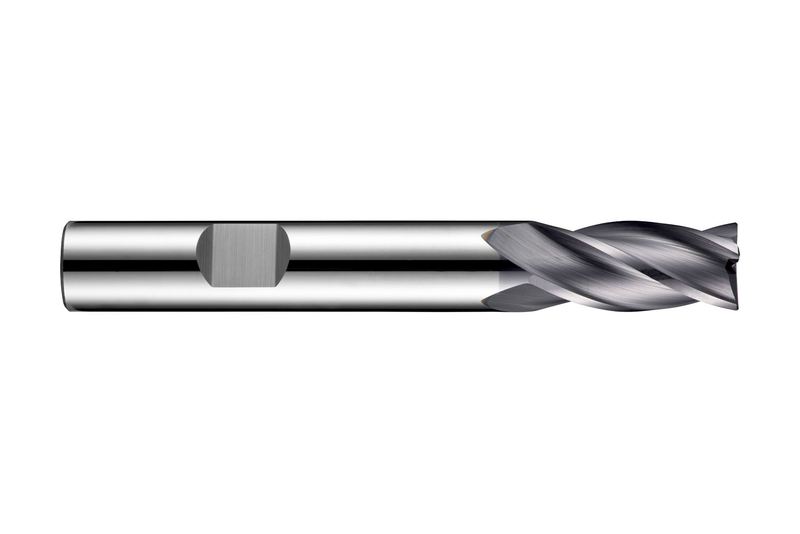

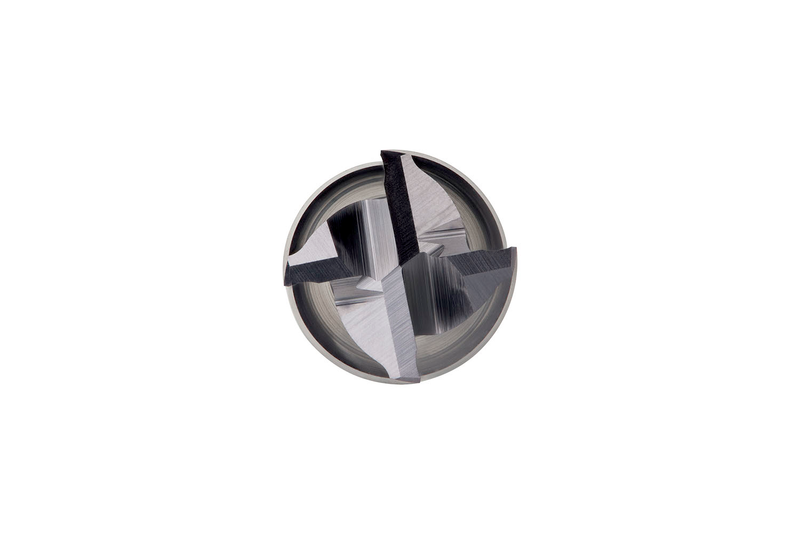

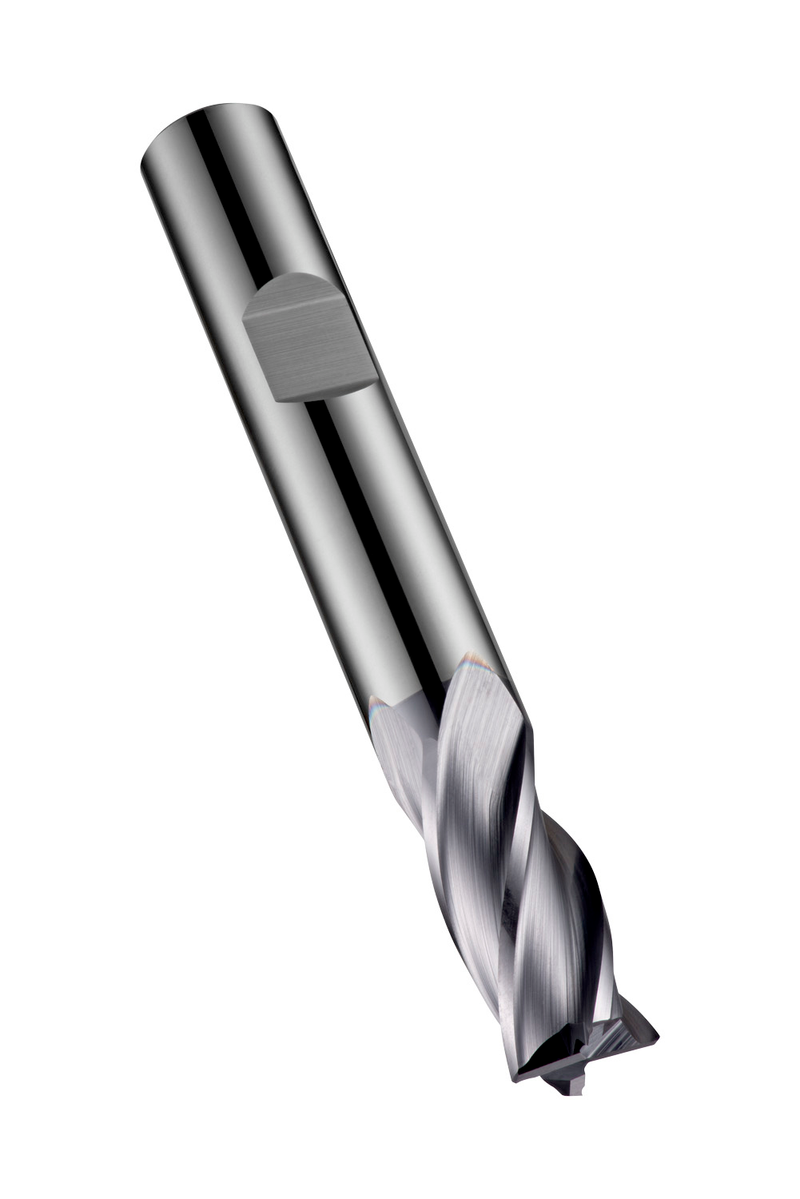

Fraise en bout longueur normale, 4 dents, diamètre 14 mm avec une longueur de coupe de 30 mm, longueur totale de 83 mm et bords chanfreinés à 45° de 0,2 mm, selon la norme DORMER avec une queue Weldon de 14 mm, carbure monobloc avec revêtement TiAlN, hélice de 30° et angle de dépouille de 12° pour le surfaçage en acier et acier moulé, en fonte et en aluminium moulé et en cuivre ou en alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S94414.0
GradeTiAlN
Product Number5982871
Product FamilyS944

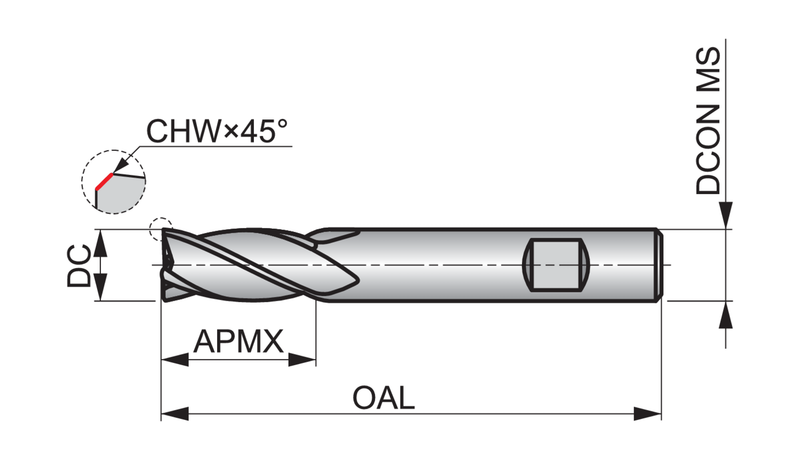

Insert Geometry
Depth of Cut Max — in (APMX)1.1811"
Depth of Cut Max — mm (APMX)30.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40324
EAN7320760040324
File Type Download
S94414.0 — Line Drawing PDF Download
