UGC DOR5982873
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.77 CAD - $106.77 CAD
$106.77 CAD
$106.77 CAD - $106.77 CAD
$106.77 CAD

Vendu en lots de : 1

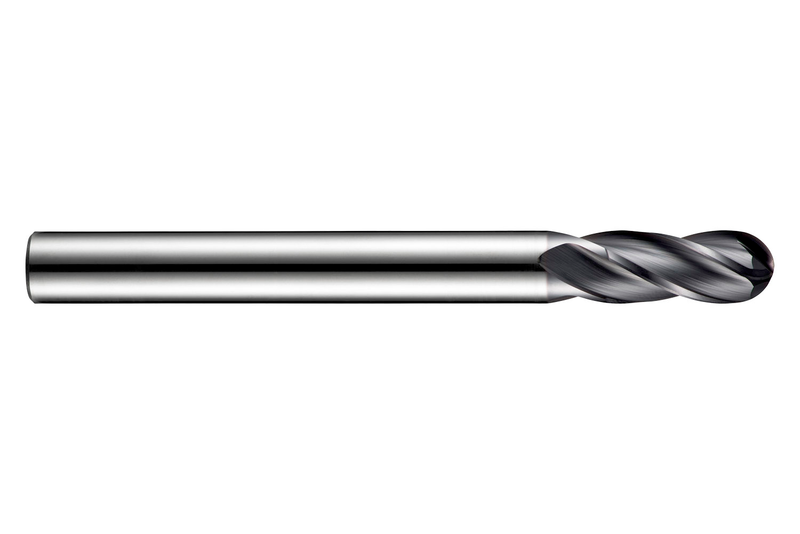

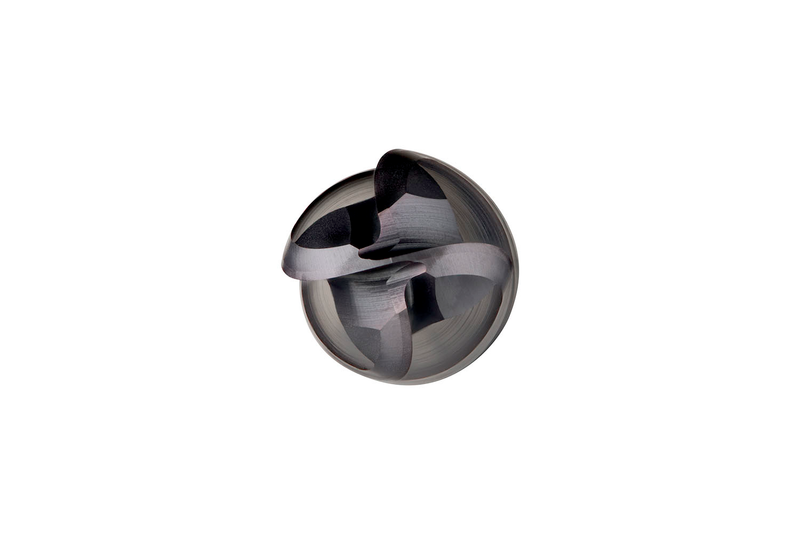

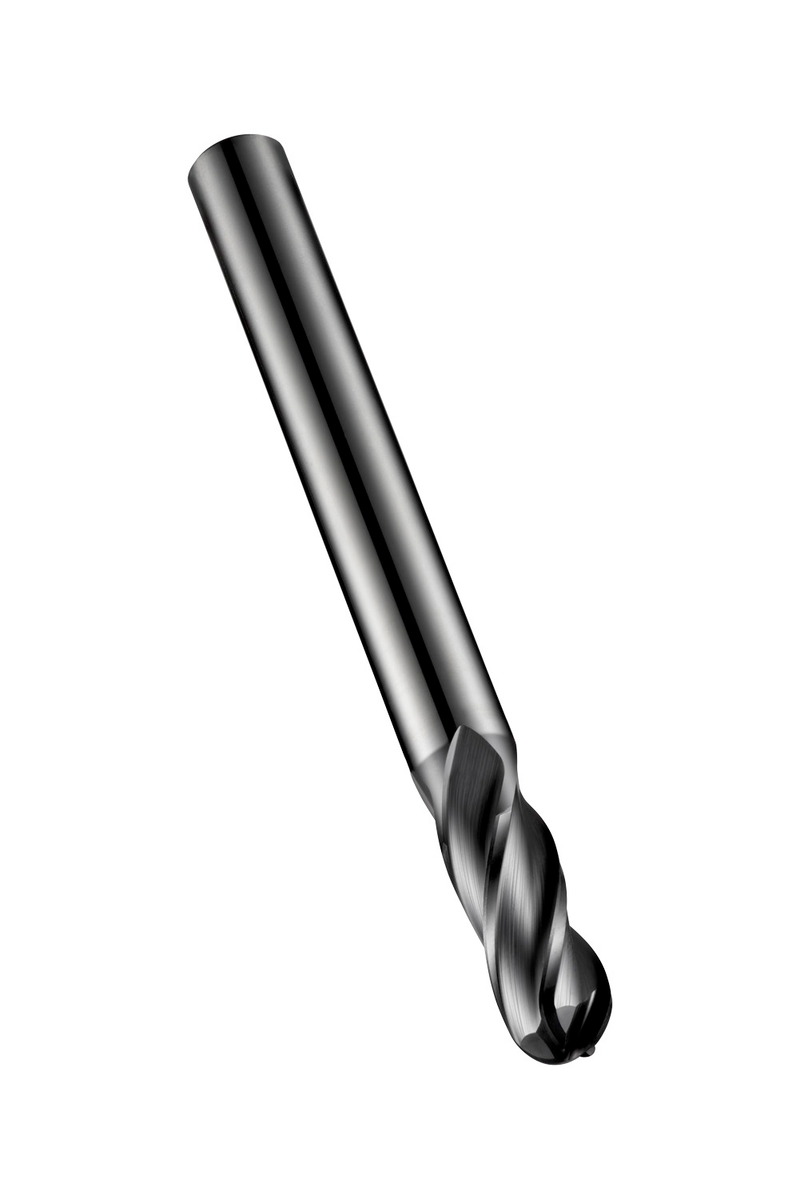

Fraise boule courte 4 dents, diamètre 6mm, longueur de coupe 13mm, longueur totale 80mm et rayon de profil plein 3mm, selon la norme DORMER, avec queue cylindrique 6mm, carbure monobloc avec revêtement X-CEED, hélice 30° et angle de dépouille 10° pour le copiage dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5116.0
GradeX-CEED
Product Number5982873
Product FamilyS511

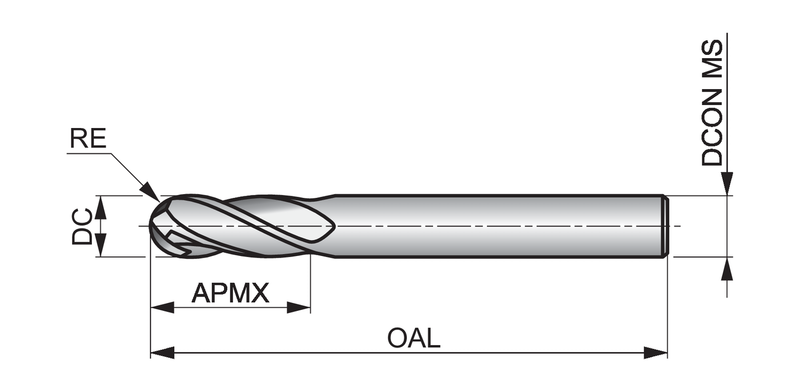

Insert Geometry
Corner Radius — in (RE)0.1181"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number121030
EAN7320760121030
File Type Download
S5116.0 — Line Drawing PDF Download
