UGC DOR5982876
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$194.51 CAD - $194.51 CAD
$194.51 CAD
$194.51 CAD - $194.51 CAD
$194.51 CAD

Vendu en lots de : 1

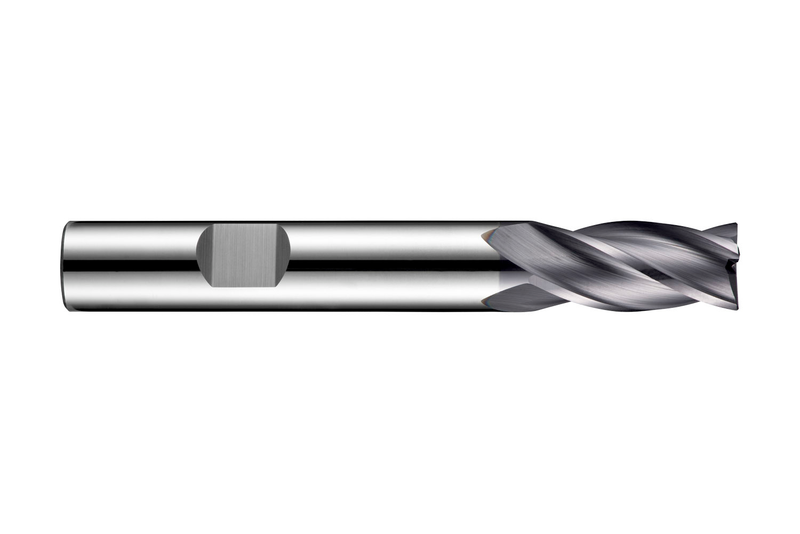

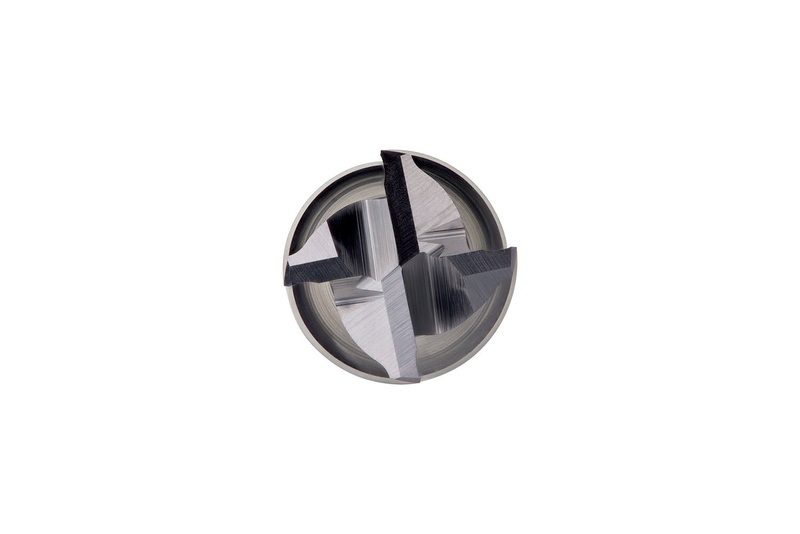

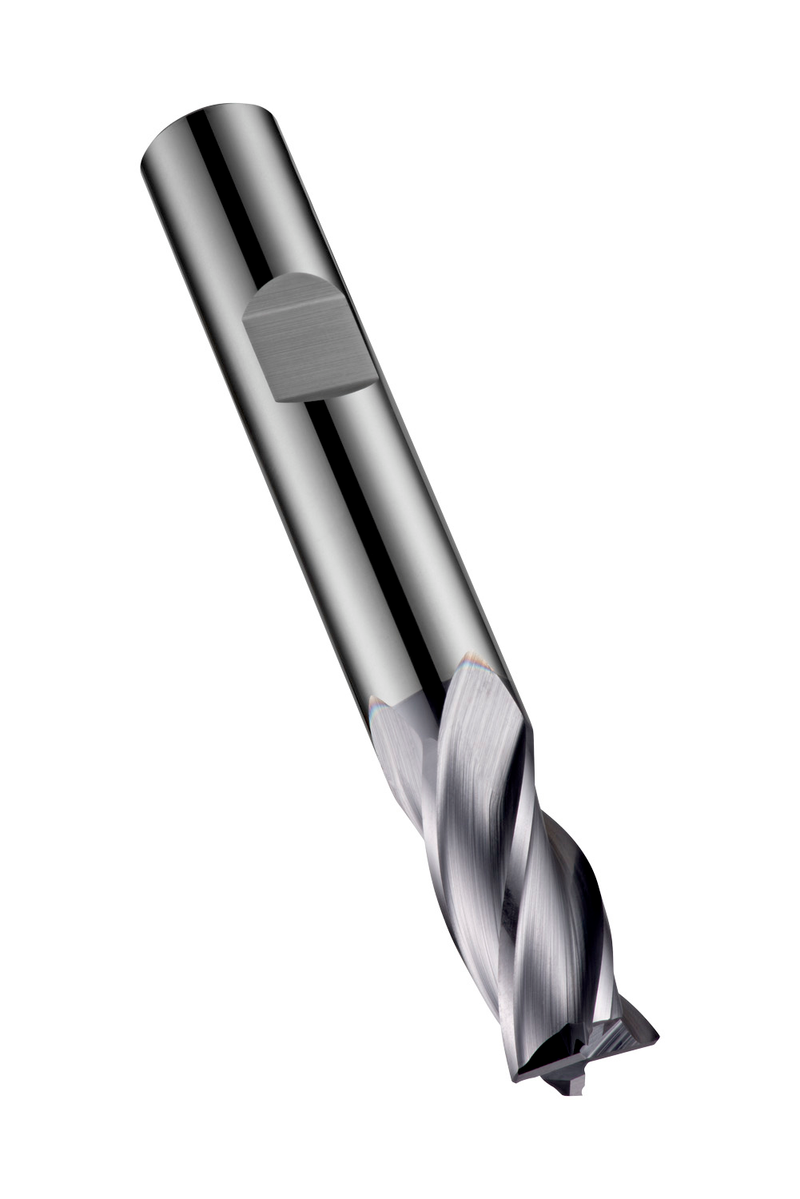

Fraise en bout de longueur normale à 4 dents, diamètre 16mm avec 32mm de longueur de coupe, longueur totale 92mm et chanfrein d'angle de 0.2mm à 45°, selon la norme DORMER avec une queue Weldon de 16mm, carbure monobloc avec revêtement TiAlN, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement dans l'acier et l'acier moulé, la fonte et l'aluminium moulé ou le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S94416.0
GradeTiAlN
Product Number5982876
Product FamilyS944

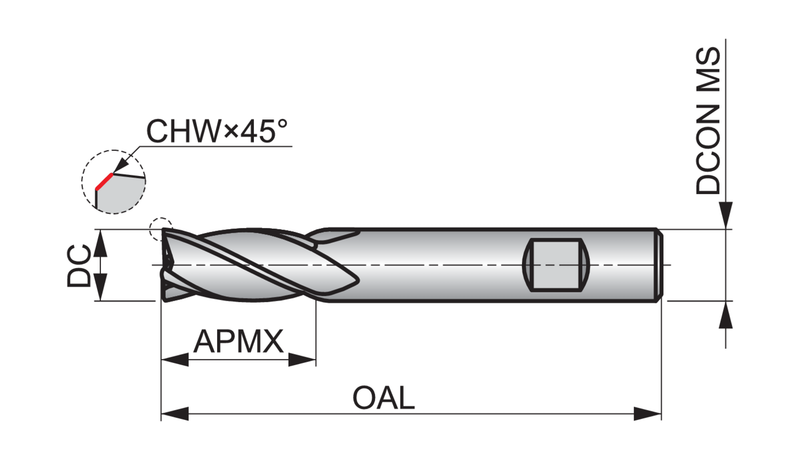

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40331
EAN7320760040331
File Type Download
S94416.0 — Line Drawing PDF Download
