UGC DOR5982949
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.19 CAD - $105.19 CAD
$105.19 CAD
$105.19 CAD - $105.19 CAD
$105.19 CAD

Vendu en lots de : 1

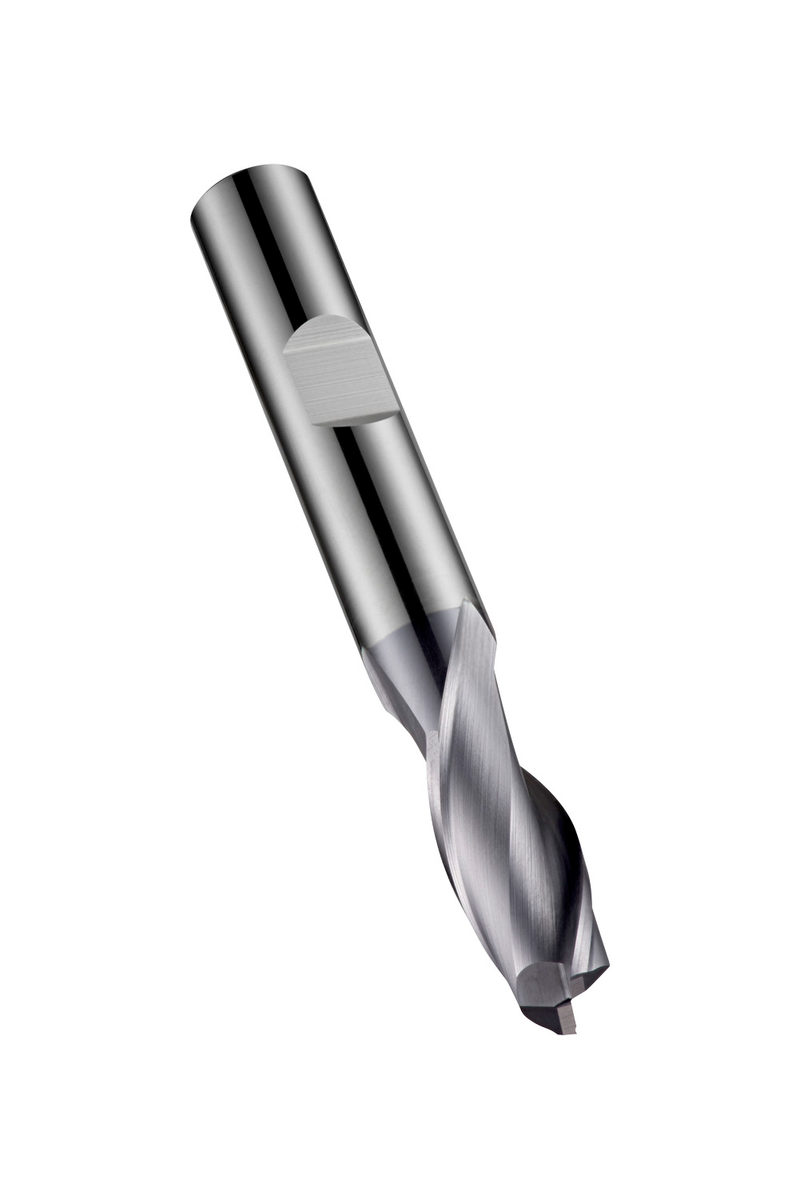

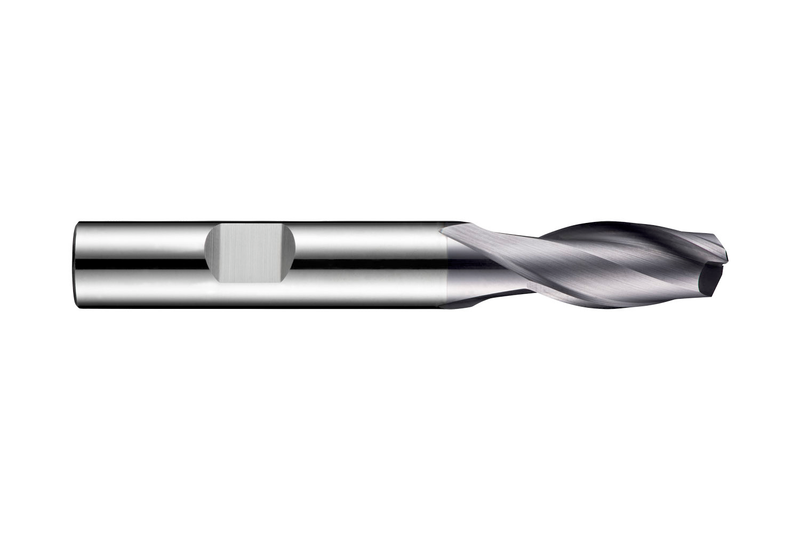

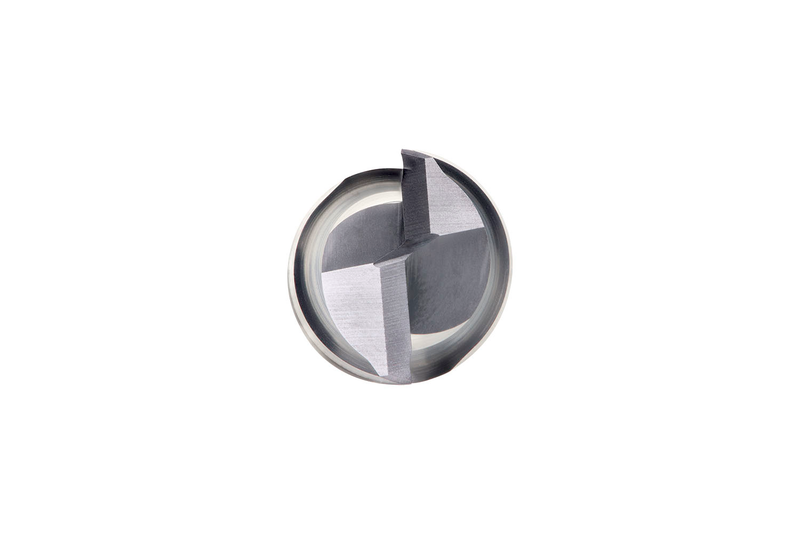

Fraise en bout longueur normale, 2 dents, diamètre 12mm avec une longueur de coupe de 25mm, une longueur totale de 73mm et des bords d'angle chanfreinés à 45° de 0,2mm, selon la norme DORMER avec une queue Weldon de 12mm, en carbure monobloc avec revêtement TiAlN, hélice de 30° et angle de dépouille de 12° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S92212.0
GradeTiAlN
Product Number5982949
Product FamilyS922
Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number40010
EAN7320760040010
File Type Download

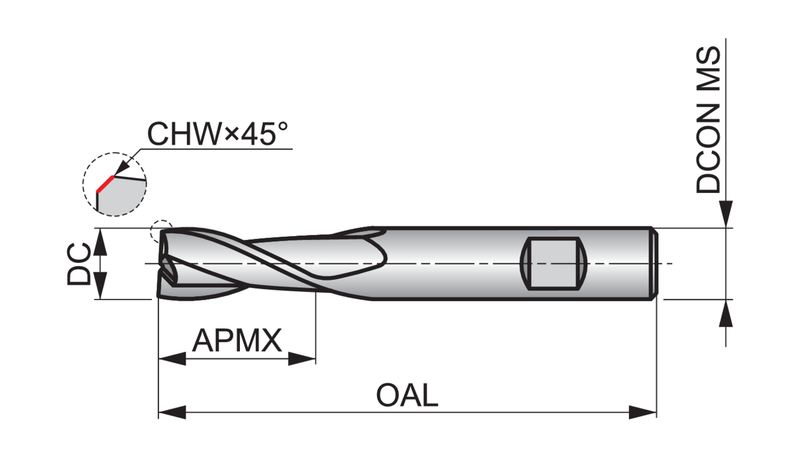

S92212.0 — Line Drawing PDF Download
