UGC DOR5983017
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.79 CAD - $208.79 CAD
$208.79 CAD
$208.79 CAD - $208.79 CAD
$208.79 CAD

Vendu en lots de : 1

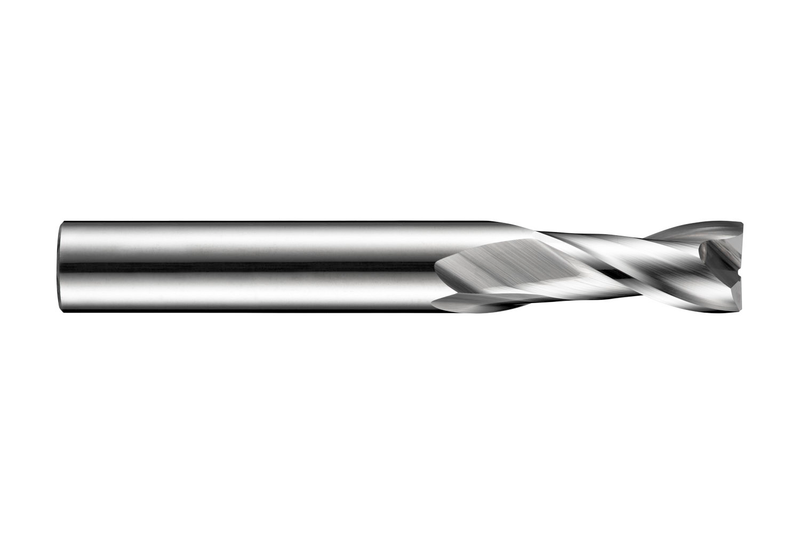

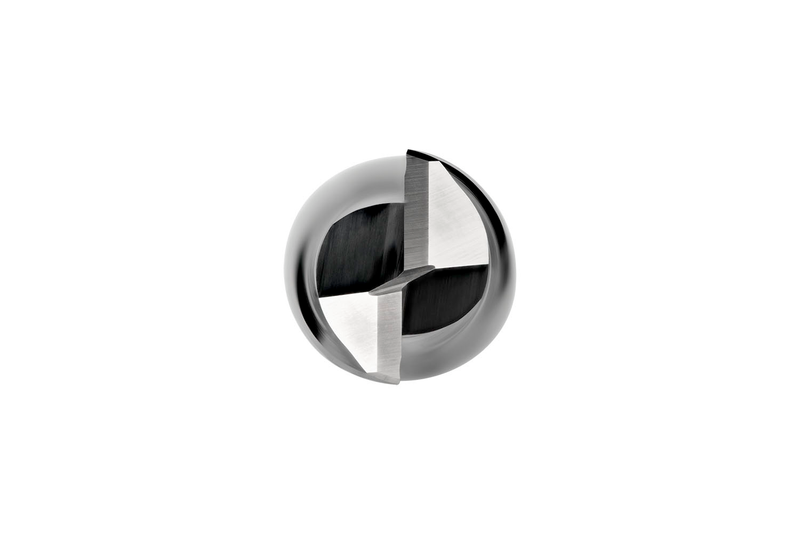

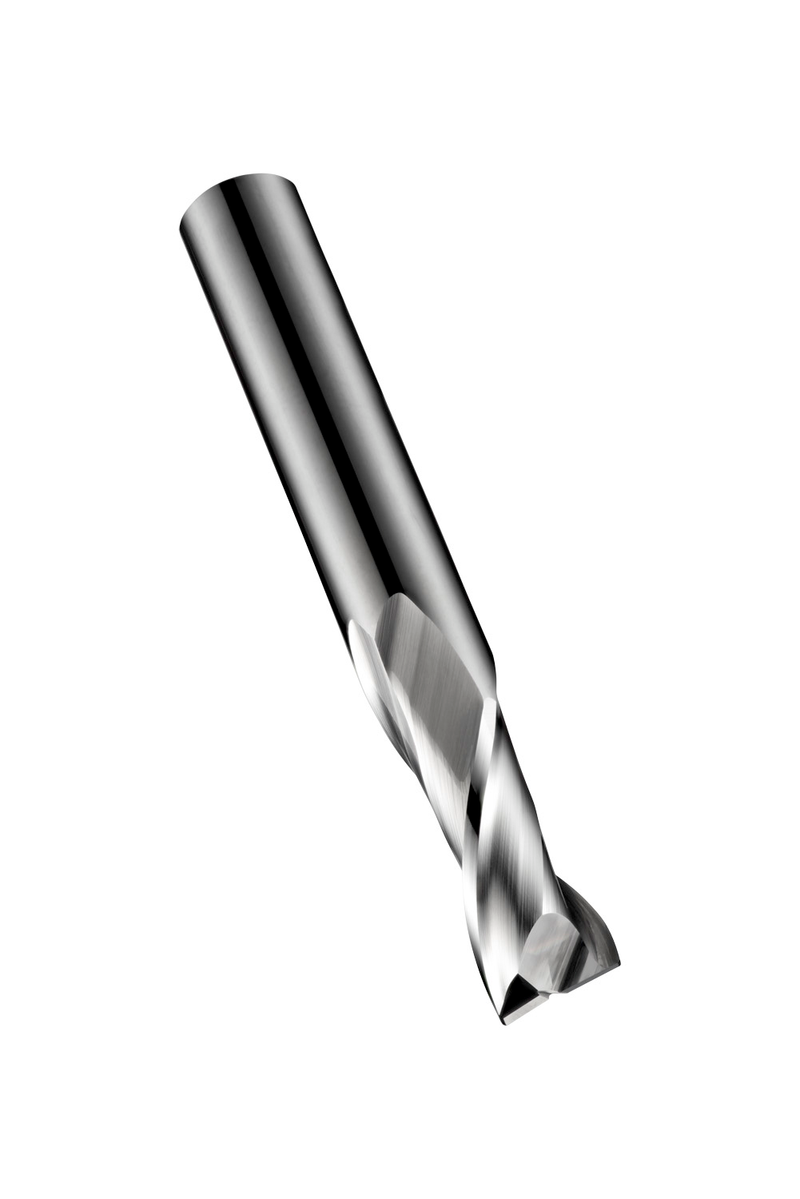

Fraise en bout de longueur normale à 2 arêtes, diamètre 20 mm avec longueur de coupe de 38 mm, longueur totale de 104 mm et bords chanfreinés de 0,3 mm à 45°, selon la norme DORMER avec une queue cylindrique de 20 mm, en carbure monobloc avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage de rainures dans les aciers de décolletage, aciers au carbone non alliés et alliés, fontes malléables, ductiles et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S90220.0
GradeLumineux
Product Number5983017
Product FamilyS902
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

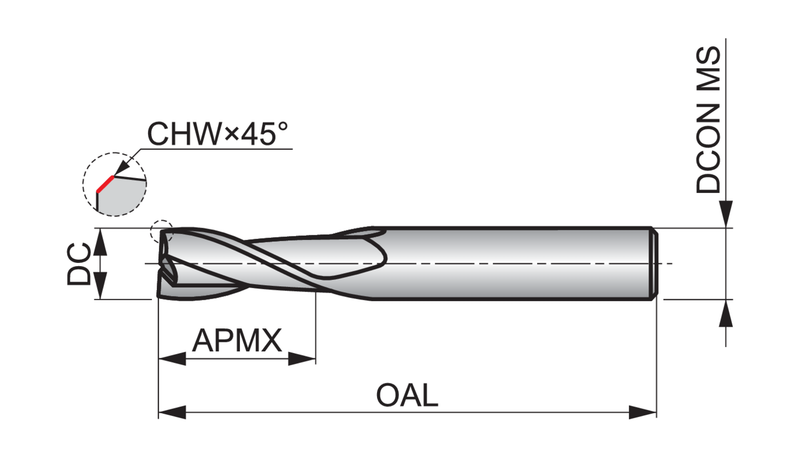

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number132777
EAN7320760132777
File Type Download
S90220.0 — Line Drawing PDF Download
