UGC DOR5983082
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.76 CAD - $28.76 CAD
$28.76 CAD
$28.76 CAD - $28.76 CAD
$28.76 CAD

Vendu en lots de : 1

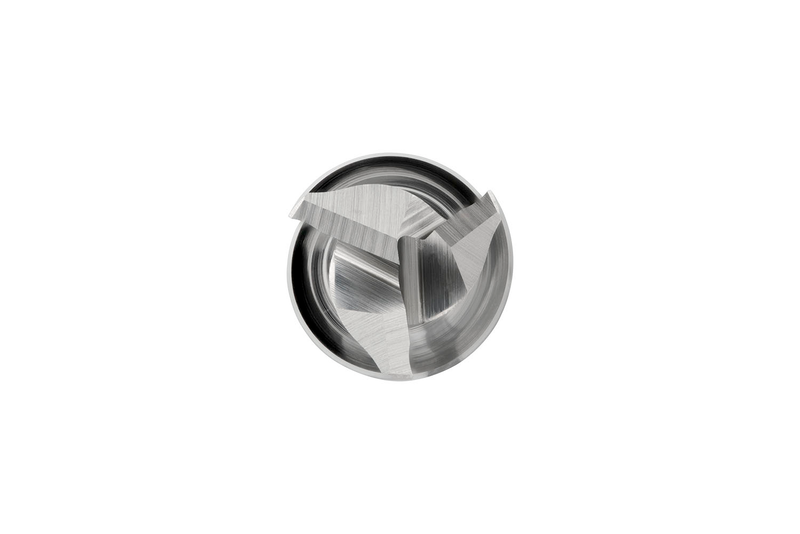

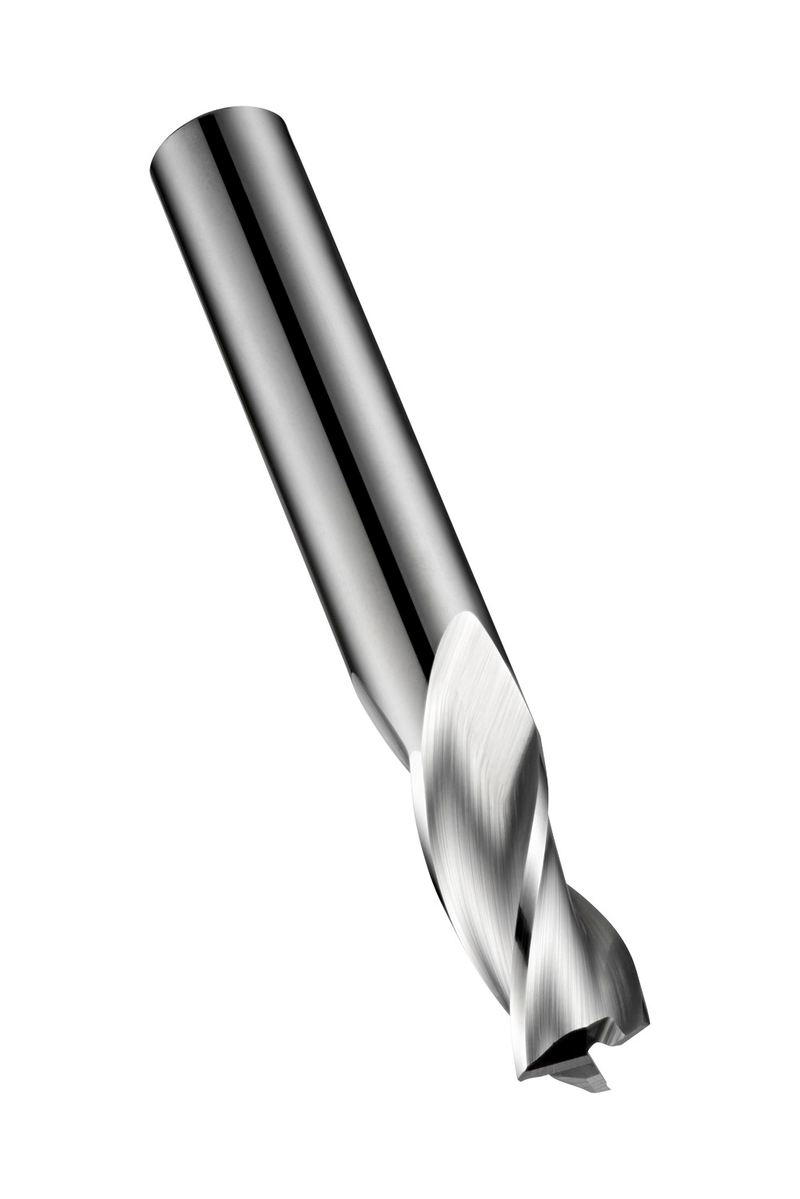

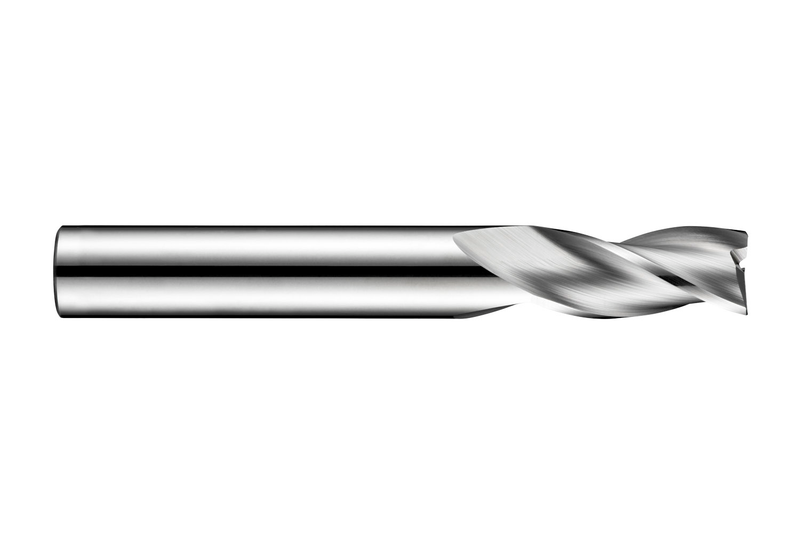

Fraise à queue de longueur normale, 3 arêtes, diamètre 2mm, longueur de coupe 6mm, longueur totale 38mm et bords chanfreinés à 45° de 0,08mm, selon la norme DORMER avec une queue cylindrique de 3mm, carbure monobloc finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements et de rainures dans les aciers de décolletage, aciers au carbone non alliés et alliés, fontes malléables, nodulaires et à graphite vermiculaire, et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9032.0
GradeLumineux
Product Number5983082
Product FamilyS903
Insert Geometry

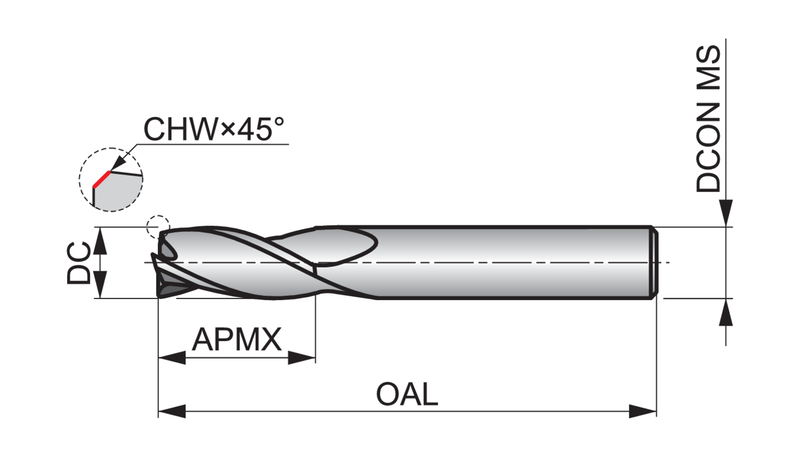

Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number132982
EAN7320760132982
File Type Download
S9032.0 — Line Drawing PDF Download
