UGC DOR5983091
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$213.01 CAD - $213.01 CAD
$213.01 CAD
$213.01 CAD - $213.01 CAD
$213.01 CAD

Vendu en lots de : 1

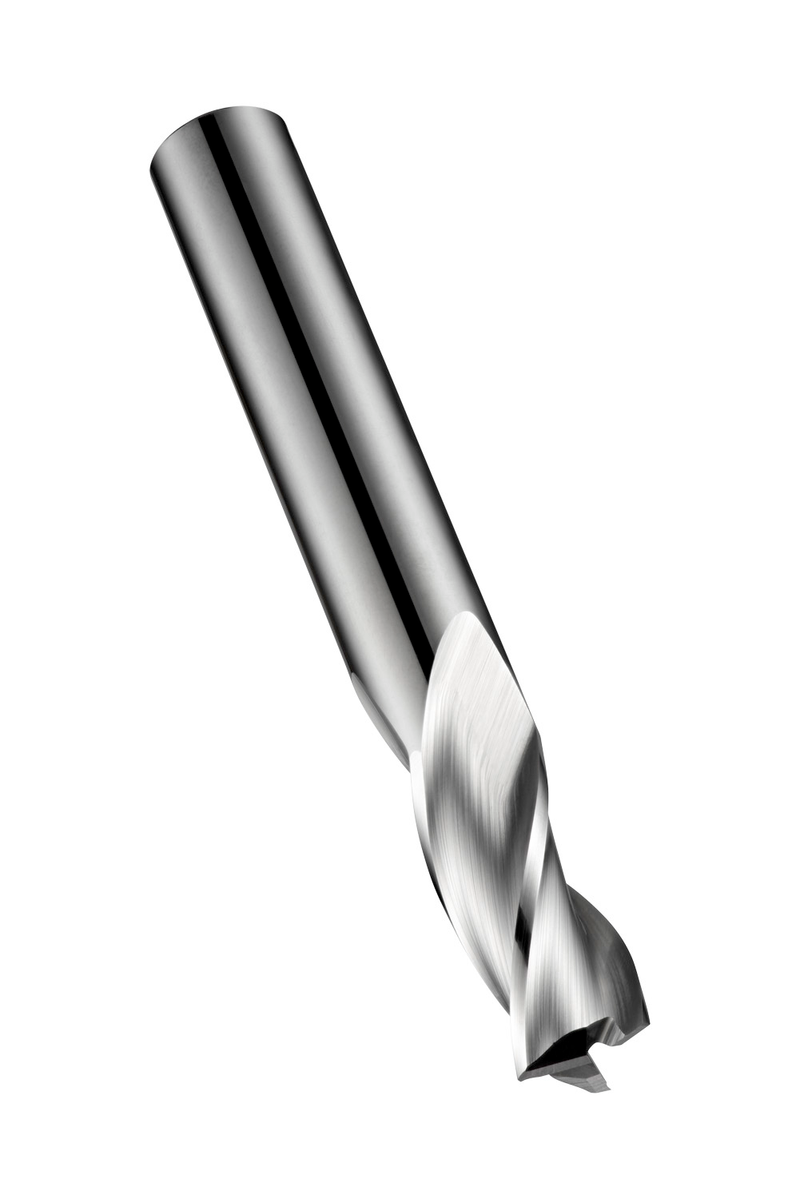

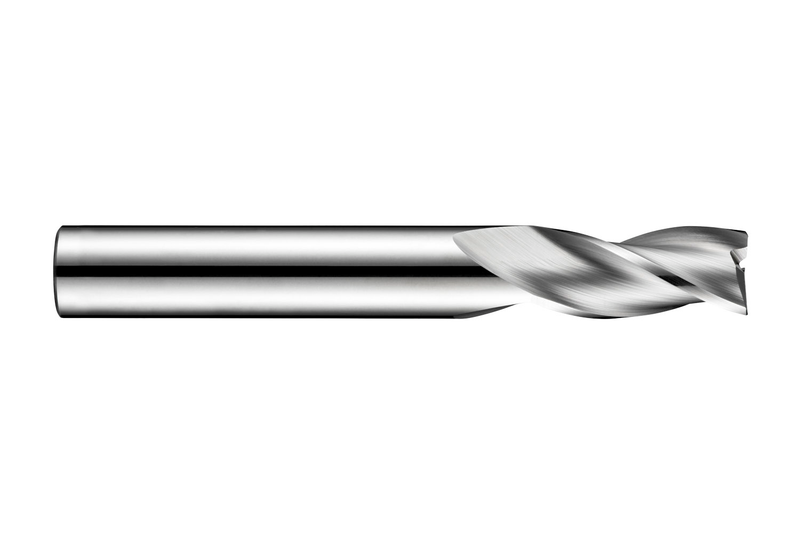

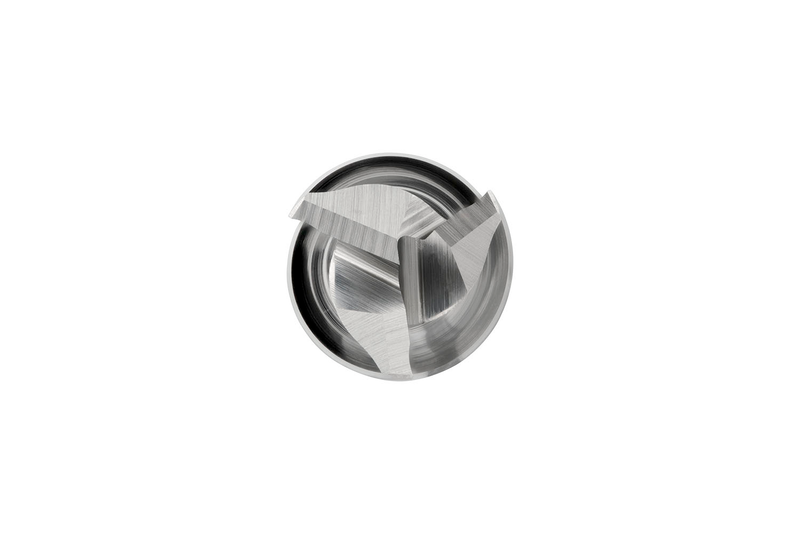

Fraise en bout de longueur standard à 3 dents, diamètre 20mm avec 38mm de longueur de coupe, 104mm de longueur totale et des bords d'angle chanfreinés à 45° de 0,3mm, selon la norme DORMER avec une queue cylindrique de 20mm, carbure monobloc avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le surfaçage et le fraisage de rainures dans l'acier de décolletage, l'acier au carbone et allié, la fonte malléable, ductile et à graphite compacté, et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S90320.0
GradeLumineux
Product Number5983091
Product FamilyS903

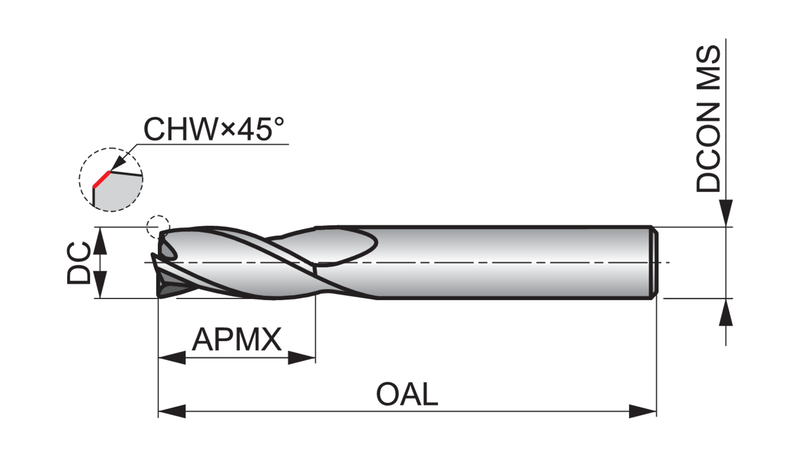

Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number133002
EAN7320760133002
File Type Download
S90320.0 — Line Drawing PDF Download
