UGC DOR5983099
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.34 CAD - $31.34 CAD
$31.34 CAD
$31.34 CAD - $31.34 CAD
$31.34 CAD

Vendu en lots de : 1

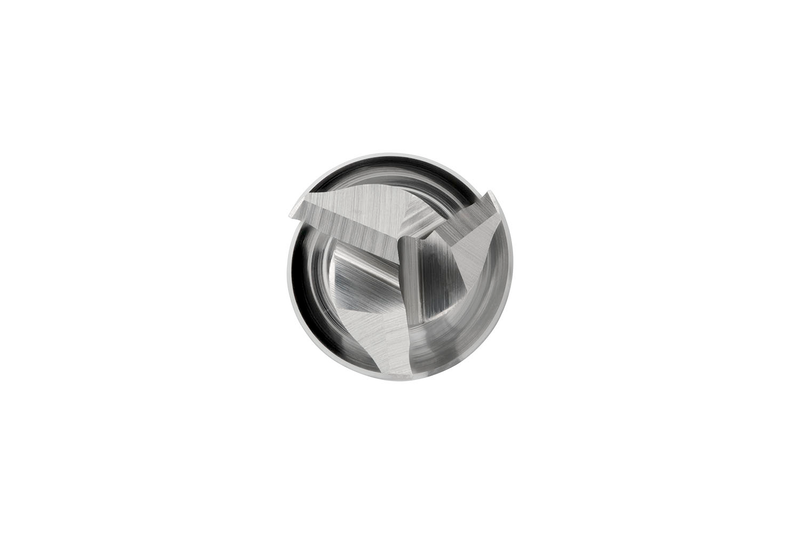

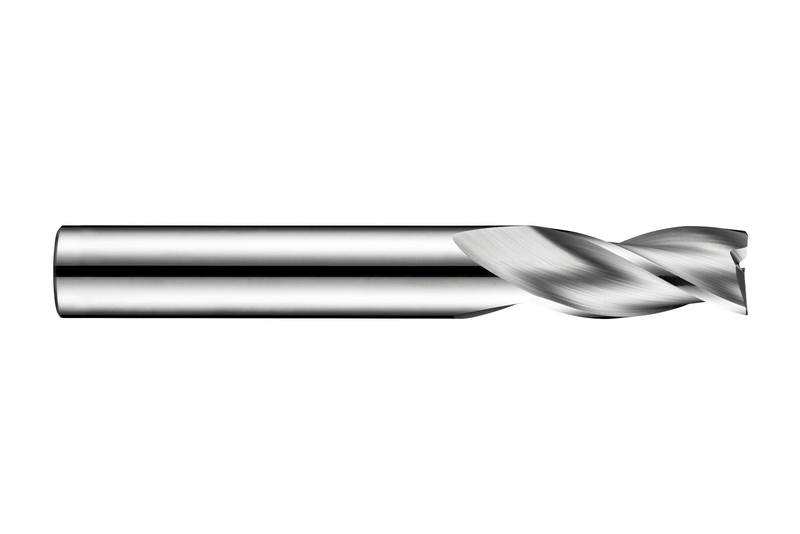

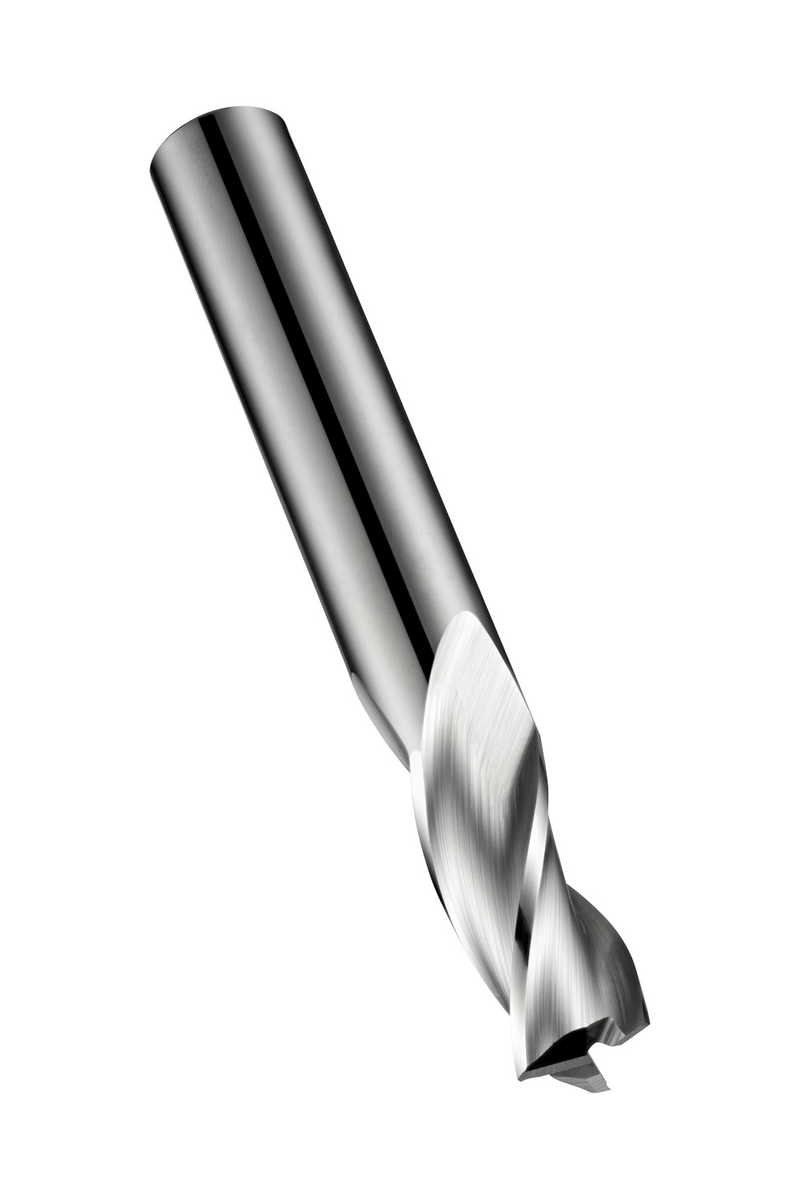

Fraise en bout de longueur normale à 3 dents, diamètre 4mm, longueur de coupe 14mm, longueur totale 50mm et chanfrein d'arête de 0,08mm à 45°, conforme à la norme DORMER, avec queue cylindrique de 4mm, carbure monobloc finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement et le fraisage de rainures dans les aciers de décolletage, les aciers au carbone non alliés et alliés, les fontes malléables, nodulaires et à graphite compacté, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9034.0
GradeLumineux
Product Number5983099
Product FamilyS903

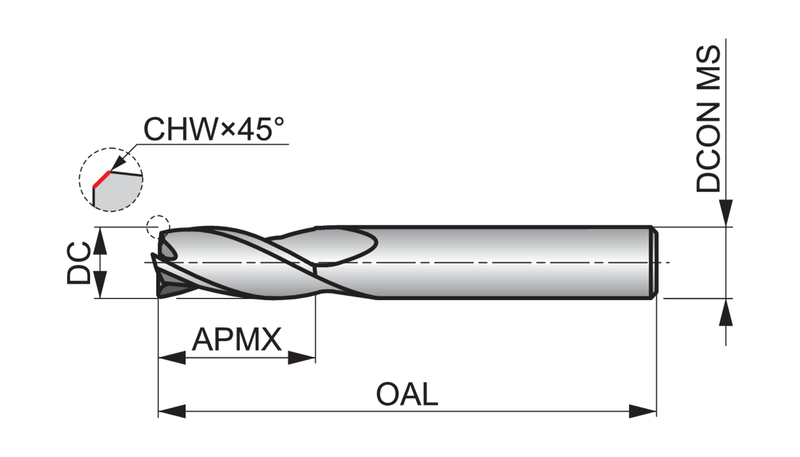

Insert Geometry
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number133026
EAN7320760133026
File Type Download
S9034.0 — Line Drawing PDF Download
