UGC DOR5983122
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$181.83 CAD - $181.83 CAD
$181.83 CAD
$181.83 CAD - $181.83 CAD
$181.83 CAD

Vendu en lots de : 1

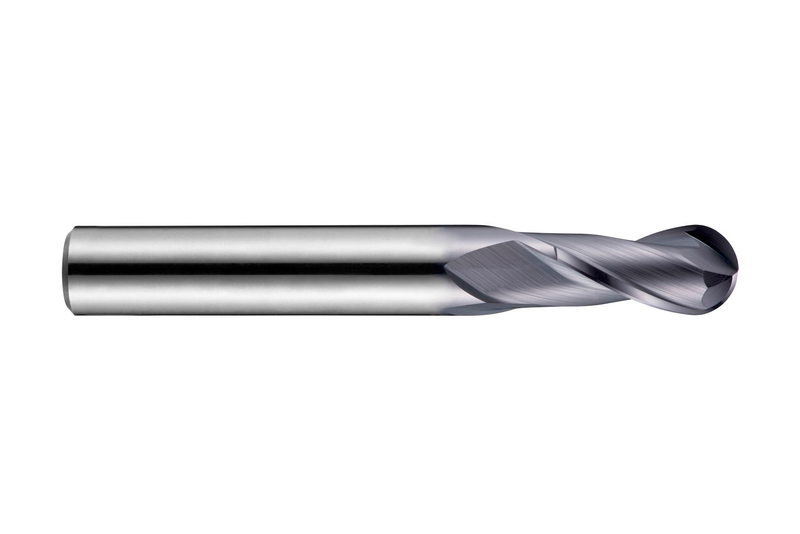

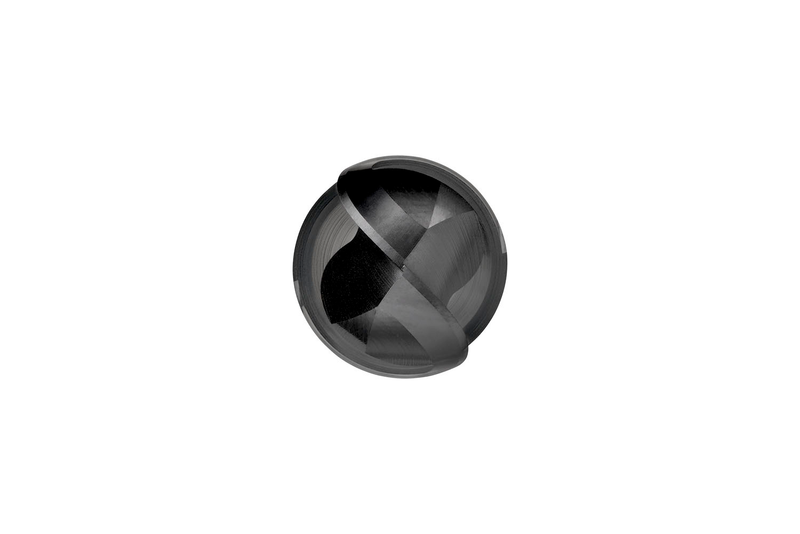

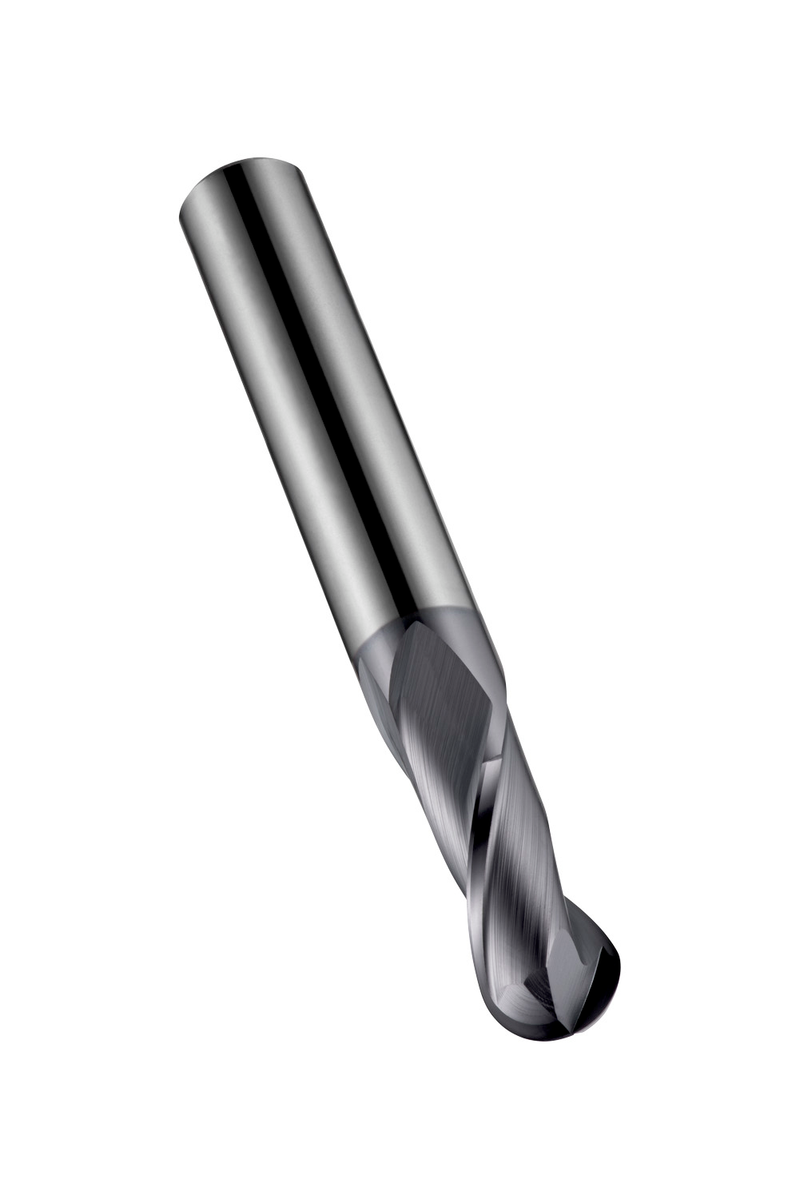

Fraise boule courte 2 dents, diamètre 10 mm avec une longueur de coupe de 19 mm, une longueur totale de 72 mm et un rayon de profil complet de 5 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, en carbure monobloc avec revêtement X-CEED, hélice à 30° et angle de dépouille de 10° pour le fraisage en copiage dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S50110.0
GradeX-CEED
Product Number5983122
Product FamilyS501
Insert Geometry
Corner Radius — in (RE)0.1969"
Corner Radius — mm (RE)5 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number342497
EAN7320760342497
File Type Download
S50110.0 — Line Drawing PDF Download
