UGC DOR5983127
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$250.54 CAD - $250.54 CAD
$250.54 CAD
$250.54 CAD - $250.54 CAD
$250.54 CAD

Vendu en lots de : 1

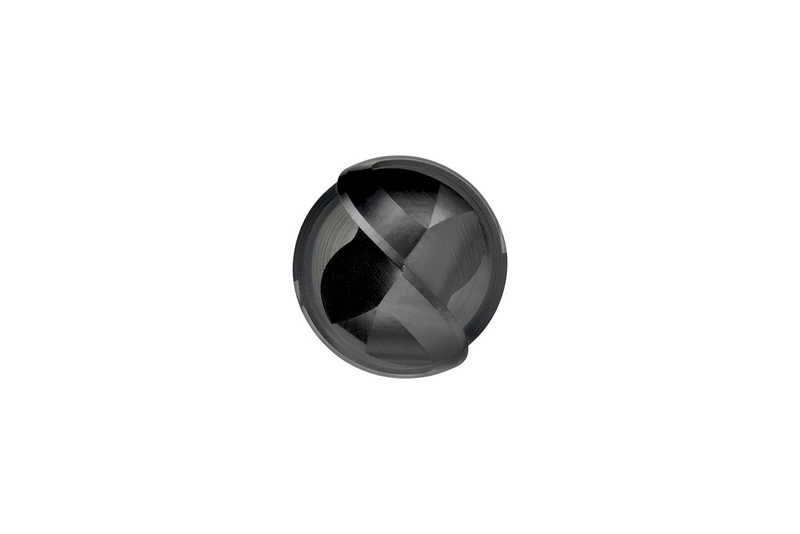

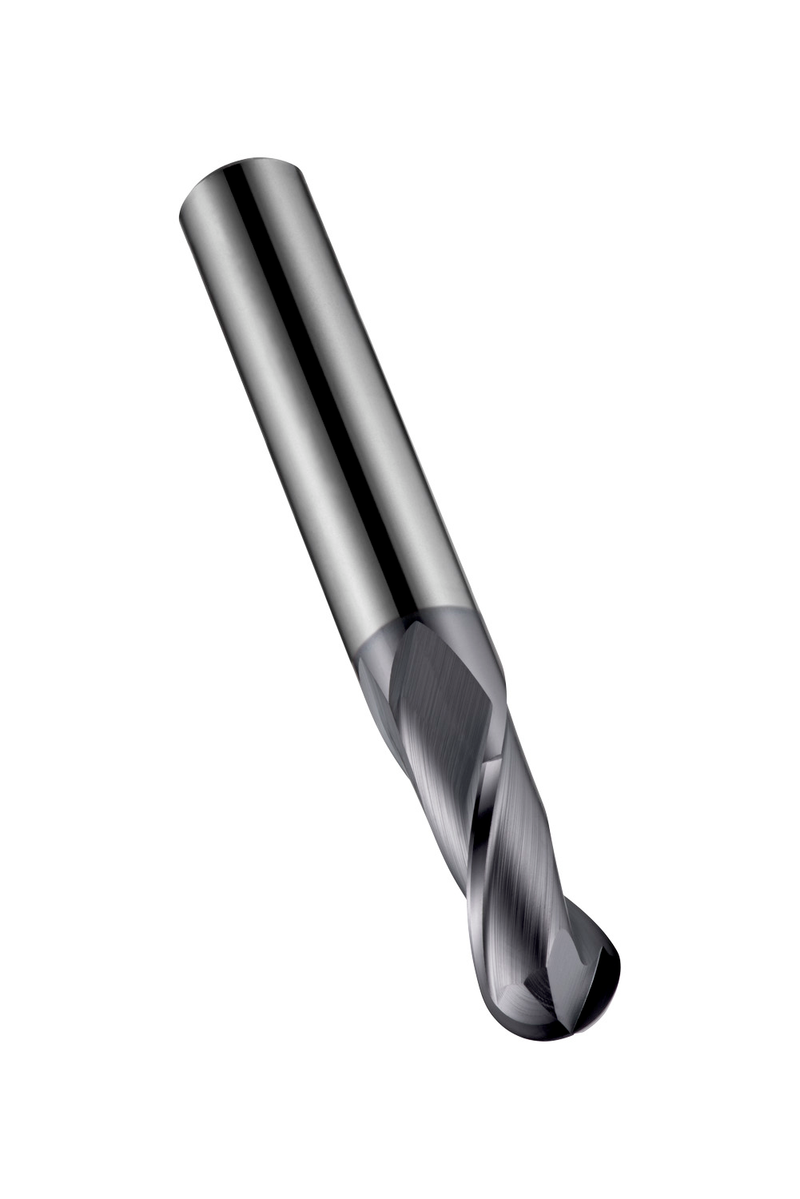

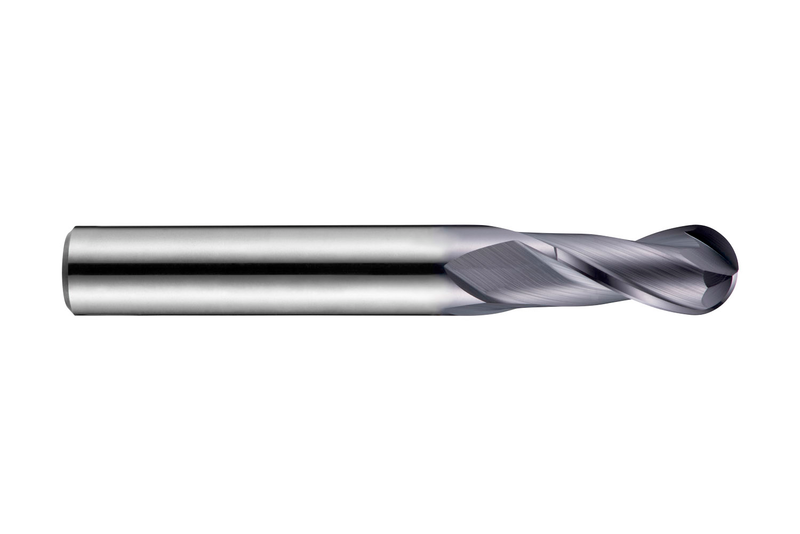

Fraise à l'extrémité sphérique série courte à 2 dents, diamètre de 12 mm avec longueur de coupe de 22 mm, longueur totale de 83 mm et rayon à profil plein de 6 mm, conforme à la norme DORMER, avec queue lisse de 12 mm, en carbure monobloc avec revêtement X-CEED, hélice de 30° et angle de dépouille de 10° pour le copiage de l'acier et de l'acier moulé, de l'acier inoxydable ferritique et martensitique, de la fonte et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S50112.0
GradeX-CEED
Product Number5983127
Product FamilyS501
Insert Geometry
Corner Radius — in (RE)0.2362"
Corner Radius — mm (RE)6 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number342503
EAN7320760342503
File Type Download
S50112.0 — Line Drawing PDF Download
