UGC DOR5983132
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$412.81 CAD - $412.81 CAD
$412.81 CAD
$412.81 CAD - $412.81 CAD
$412.81 CAD

Vendu en lots de : 1

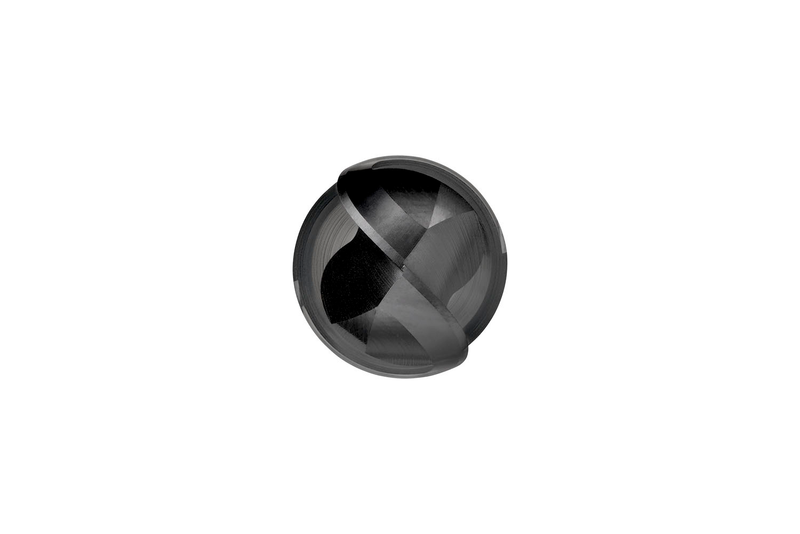

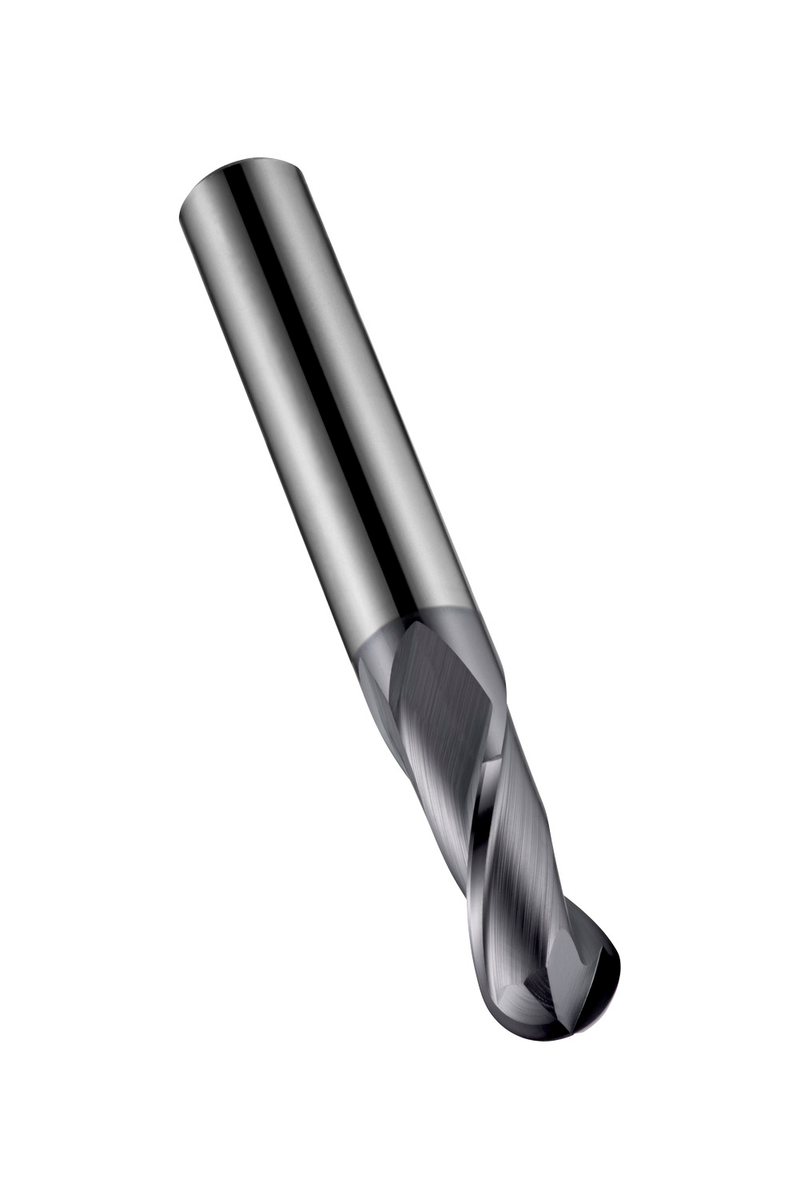

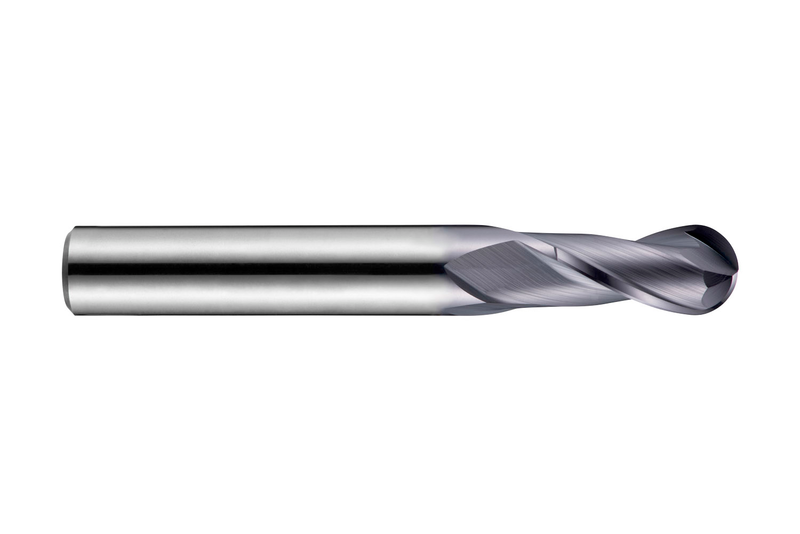

Fraise à l'extrémité sphérique série courte à 2 dents, diamètre 16mm avec 26mm de longueur de coupe, 92mm de longueur totale et 8mm de rayon de profil complet, selon la norme DORMER avec une queue cylindrique de 16mm, carbure monobloc avec revêtement X-CEED, hélice de 30° et angle de dépouille de 10° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S50116.0
GradeX-CEED
Product Number5983132
Product FamilyS501

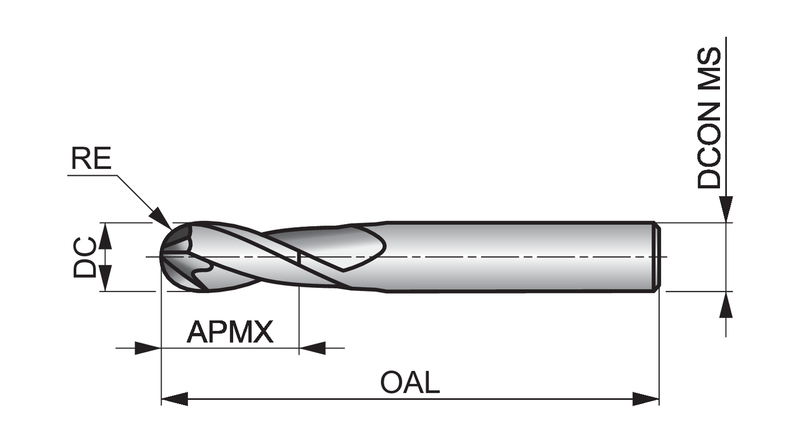

Insert Geometry
Corner Radius — in (RE)0.315"
Corner Radius — mm (RE)8 mm
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number342510
EAN7320760342510
File Type Download
S50116.0 — Line Drawing PDF Download
