UGC DOR5983138
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$93.03 CAD - $93.03 CAD
$93.03 CAD
$93.03 CAD - $93.03 CAD
$93.03 CAD

Vendu en lots de : 1

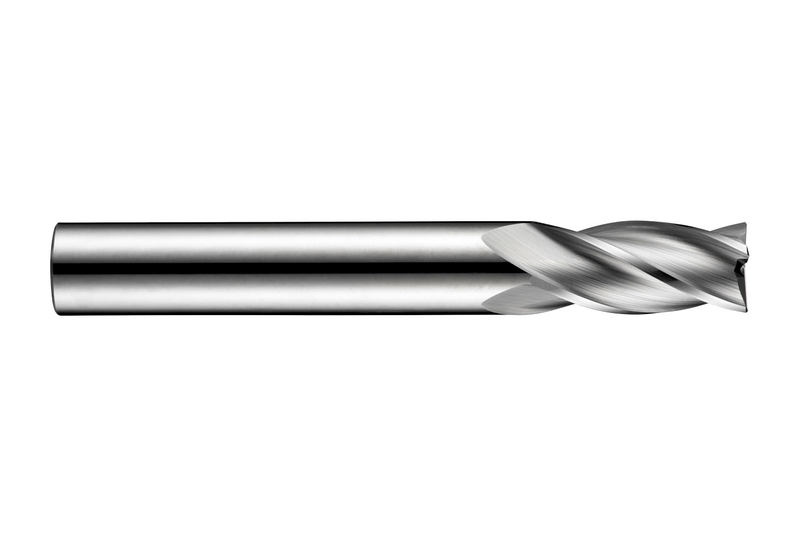

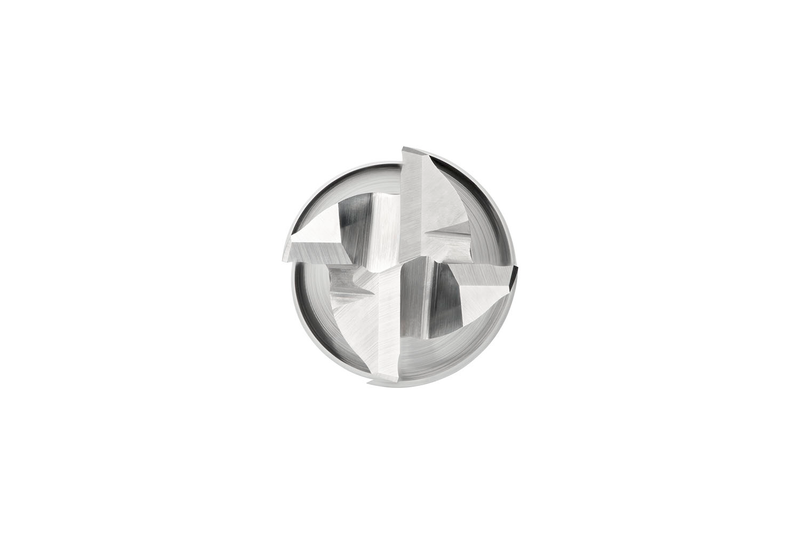

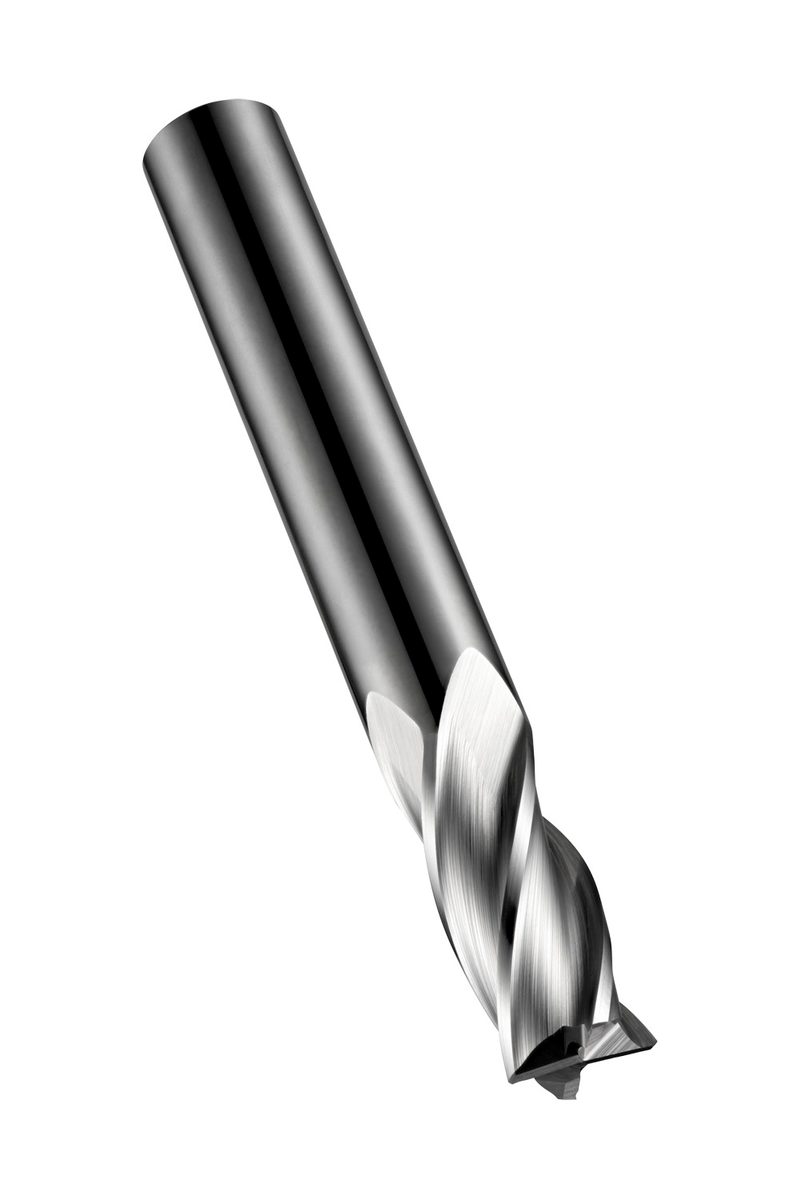

Fraise en bout longueur normale, 4 dents, diamètre 12mm avec une longueur de coupe de 25mm, longueur totale de 73mm et arêtes chanfreinées à 45° de 0,2mm, conforme à la norme DORMER, avec un queue cylindrique de 12mm, carbure monobloc finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements dans les aciers de décolletage, aciers au carbone et alliés, fontes malléables, ductiles et à graphite compacté, et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S90412.0
GradeLumineux
Product Number5983138
Product FamilyS904

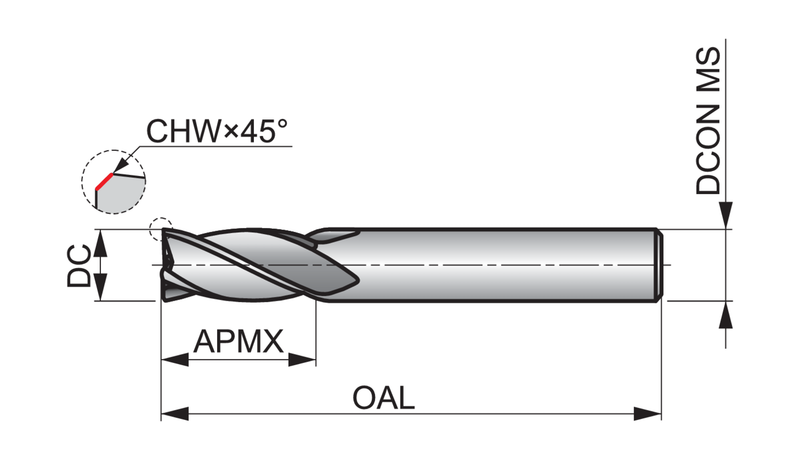

Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number133095
EAN7320760133095
File Type Download
S90412.0 — Line Drawing PDF Download
