S90414.0
S90414.0
S90414.0
S90414.0

S90414.0

UGC DOR5983145
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$116.29 CAD - $116.29 CAD
$116.29 CAD
$116.29 CAD - $116.29 CAD
$116.29 CAD

Vendu en lots de : 1

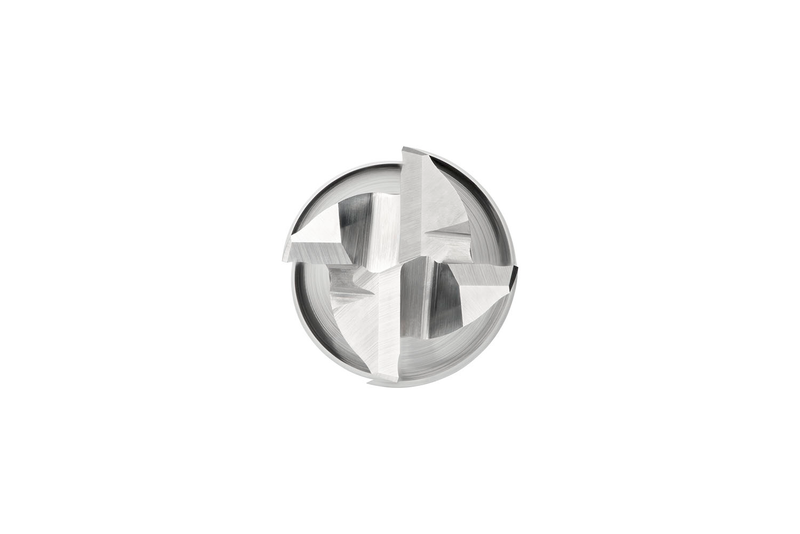

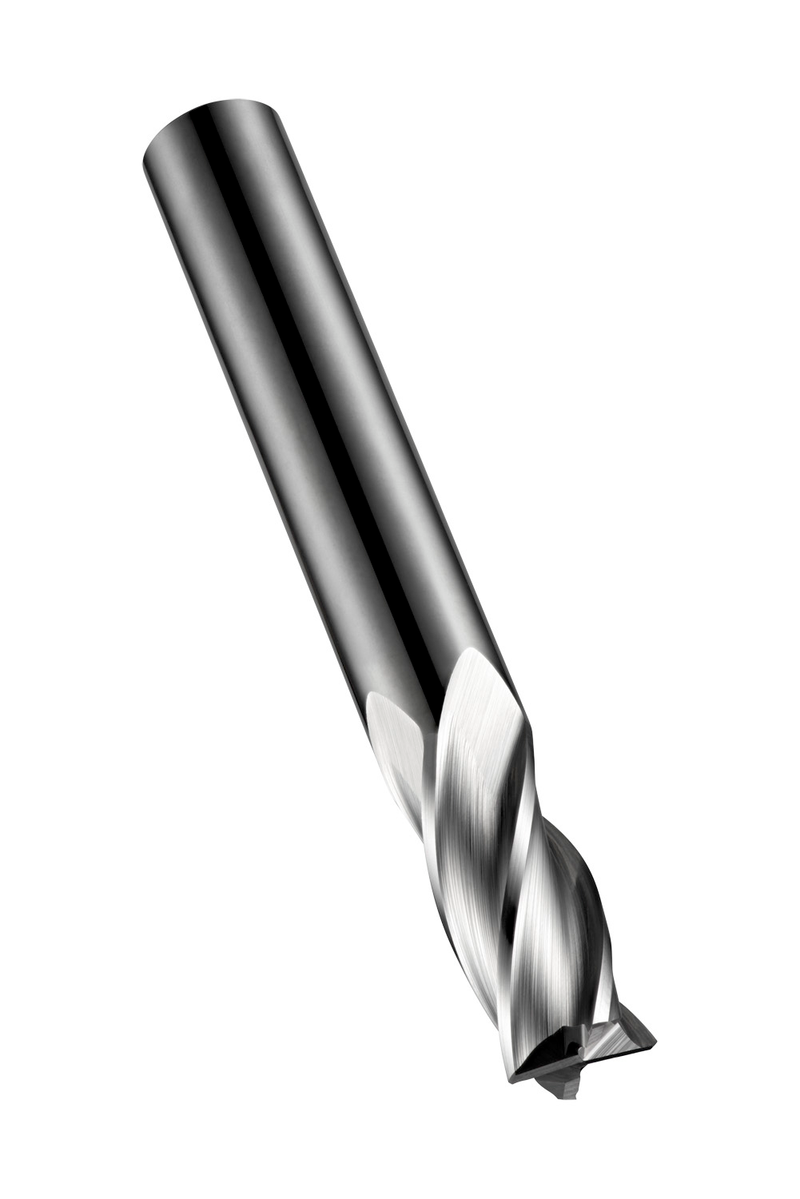

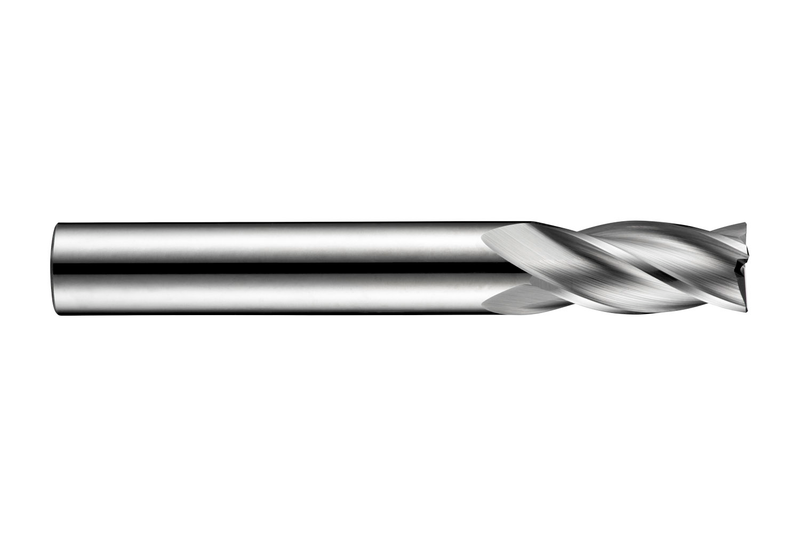

Fraise en bout de longueur standard à 4 dents, diamètre 14 mm avec 30 mm de longueur de coupe, 83 mm de longueur totale et des arêtes de coin chanfreinées à 45° de 0,2 mm, selon la norme DORMER avec une queue cylindrique de 14 mm, carbure monobloc à finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement dans l'acier de décolletage, l'acier au carbone et allié non allié, la fonte malléable, ductile et à graphite compacté, et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S90414.0
GradeLumineux
Product Number5983145
Product FamilyS904

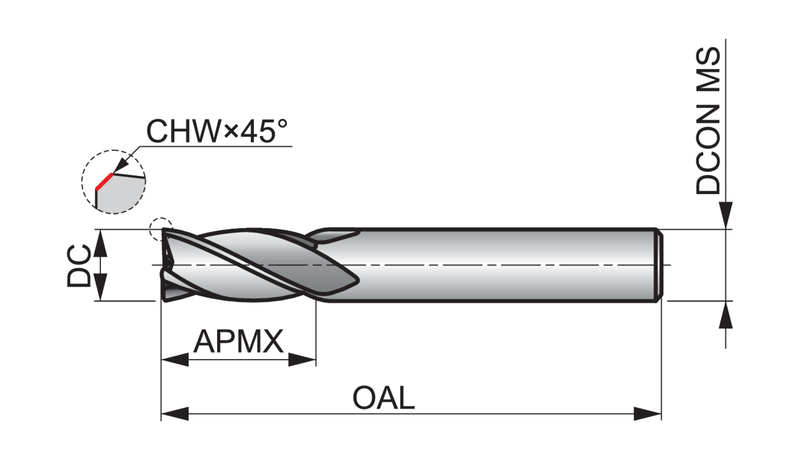

Insert Geometry
Depth of Cut Max — in (APMX)1.1811"
Depth of Cut Max — mm (APMX)30.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number10570
EAN7320760010570
File Type Download
S90414.0 — Line Drawing PDF Download
