S5019.0
S5019.0
S5019.0
S5019.0

S5019.0

UGC DOR5983182
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.16 CAD - $197.16 CAD
$197.16 CAD
$197.16 CAD - $197.16 CAD
$197.16 CAD

Vendu en lots de : 1

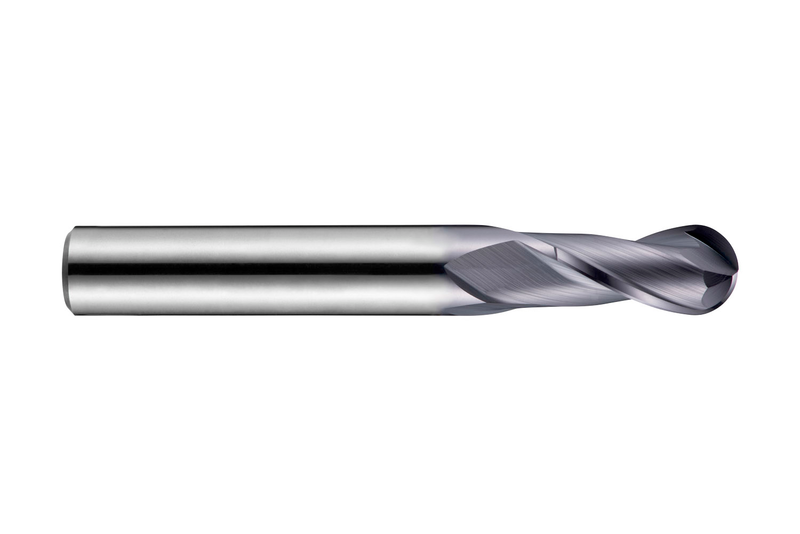

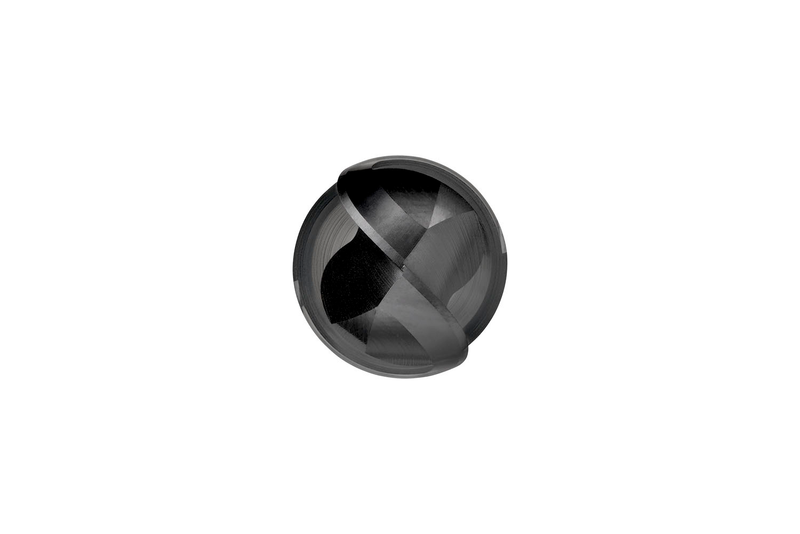

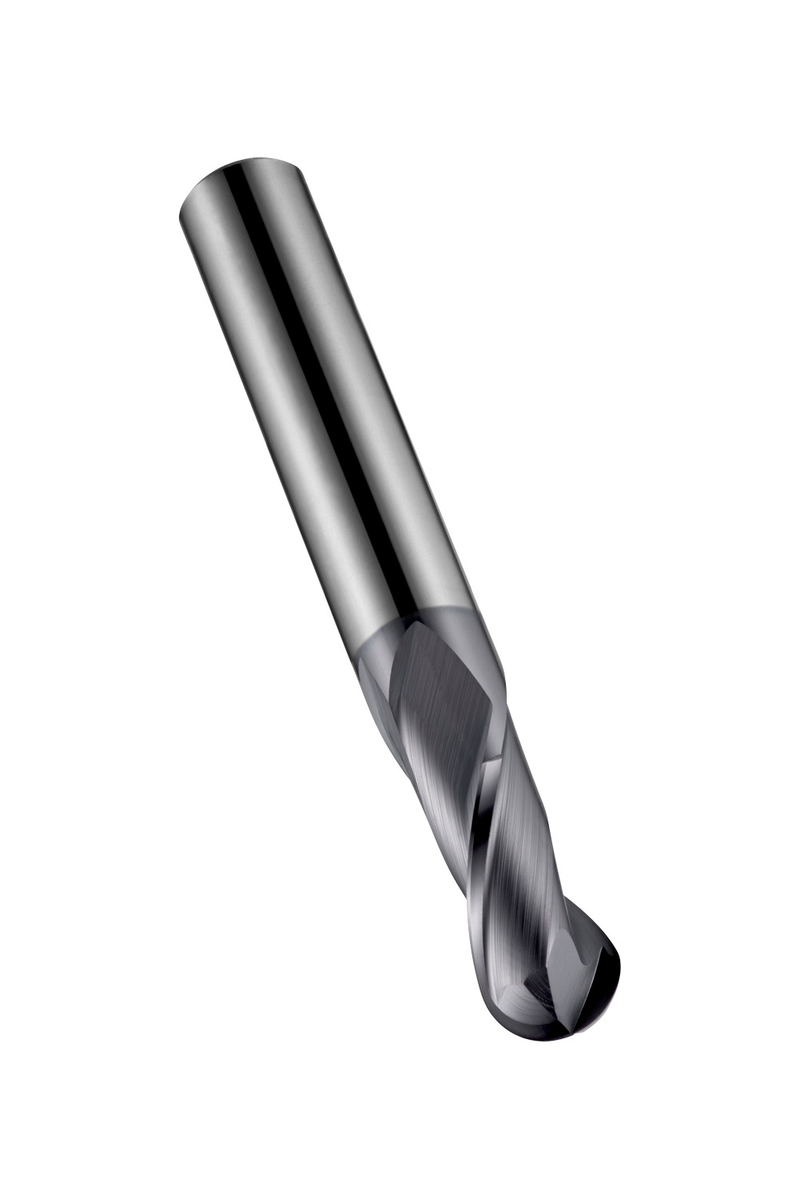

Fraise boule courte 2 dents, diamètre 9mm avec longueur de coupe 16mm, longueur totale 72mm et rayon de profil complet 4,5mm, selon la norme DORMER avec une queue cylindrique 10mm, carbure monobloc avec revêtement X-CEED, hélice 30° et angle de dépouille 10° pour le fraisage de copiage dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5019.0
GradeX-CEED
Product Number5983182
Product FamilyS501

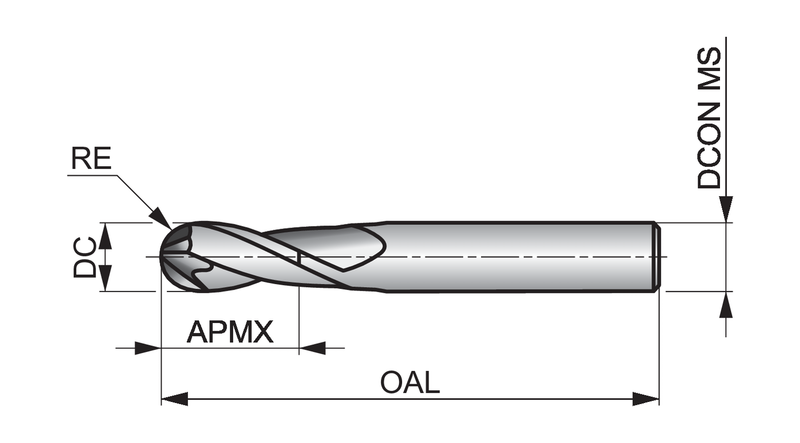

Insert Geometry
Corner Radius — in (RE)0.1772"
Corner Radius — mm (RE)4.5 mm
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number342480
EAN7320760342480
File Type Download
S5019.0 — Line Drawing PDF Download
