UGC DOR5983186
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.46 CAD - $34.46 CAD
$34.46 CAD
$34.46 CAD - $34.46 CAD
$34.46 CAD

Vendu en lots de : 1

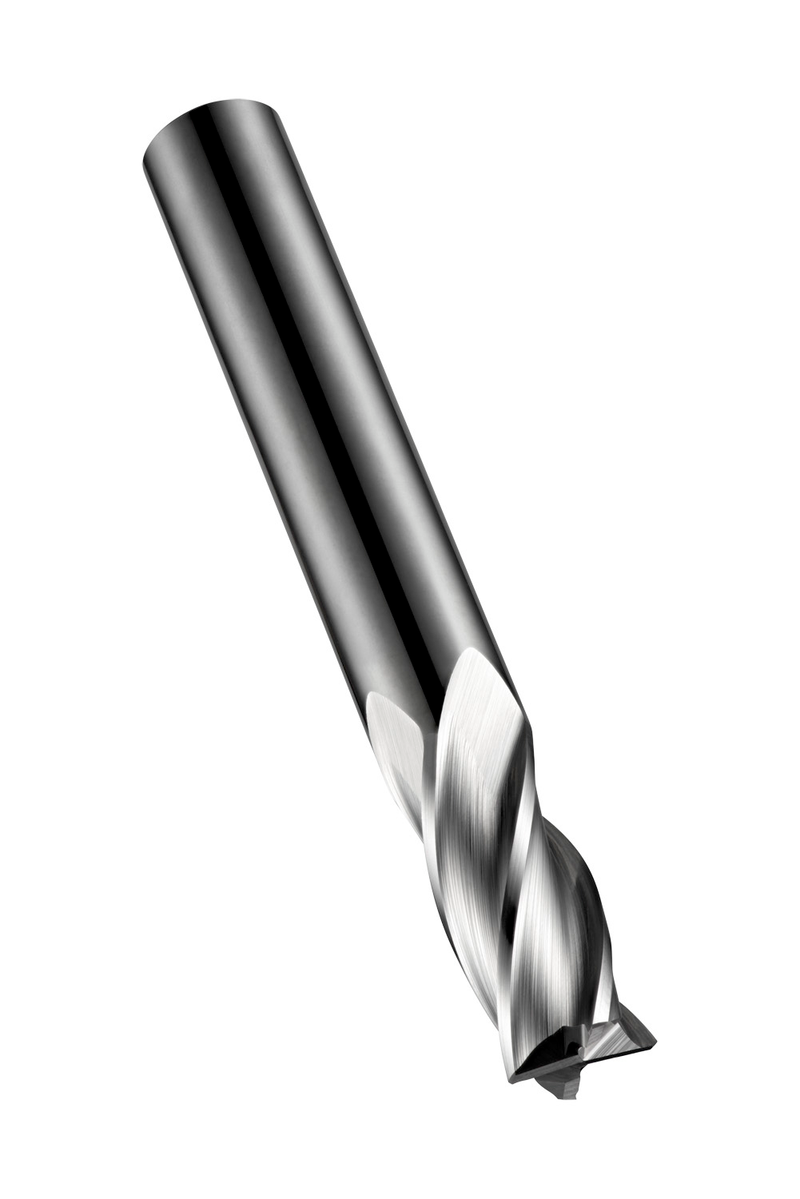

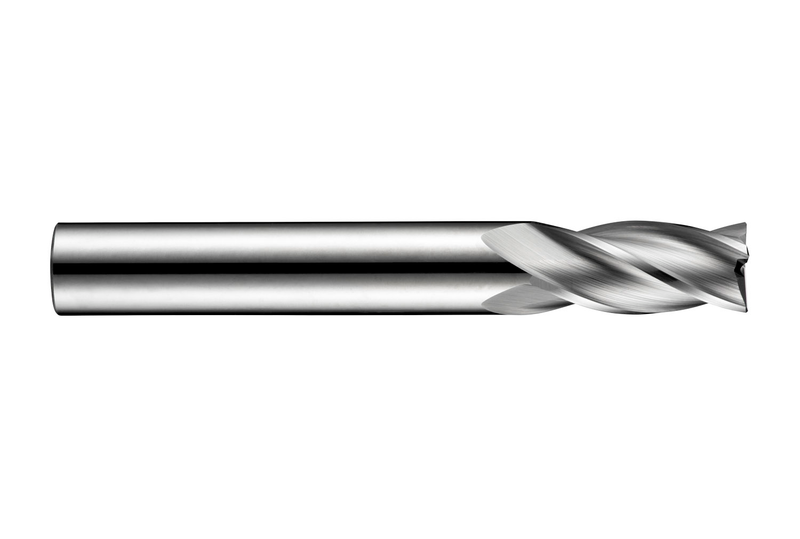

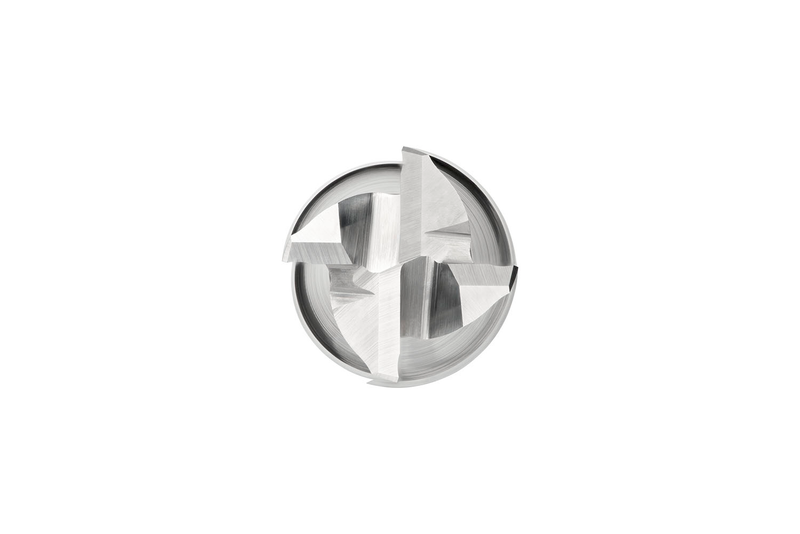

Fraise en bout de longueur normale à 4 dents, diamètre 4mm, longueur de coupe 14mm, longueur totale 50mm et chanfrein d'angle à 45° de 0,08mm, selon la norme DORMER avec une queue cylindrique de 4mm, en carbure monobloc avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements dans les aciers de décolletage, aciers au carbone et alliés, fontes malléables, ductiles et à graphite compacté, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9044.0
GradeLumineux
Product Number5983186
Product FamilyS904
Insert Geometry
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number133163
EAN7320760133163
File Type Download

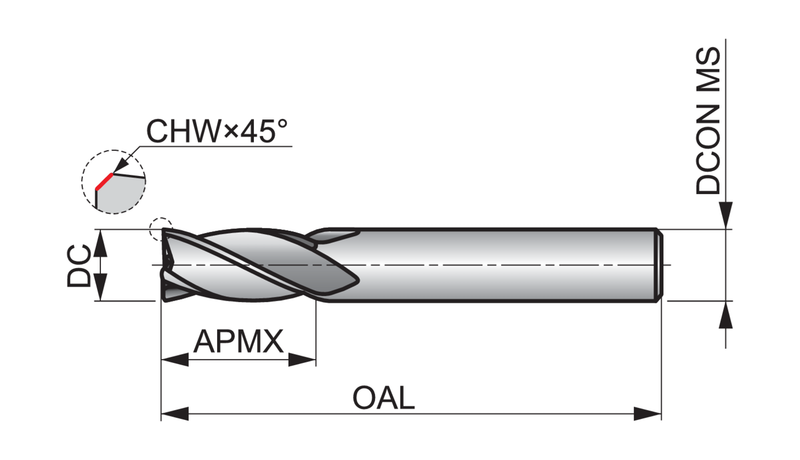

S9044.0 — Line Drawing PDF Download
