UGC DOR5983297
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$109.94 CAD - $109.94 CAD
$109.94 CAD
$109.94 CAD - $109.94 CAD
$109.94 CAD

Vendu en lots de : 1

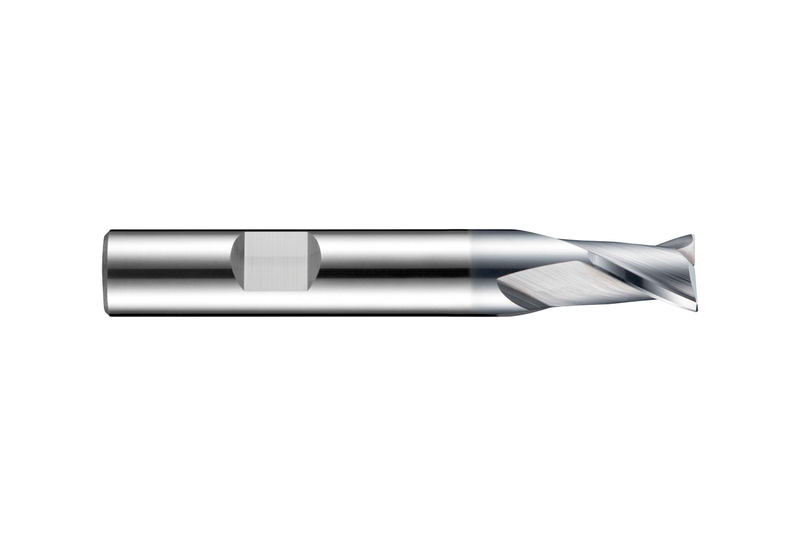

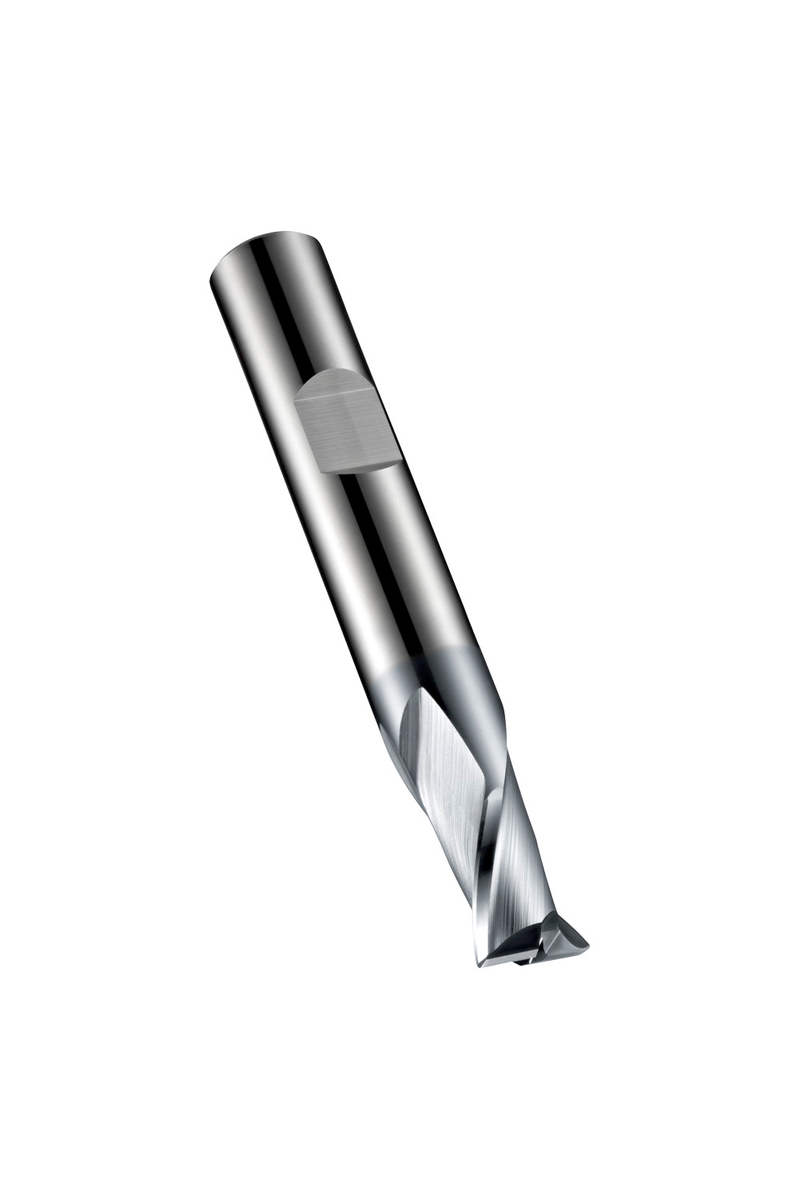

Fraise-scie extra-courte 2 tailles, diamètre 9 mm avec longueur de coupe de 10 mm, longueur totale de 66 mm et arêtes chanfreinées à 45° de 0,2 mm, selon la norme DIN 6527 K avec une queue Weldon de 10 mm, carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte, l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S802HB9.0
GradeAlCrN
Product Number5983297
Product FamilyS802HB
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm

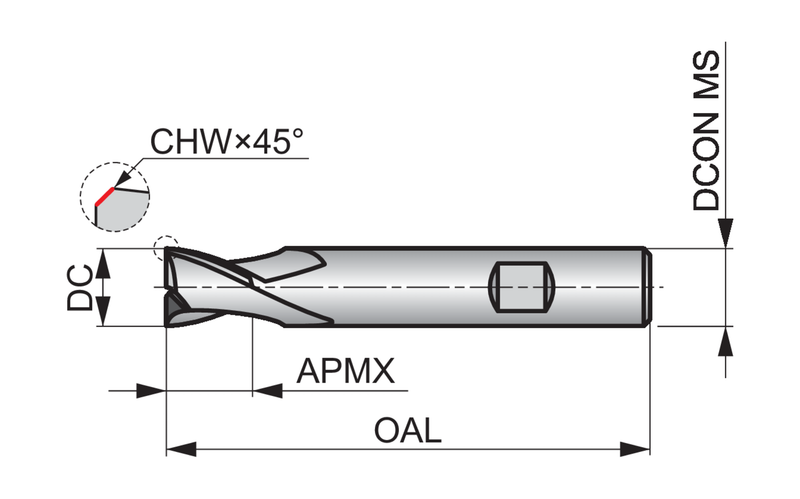

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number640852
EAN7320760640852
File Type Download
S802HB9.0 — 3D Model STP Download
S802HB9.0 — 2D Model DXF Download
S802HB9.0 — Line Drawing PDF Download
