UGC DOR5983333
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$136.37 CAD - $136.37 CAD
$136.37 CAD
$136.37 CAD - $136.37 CAD
$136.37 CAD

Vendu en lots de : 1

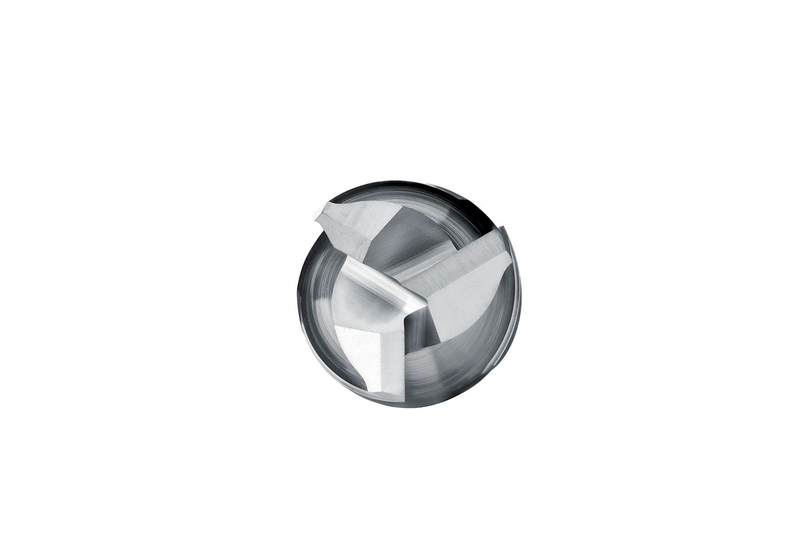

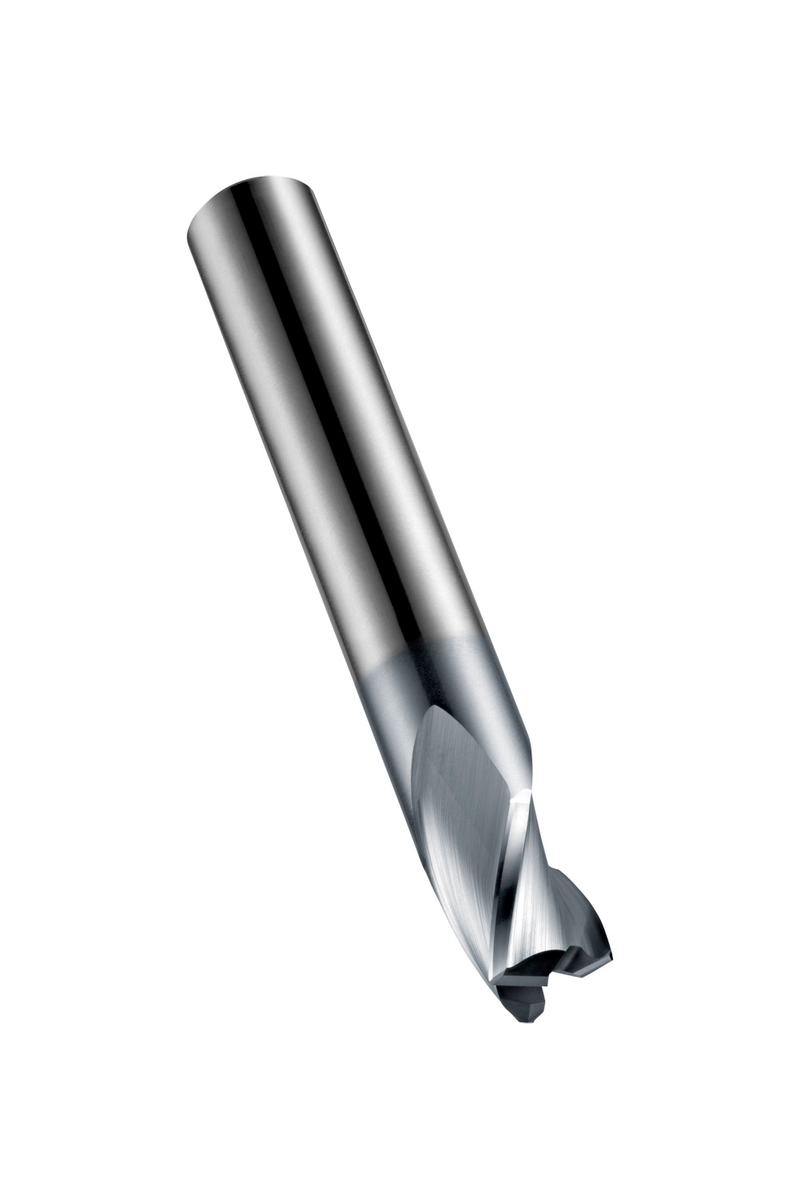

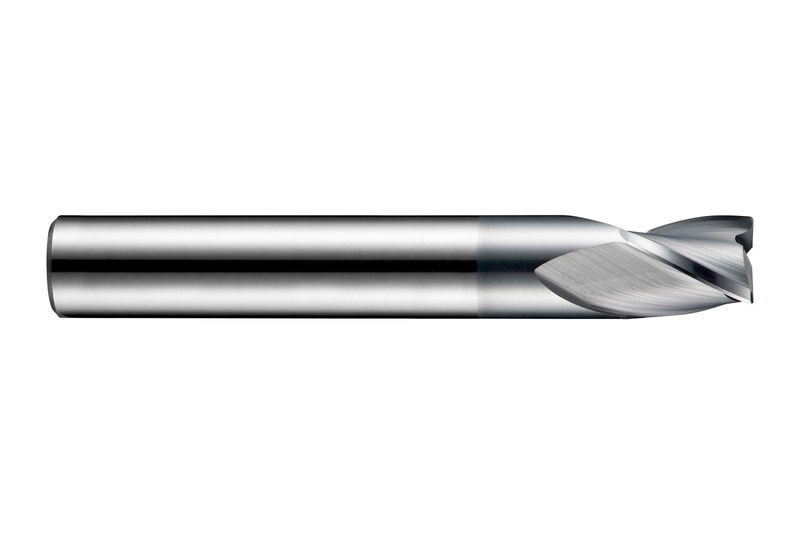

Fraise-scie extra-courte à 3 dents, diamètre 12mm avec une longueur de coupe de 12mm, une longueur totale de 73mm et des bords chanfreinés à 45° de 0,2mm, selon la norme DIN 6527 K avec une queue cylindrique de 12mm, en carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage d'épaulements, le plongement, le fraisage de rainures et le surfaçage dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S803HA12.0
GradeAlCrN
Product Number5983333
Product FamilyS803HA
Insert Geometry
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm

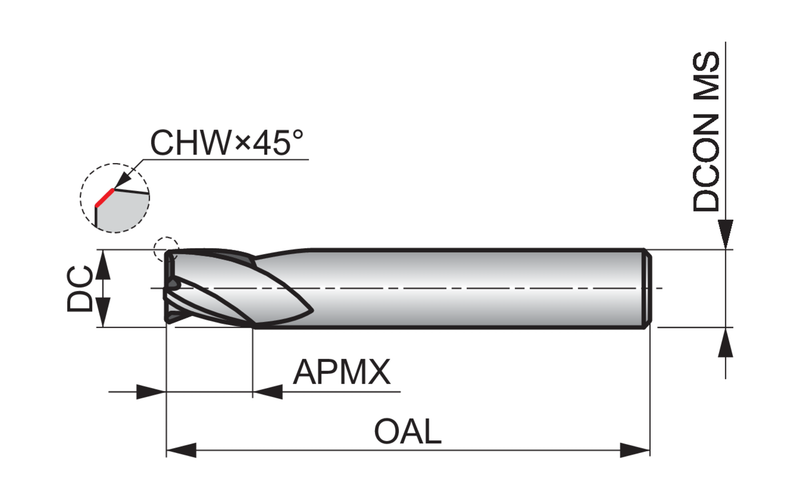

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number641217
EAN7320760641217
File Type Download
S803HA12.0 — 3D Model STP Download
S803HA12.0 — 2D Model DXF Download
S803HA12.0 — Line Drawing PDF Download
