UGC DOR5983362
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$134.79 CAD - $134.79 CAD
$134.79 CAD
$134.79 CAD - $134.79 CAD
$134.79 CAD

Vendu en lots de : 1

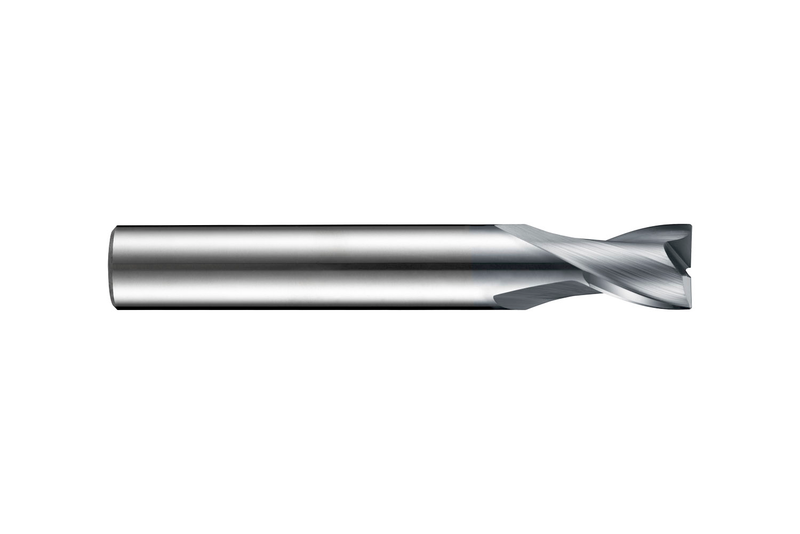

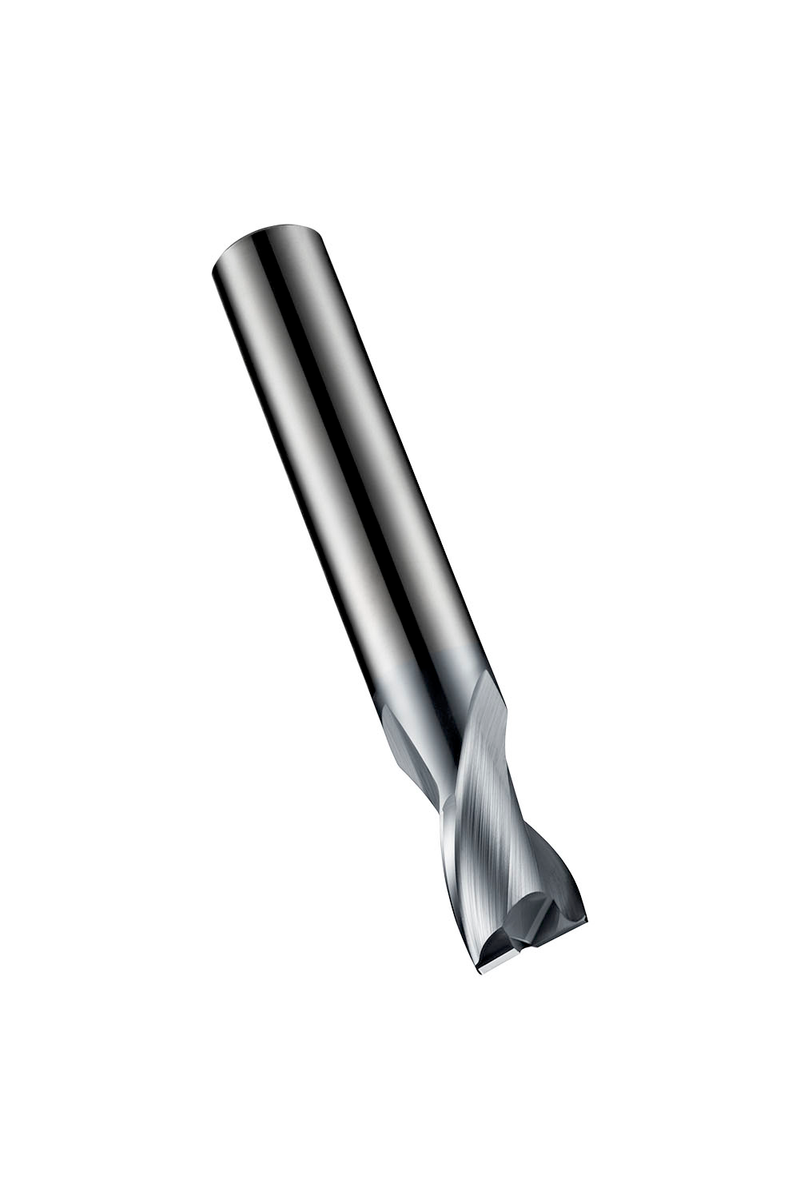

Fraise-scie extra courte à 2 dents, diamètre de 12 mm avec longueur de coupe de 12 mm, longueur totale de 73 mm et bords d'angle chanfreinés de 0,2 mm à 45°, selon la norme DIN 6527 K avec une tige cylindrique de 12 mm, carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte, l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S802HA12.0
GradeAlCrN
Product Number5983362
Product FamilyS802HA
Insert Geometry
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm

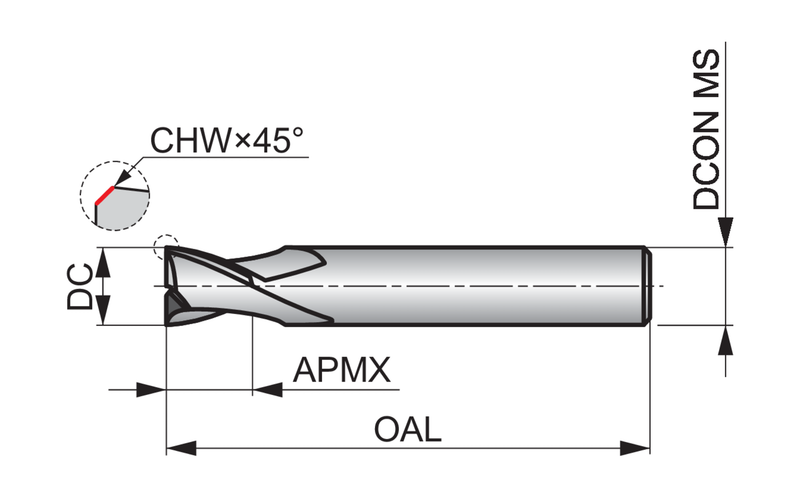

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number640593
EAN7320760640593
File Type Download
S802HA12,0 — 3D Model STP Download
S802HA12,0 — 2D Model DXF Download
S802HA12,0 — Line Drawing PDF Download
