UGC DOR5983372
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$230.46 CAD - $230.46 CAD
$230.46 CAD
$230.46 CAD - $230.46 CAD
$230.46 CAD

Vendu en lots de : 1

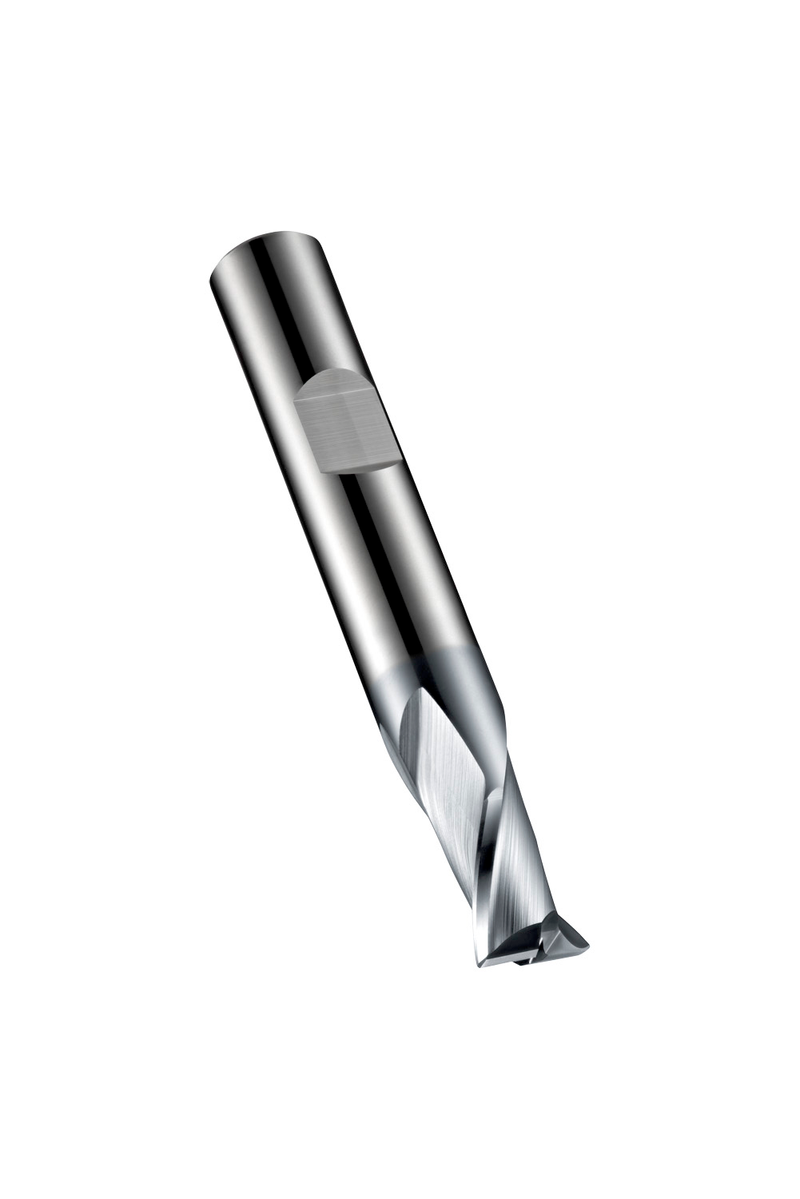

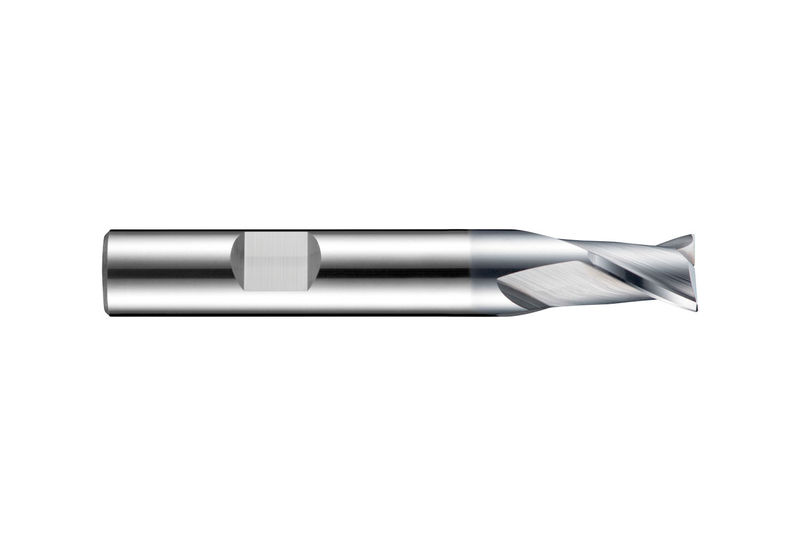

Fraise à rainurer série extra-courte 2 dents, diamètre 16mm avec longueur de coupe 16mm, longueur totale 82mm et chanfrein 45° de 0.2mm sur les arêtes, selon la norme DIN 6527 K avec queue Weldon de 16mm, carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour le rainurage et l'usinage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S802HB16.0
GradeAlCrN
Product Number5983372
Product FamilyS802HB

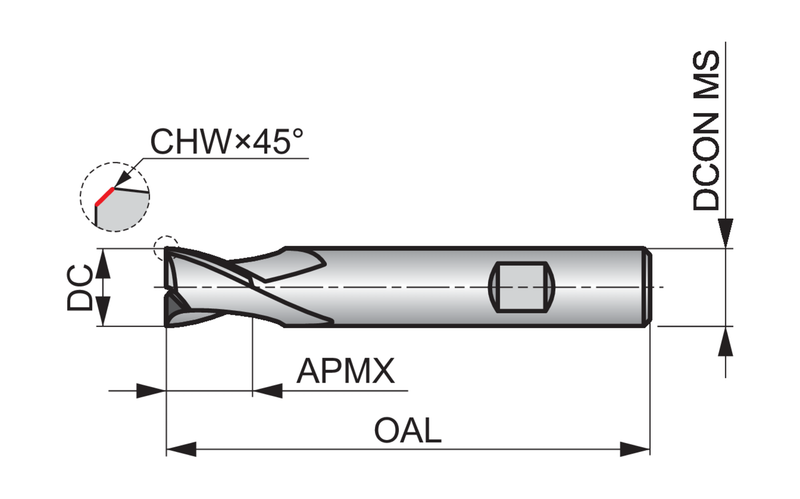

Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number640937
EAN7320760640937
File Type Download
S802HB16.0 — 3D Model STP Download
S802HB16.0 — 2D Model DXF Download
S802HB16.0 — Line Drawing PDF Download
