UGC DOR5983383
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$219.89 CAD - $219.89 CAD
$219.89 CAD
$219.89 CAD - $219.89 CAD
$219.89 CAD

Vendu en lots de : 1

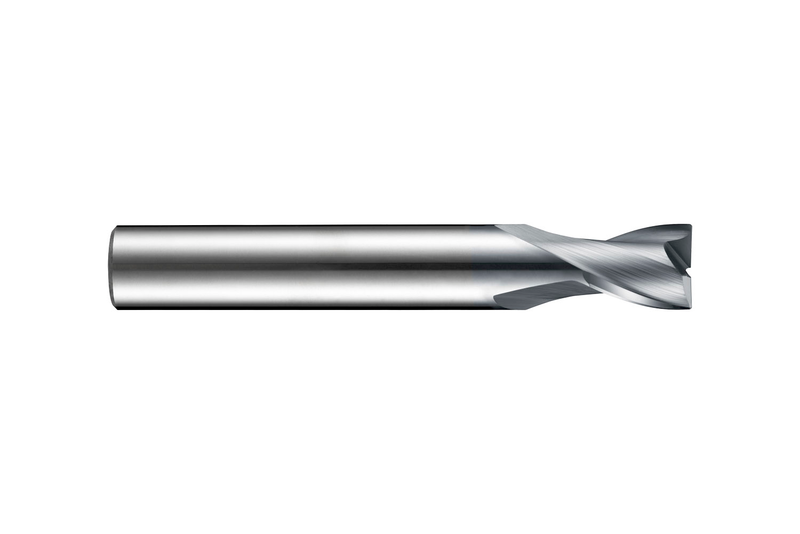

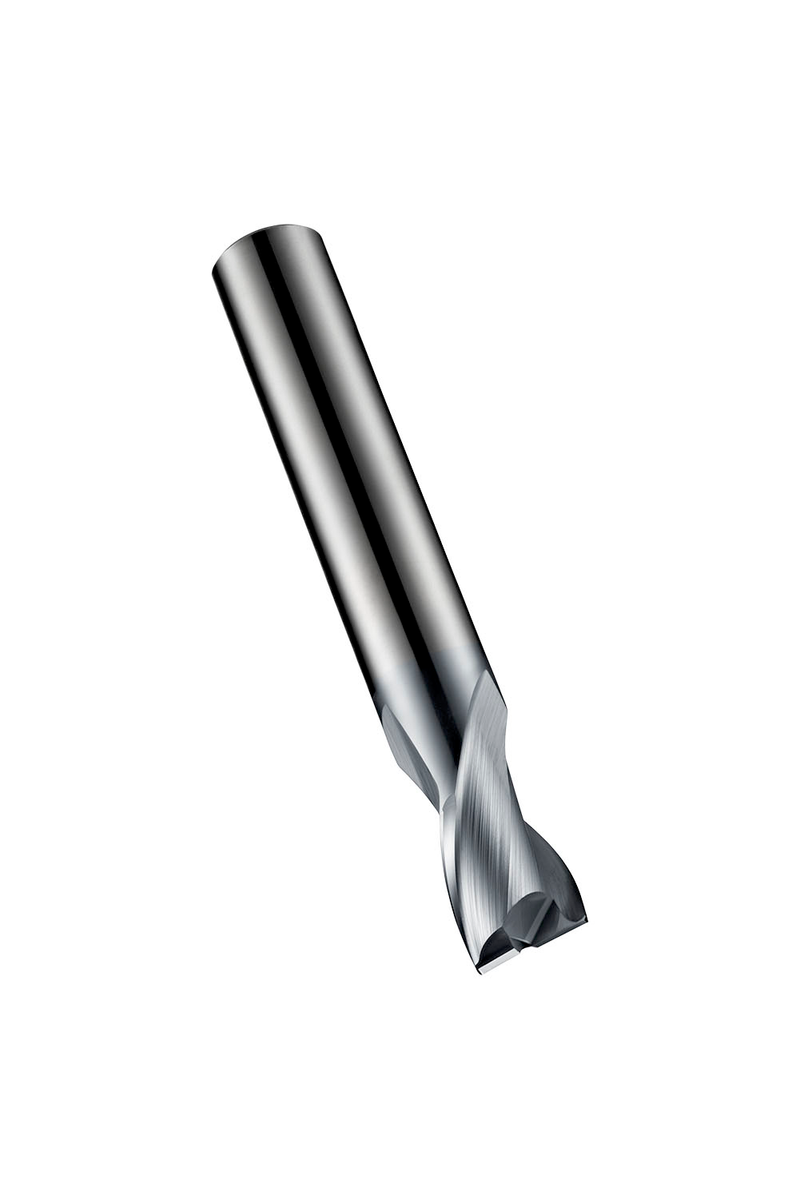

Fraise 2 tailles série ultra courte avec 2 lèvres, diamètre 16mm, longueur de coupe 16mm, longueur totale 82mm et chanfrein d'angle 45° de 0.2mm, conforme à la norme DIN 6527 K avec queue cylindrique de 16mm, en carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte, l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S802HA16.0
GradeAlCrN
Product Number5983383
Product FamilyS802HA

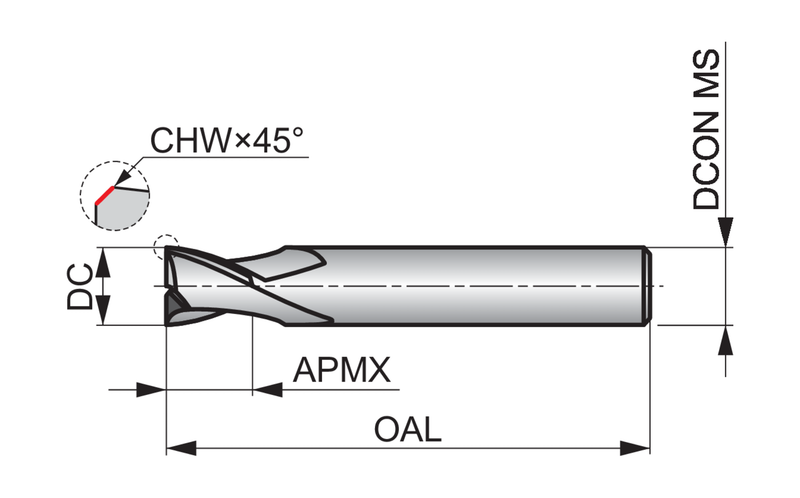

Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number640630
EAN7320760640630
File Type Download
S802HA16.0 — 3D Model STP Download
S802HA16.0 — 2D Model DXF Download
S802HA16.0 — Line Drawing PDF Download
