S803HA20.0
S803HA20.0
S803HA20.0
S803HA20.0

S803HA20.0

UGC DOR5983387
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$350.44 CAD - $350.44 CAD
$350.44 CAD
$350.44 CAD - $350.44 CAD
$350.44 CAD

Vendu en lots de : 1

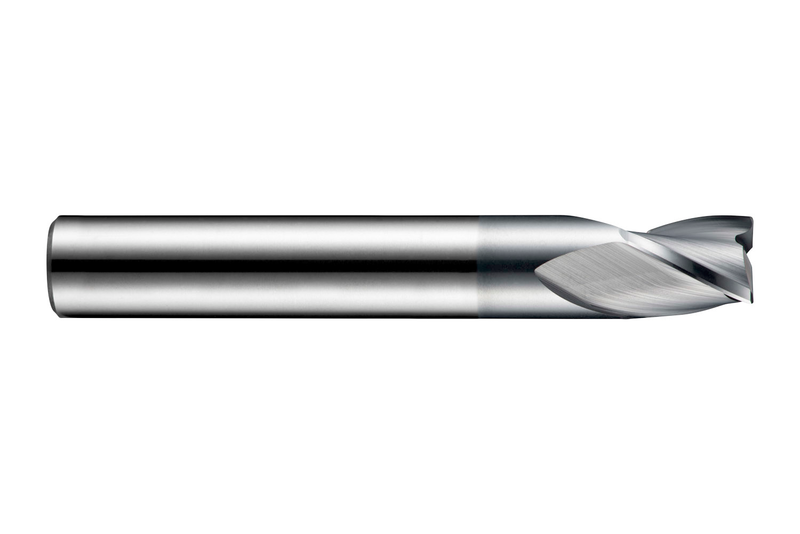

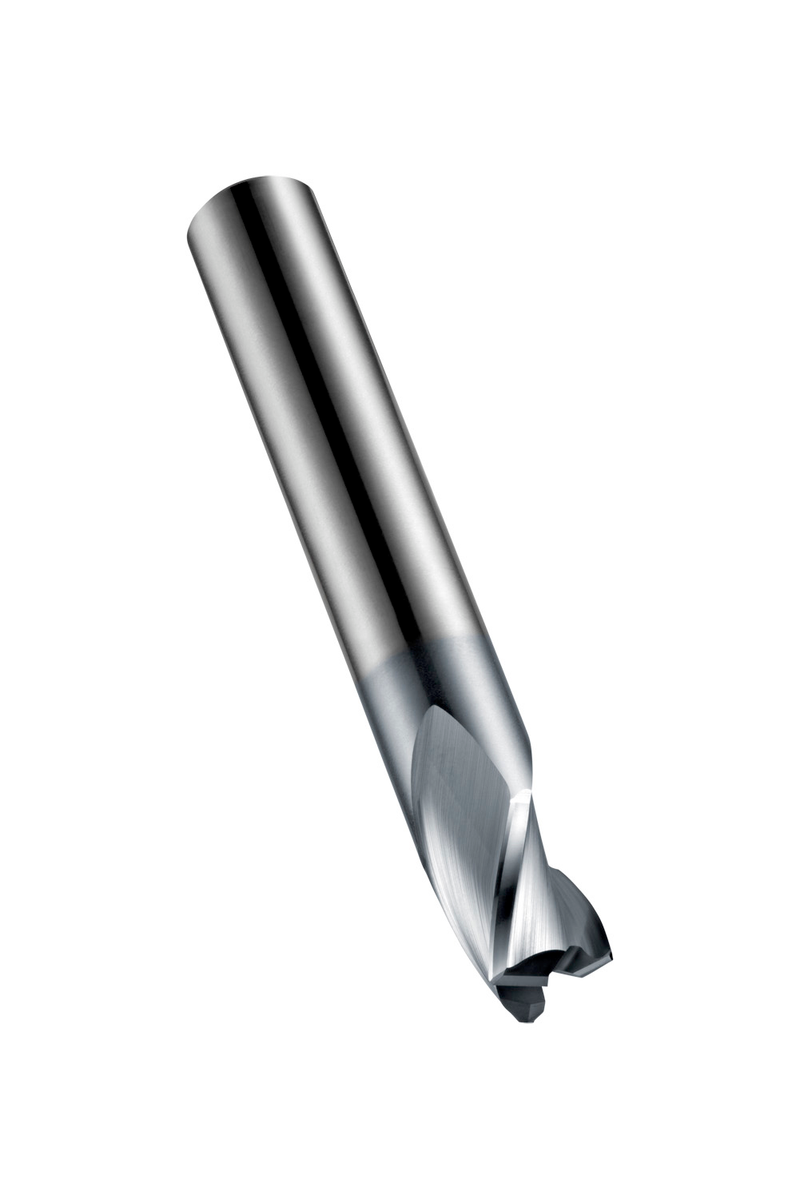

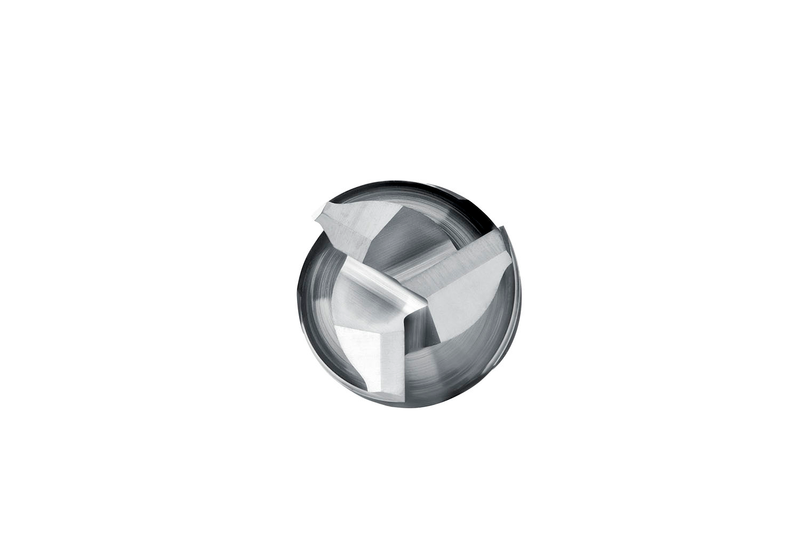

Fraise-scie extra courte à 3 dents, diamètre 20mm avec longueur de coupe 20mm, longueur totale 92mm et bords chanfreinés à 45° de 0.3mm, conforme à la norme DIN 6527 K avec queue lisse de 20mm, carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dégagement 9° pour fraisage d'épaulement, plongée, fraisage de rainure et rampement dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S803HA20.0
GradeAlCrN
Product Number5983387
Product FamilyS803HA
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm

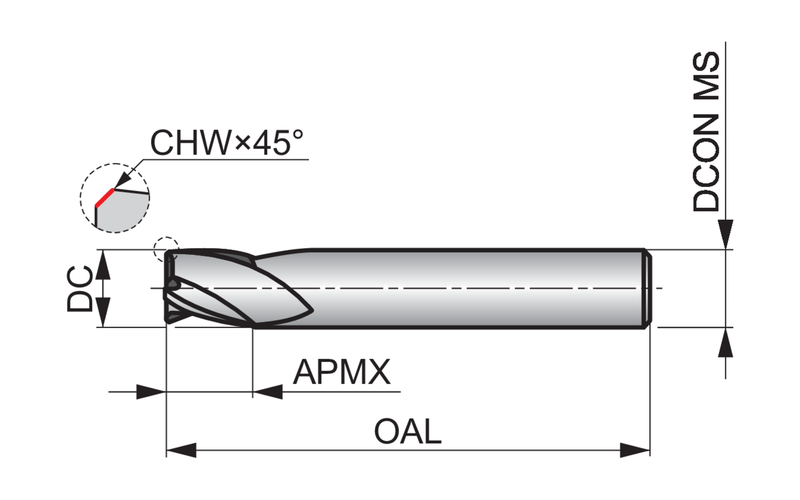

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number641293
EAN7320760641293
File Type Download
S803HA20.0 — 3D Model STP Download
S803HA20.0 — 2D Model DXF Download
S803HA20.0 — Line Drawing PDF Download
