UGC DOR5983430
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$297.59 CAD - $297.59 CAD
$297.59 CAD
$297.59 CAD - $297.59 CAD
$297.59 CAD

Vendu en lots de : 1

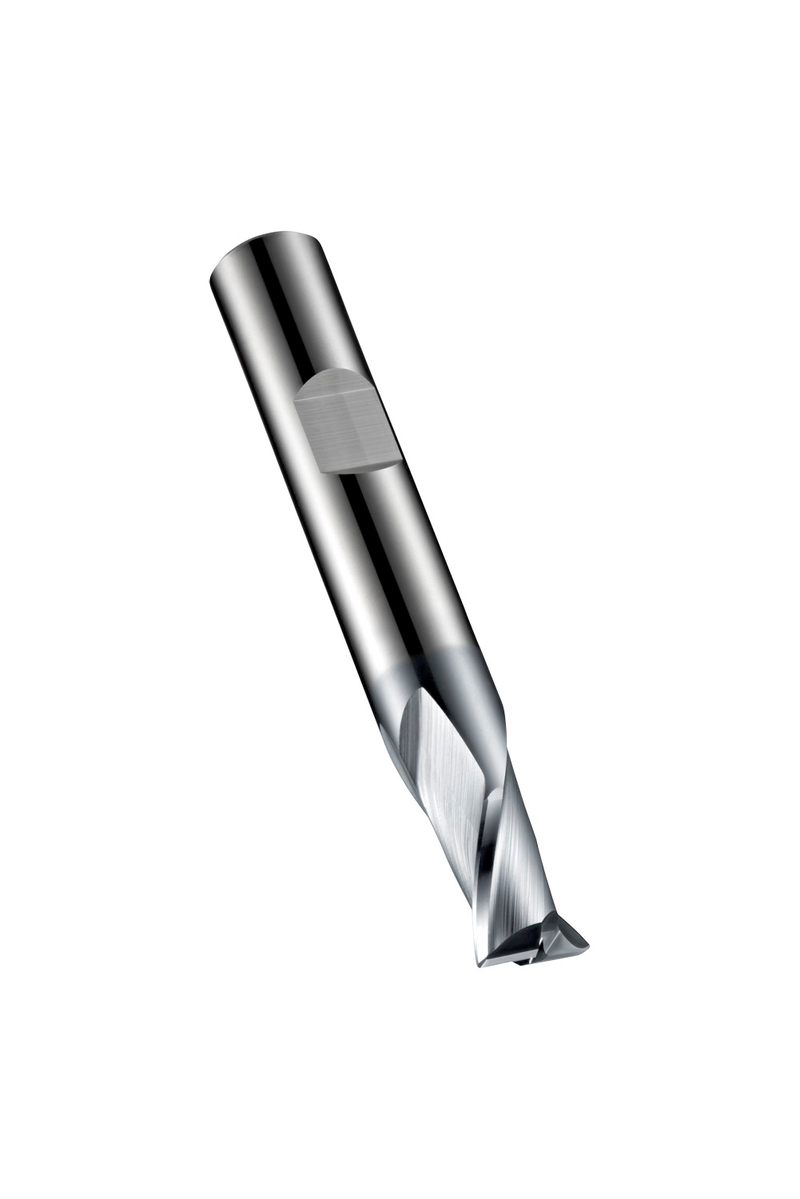

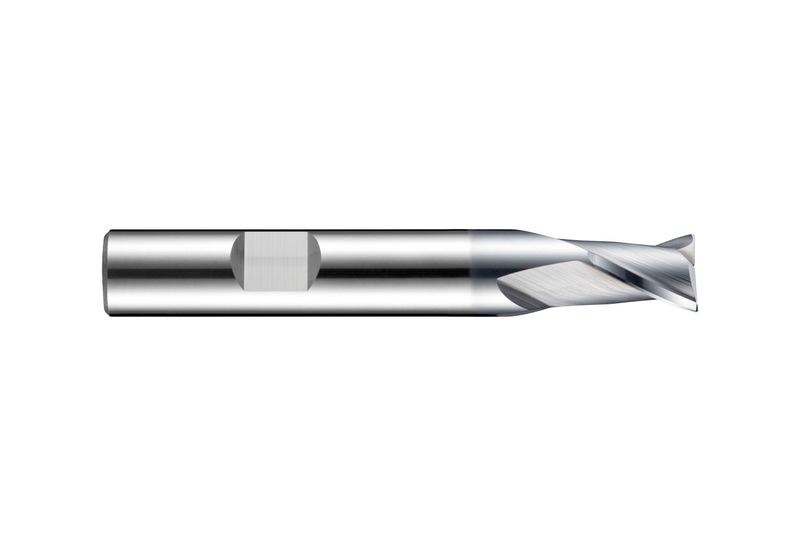

Fraise-scie à rainurer extra-courte à 2 dents, diamètre 18mm avec longueur de coupe de 18mm, longueur totale de 84mm et bords chanfreinés à 45° de 0,2mm, selon la norme DIN 6527 K avec queue Weldon de 18mm, carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage de rainures et le surfaçage en acier et acier moulé, acier inoxydable ferritique, martensitique et austénitique, fonte et aluminium moulé et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S802HB18.0
GradeAlCrN
Product Number5983430
Product FamilyS802HB

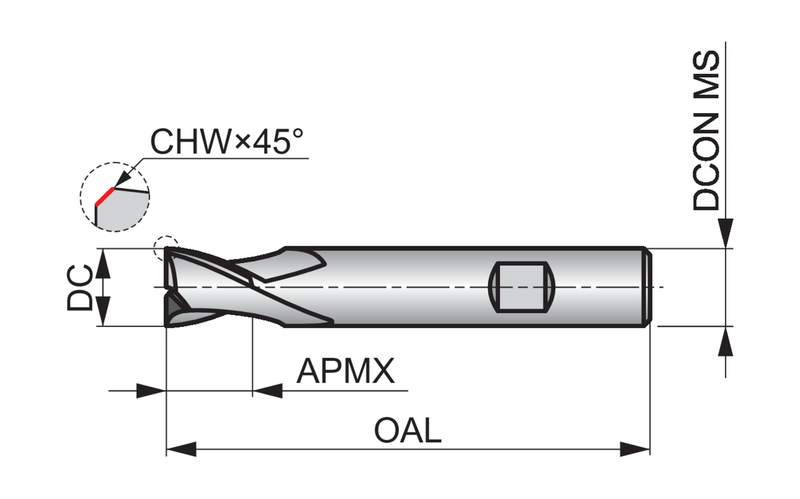

Insert Geometry
Depth of Cut Max — in (APMX)0.7087"
Depth of Cut Max — mm (APMX)18.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.3071"
Overall Length — mm (OAL)84.0 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number640951
EAN7320760640951
File Type Download
S802HB18.0 — 3D Model STP Download
S802HB18.0 — 2D Model DXF Download
S802HB18.0 — Line Drawing PDF Download
