UGC DOR5983441
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.43 CAD - $51.43 CAD
$51.43 CAD
$51.43 CAD - $51.43 CAD
$51.43 CAD

Vendu en lots de : 1

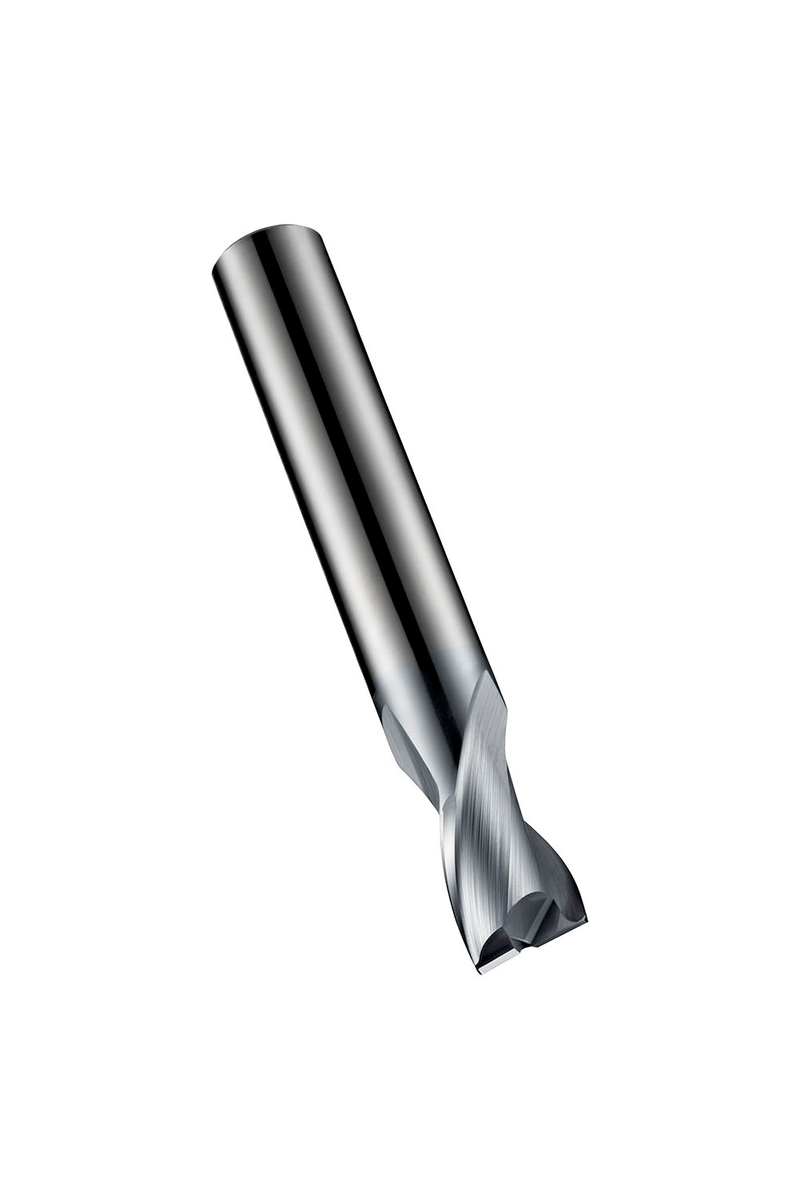

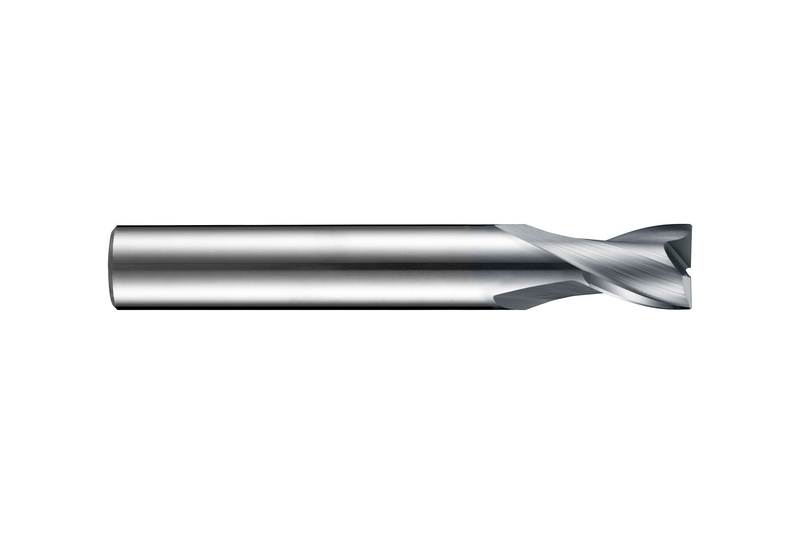

Fraise-scie extra courte à 2 arêtes, diamètre de 4 mm avec une longueur de coupe de 5 mm, longueur totale de 54 mm et des bords chanfreinés de 0,13 mm à 45°, selon la norme DIN 6527 K avec une queue cylindrique de 6 mm, en carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage de rainures et le surfaçage dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et l'aluminium moulé, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S802HA4.0
GradeAlCrN
Product Number5983441
Product FamilyS802HA

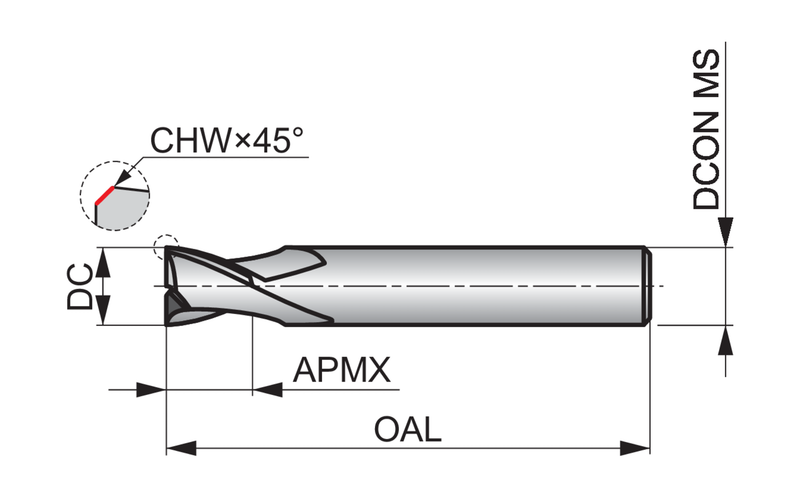

Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 K
Reference Numbers
EDP Number640456
EAN7320760640456
File Type Download
S802HA4.0 — 3D Model STP Download
S802HA4.0 — 2D Model DXF Download
S802HA4.0 — Line Drawing PDF Download
