S804HB12.0
S804HB12.0
S804HB12.0
S804HB12.0

S804HB12.0

UGC DOR5983499
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$157.51 CAD - $157.51 CAD
$157.51 CAD
$157.51 CAD - $157.51 CAD
$157.51 CAD

Vendu en lots de : 1

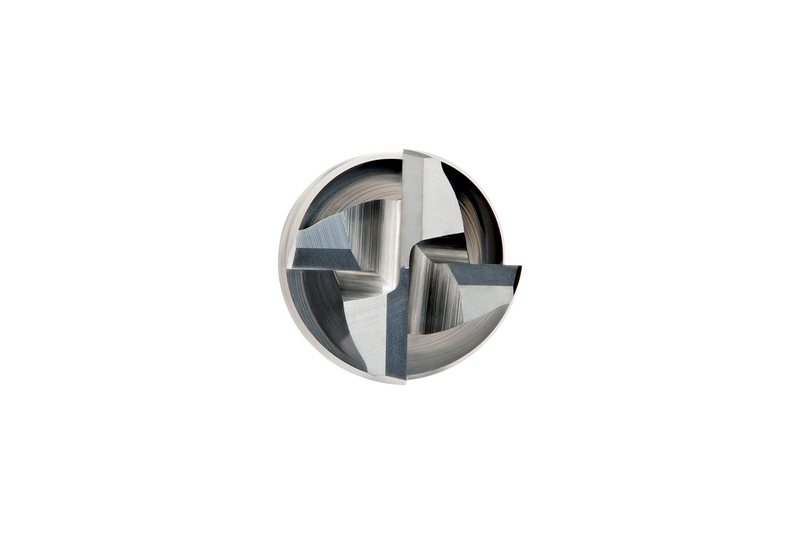

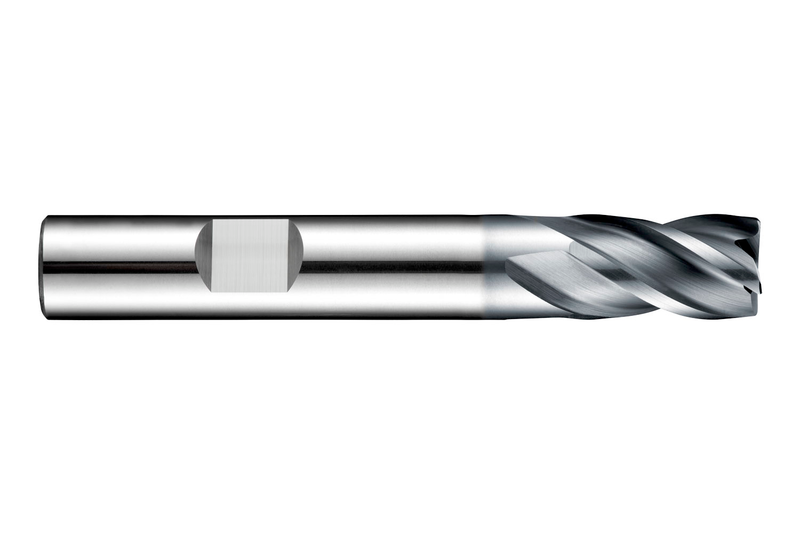

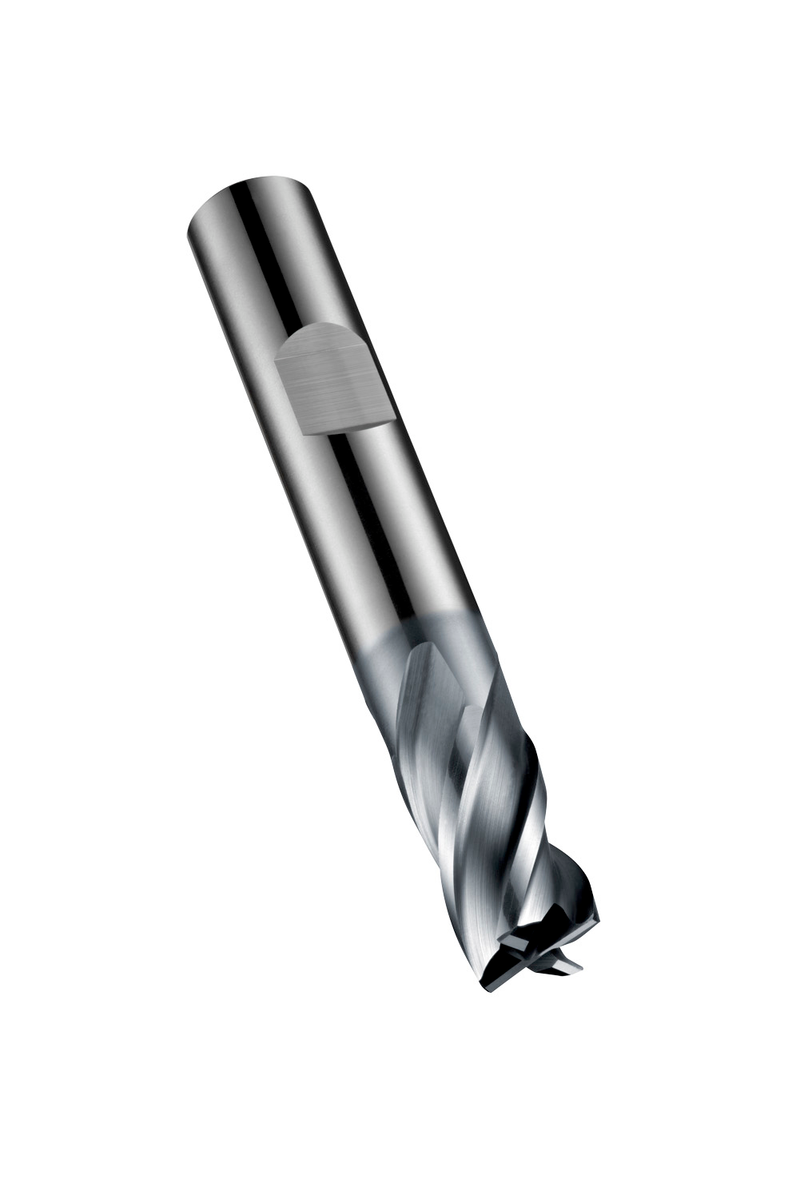

Fraise en bout extra-courte 4 dents, diamètre 12mm, longueur de coupe 16mm, longueur totale 73mm et chanfrein 45° de 0,2mm, conforme à la norme DIN 6527 K avec queue Weldon de 12mm, carbure monobloc avec revêtement AlCrN, hélice 34° et angle de dépouille 9° pour l'usinage en bout et en plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S804HB12.0
GradeAlCrN
Product Number5983499
Product FamilyS804HB

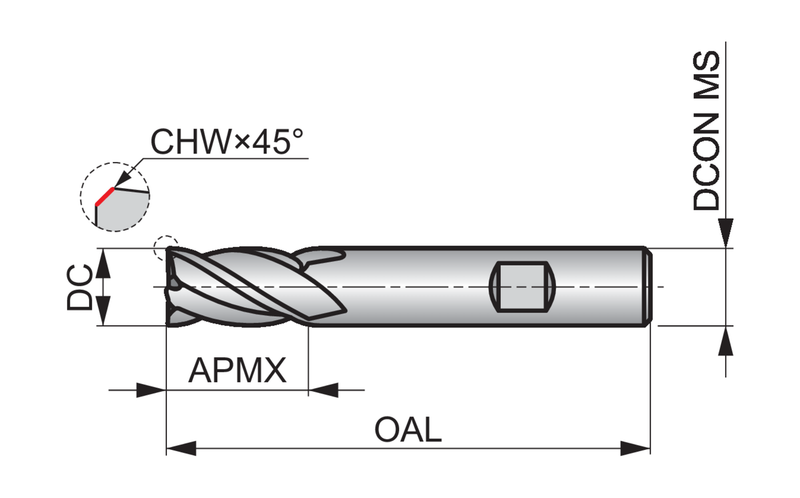

Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641781
EAN7320760641781
File Type Download
S804HB12.0 — 3D Model STP Download
S804HB12.0 — 2D Model DXF Download
S804HB12.0 — Line Drawing PDF Download
