S812HA10.0
S812HA10.0
S812HA10.0
S812HA10.0

S812HA10.0

UGC DOR5983501
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$99.37 CAD - $99.37 CAD
$99.37 CAD
$99.37 CAD - $99.37 CAD
$99.37 CAD

Vendu en lots de : 1

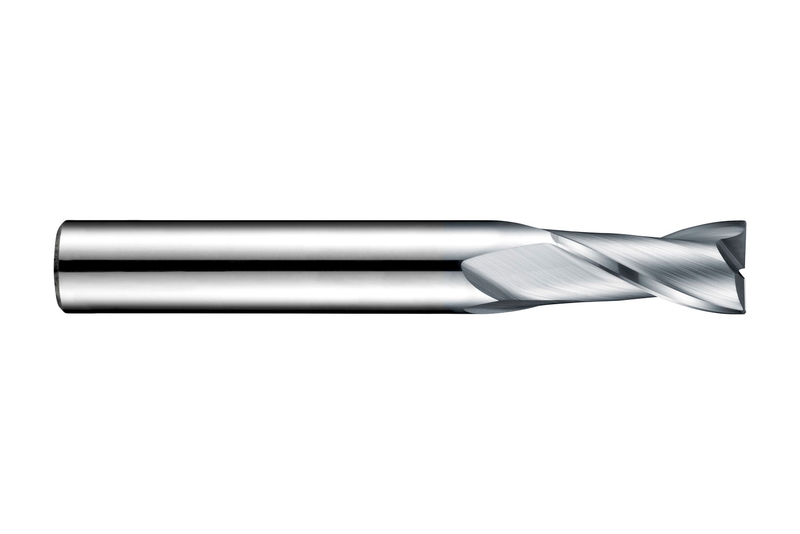

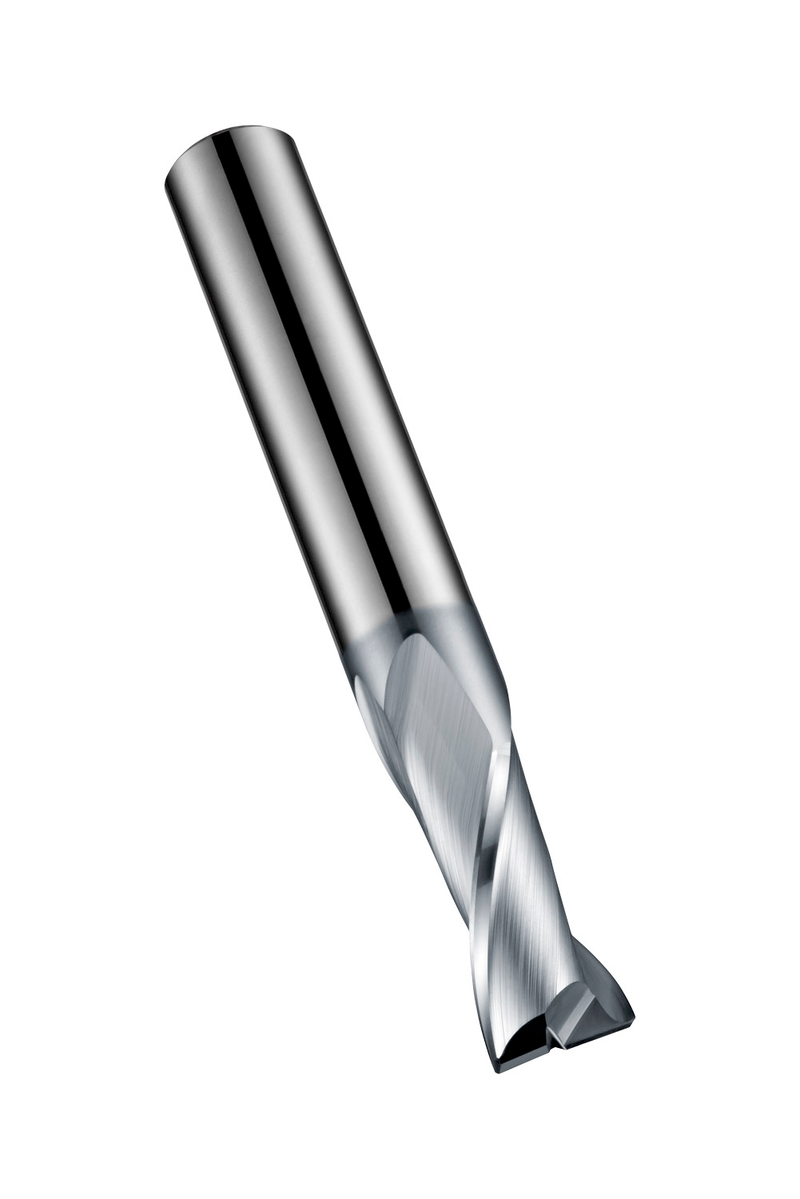

Fraise-scie courte 2 dents, diamètre 10 mm, longueur de coupe 19 mm, longueur totale 72 mm et chanfrein d'angle de 0,2 mm à 45°, conforme à la norme DIN 6527 L avec queue cylindrique de 10 mm, en carbure monobloc avec revêtement AlCrN, hélice à 28° et angle de dépouille de 9° pour le fraisage de rainures et le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, l'aluminium moulé et le cuivre ou les alliages de cuivre et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S812HA10.0
GradeAlCrN
Product Number5983501
Product FamilyS812HA
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

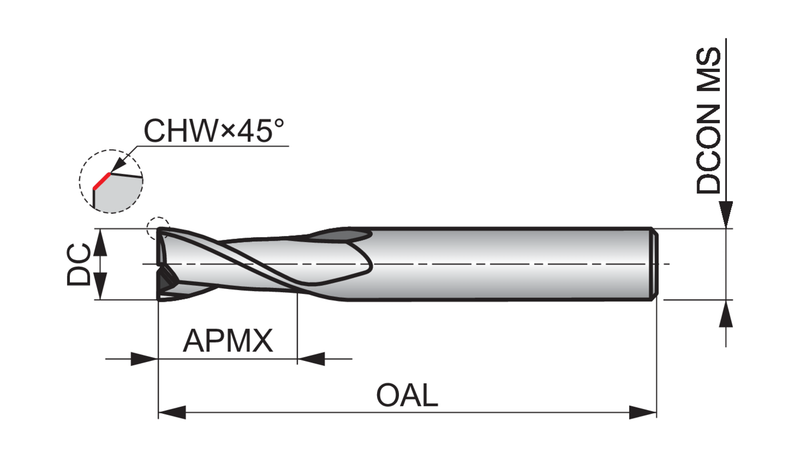

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number641934
EAN7320760641934
File Type Download
S812HA10.0 — 3D Model STP Download
S812HA10.0 — 2D Model DXF Download
S812HA10.0 — Line Drawing PDF Download
