UGC DOR5983514
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$350.44 CAD - $350.44 CAD
$350.44 CAD
$350.44 CAD - $350.44 CAD
$350.44 CAD

Vendu en lots de : 1

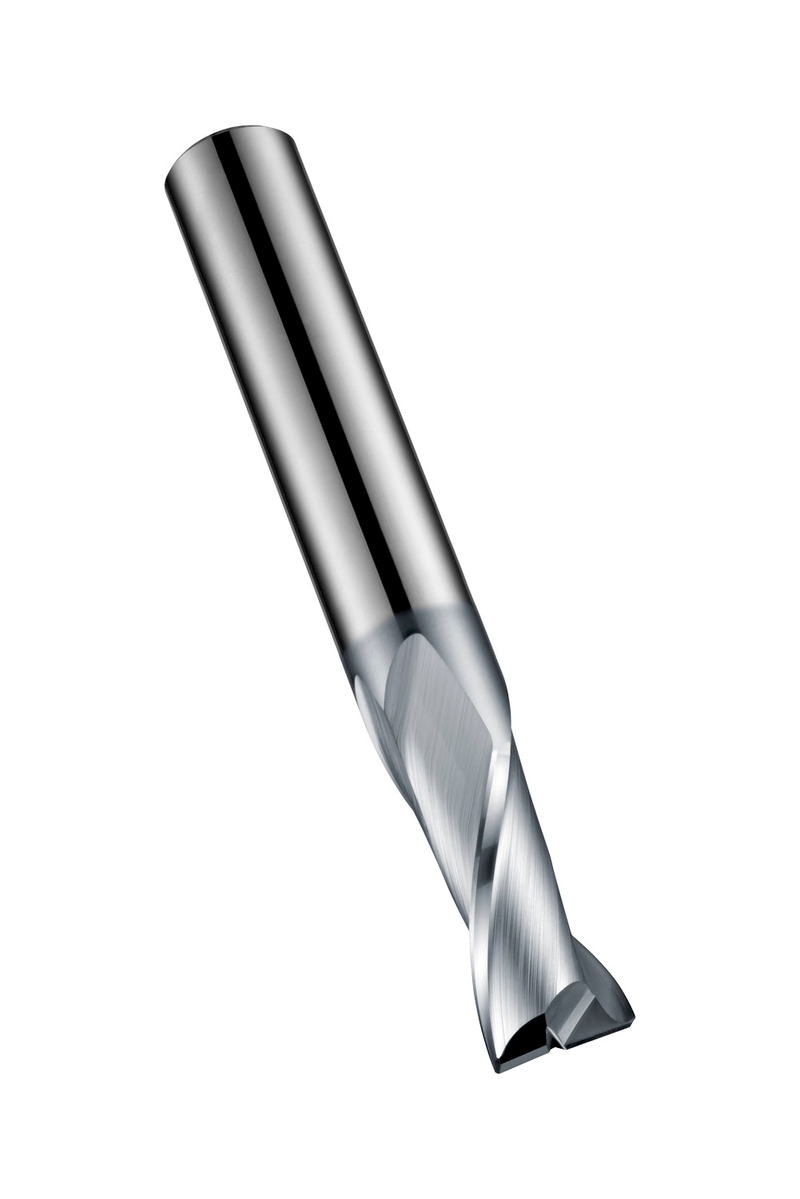

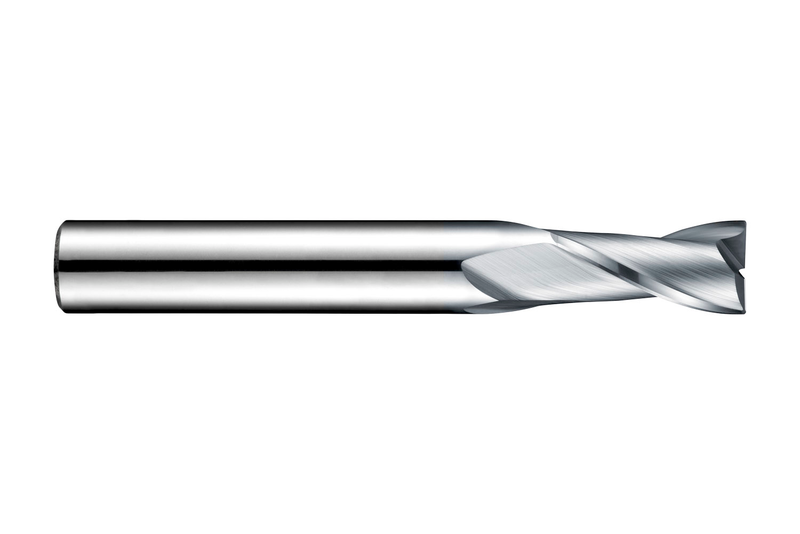

Fraise 2 dents pour rainures, série courte, diamètre 20mm, longueur de coupe 32mm, longueur totale 104mm, coins chanfreinés à 45° sur 0,3mm, selon la norme DIN 6527 L, avec queue cylindrique de 20mm, en carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9°, pour le fraisage de rainures et en ramping dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé ou moulé et le cuivre ou les alliages de cuivre et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S812HA20.0
GradeAlCrN
Product Number5983514
Product FamilyS812HA

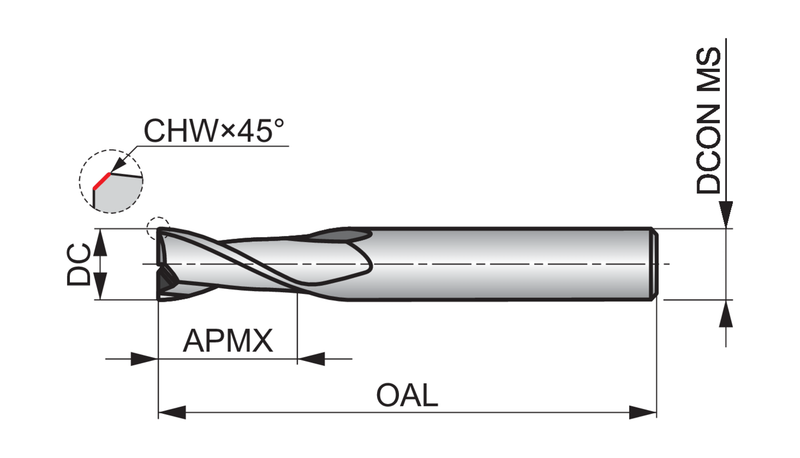

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number641989
EAN7320760641989
File Type Download
S812HA20.0 — 3D Model STP Download
S812HA20.0 — 2D Model DXF Download
S812HA20.0 — Line Drawing PDF Download
