UGC DOR5983520
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$241.56 CAD - $241.56 CAD
$241.56 CAD
$241.56 CAD - $241.56 CAD
$241.56 CAD

Vendu en lots de : 1

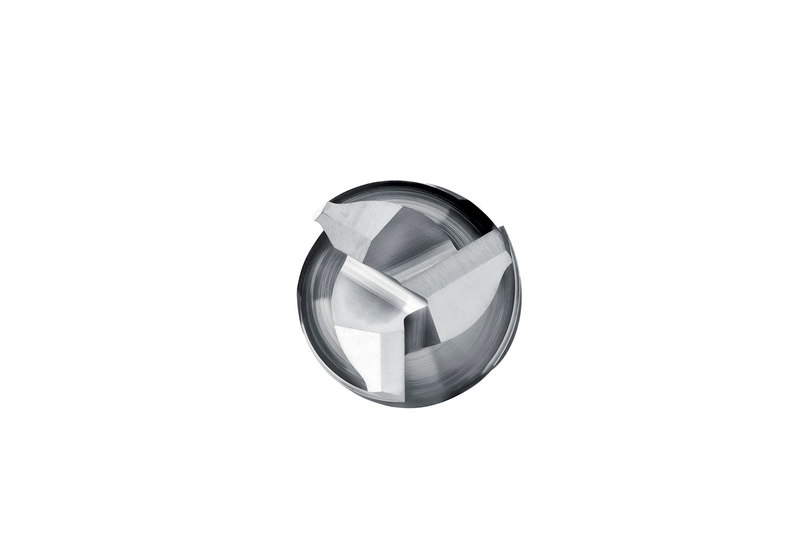

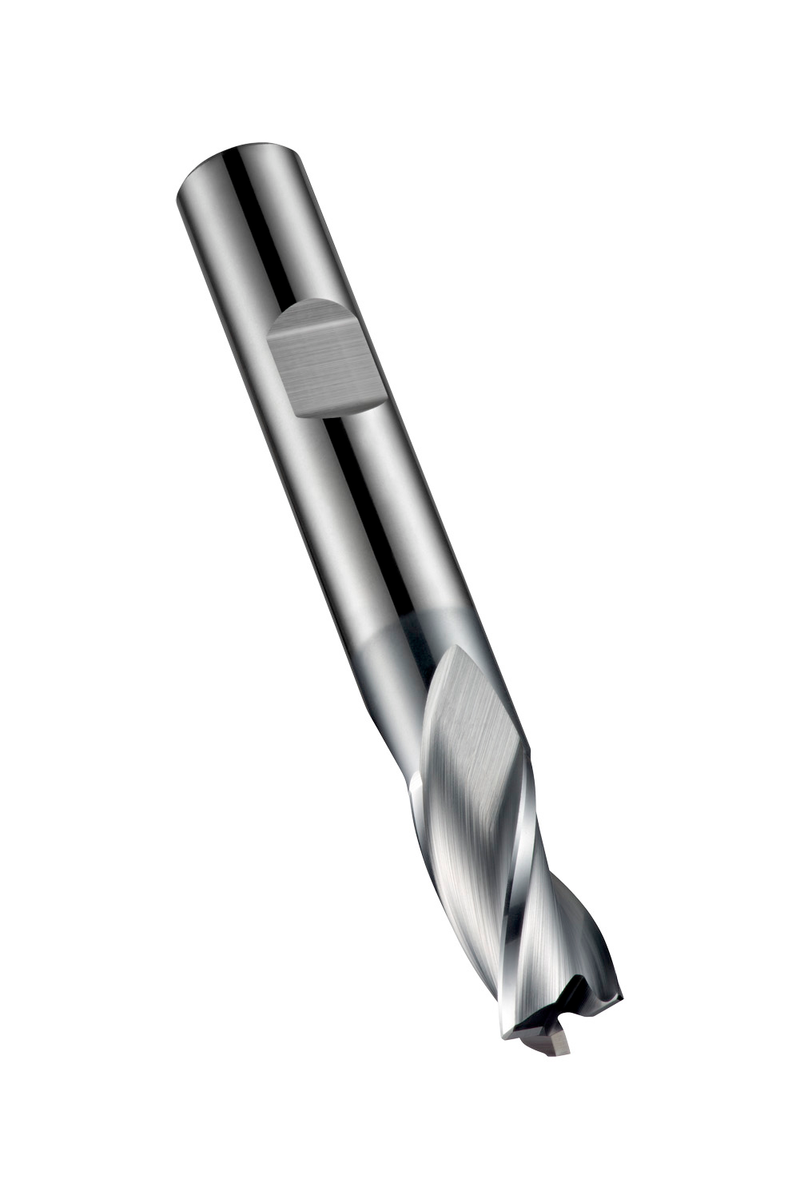

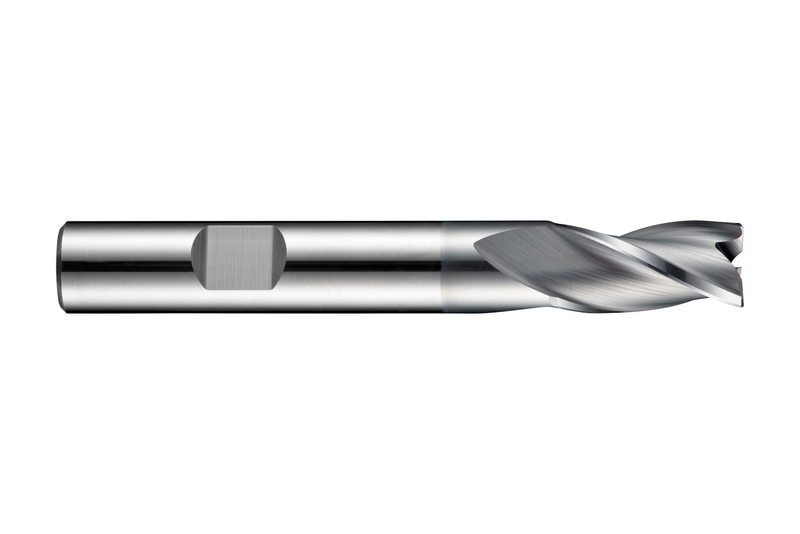

Fraise-scie à rainurer à 3 dents de série courte, diamètre 16 mm avec une longueur de coupe de 26 mm, longueur totale de 92 mm et bords d'angle chanfreinés de 0,2 mm à 45°, selon la norme DIN 6527 L avec une queue Weldon de 16 mm, en carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage d'épaulements, le plongée, le fraisage de rainures et le fraisage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)S813HB16.0
Product Name (ISO)S813HB16,0
GradeAlCrN
Product Number5983520
Product FamilyS813HB

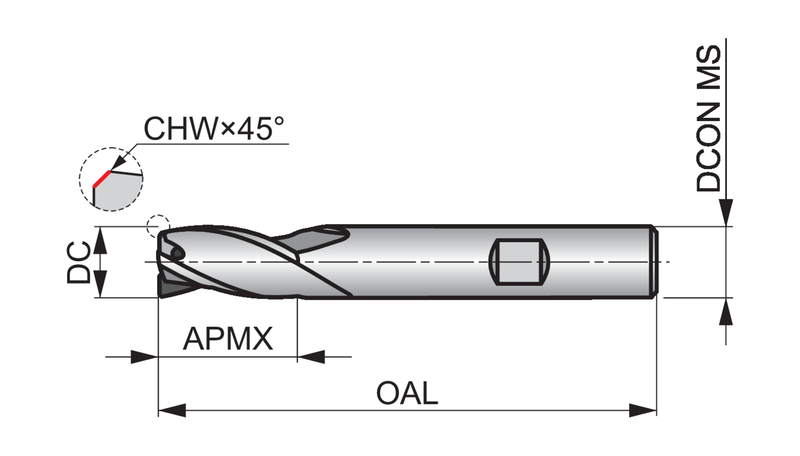

Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642474
EAN7320760642474
File Type Download
S813HB16.0 — 3D Model STP Download
S813HB16.0 — 2D Model DXF Download
S813HB16.0 — Line Drawing PDF Download
