UGC DOR5983527
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.80 CAD - $51.80 CAD
$51.80 CAD
$51.80 CAD - $51.80 CAD
$51.80 CAD

Vendu en lots de : 1

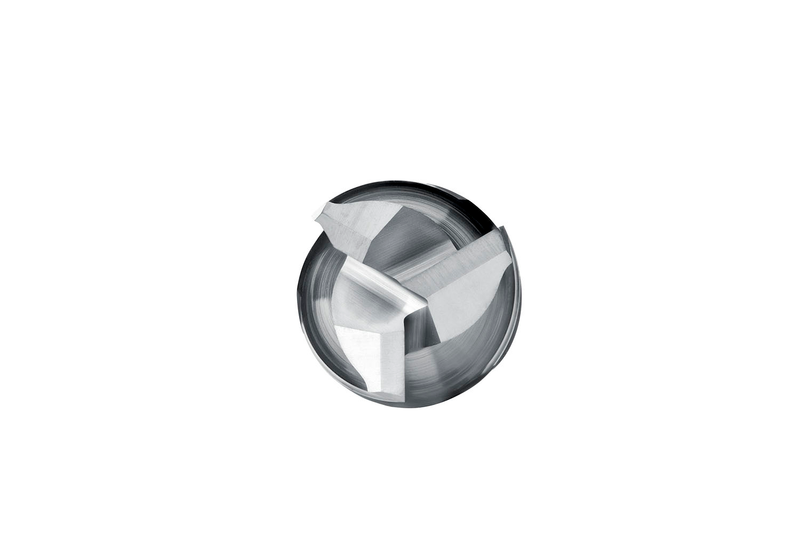

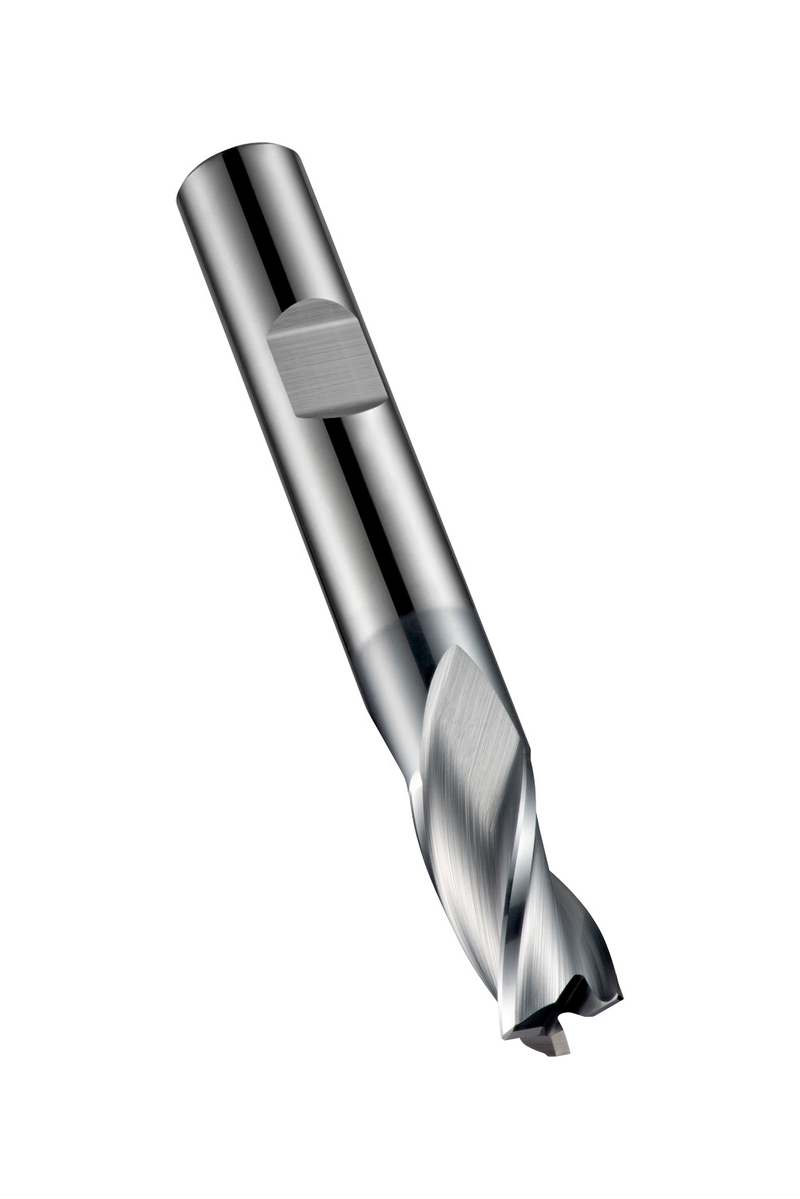

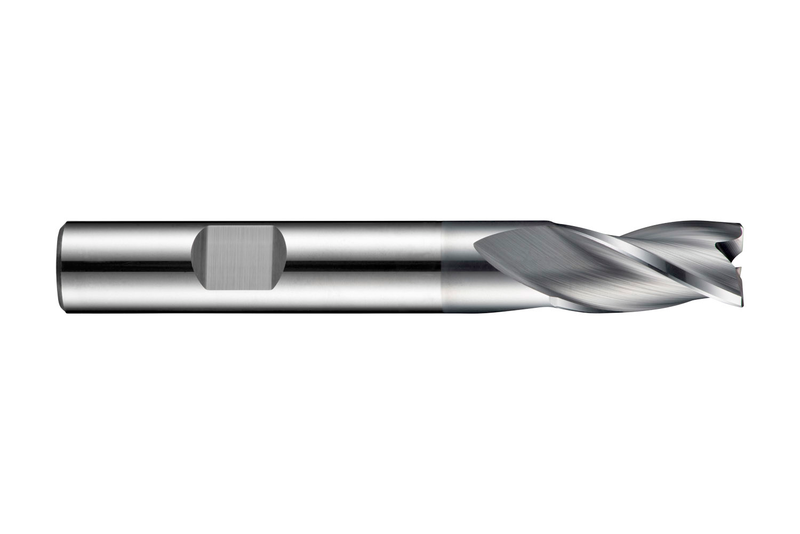

Fraise-scie à queue courte à 3 dents, diamètre de 2 mm, longueur de coupe de 6 mm et longueur totale de 57 mm, selon la norme DIN 6527 L avec une queue Weldon de 6 mm, en carbure monobloc avec revêtement AlCrN, hélice à 28° et angle de dépouille de 9° pour le fraisage d'épaulements, le fraisage en plongée, le fraisage de rainures et le fraisage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S813HB2.0
GradeAlCrN
Product Number5983527
Product FamilyS813HB

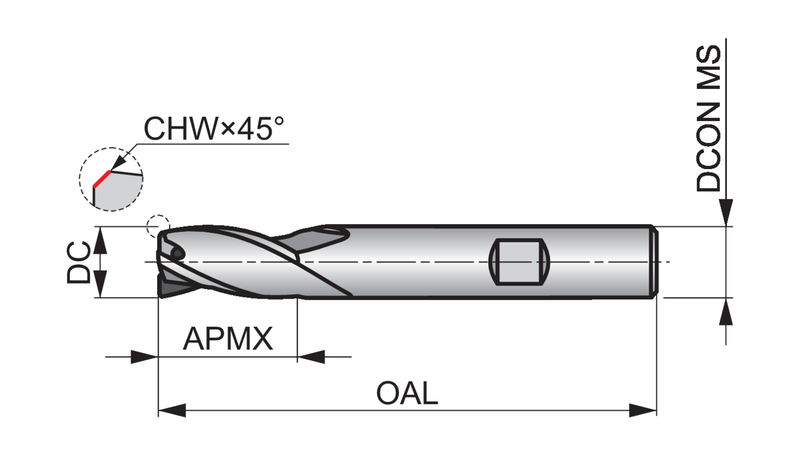

Insert Geometry
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642337
EAN7320760642337
File Type Download
S813HB2.0 — 3D Model STP Download
S813HB2.0 — 2D Model DXF Download
S813HB2.0 — Line Drawing PDF Download
