UGC DOR5983529
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.91 CAD - $53.91 CAD
$53.91 CAD
$53.91 CAD - $53.91 CAD
$53.91 CAD

Vendu en lots de : 1

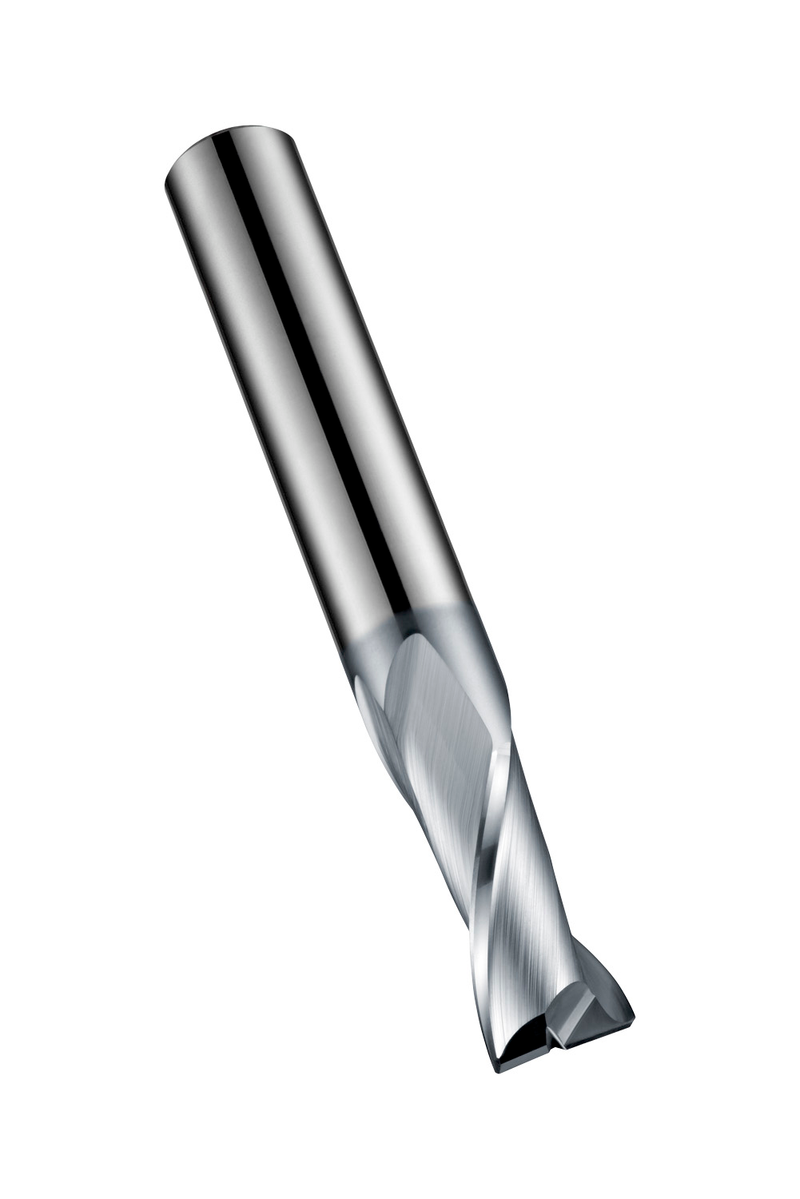

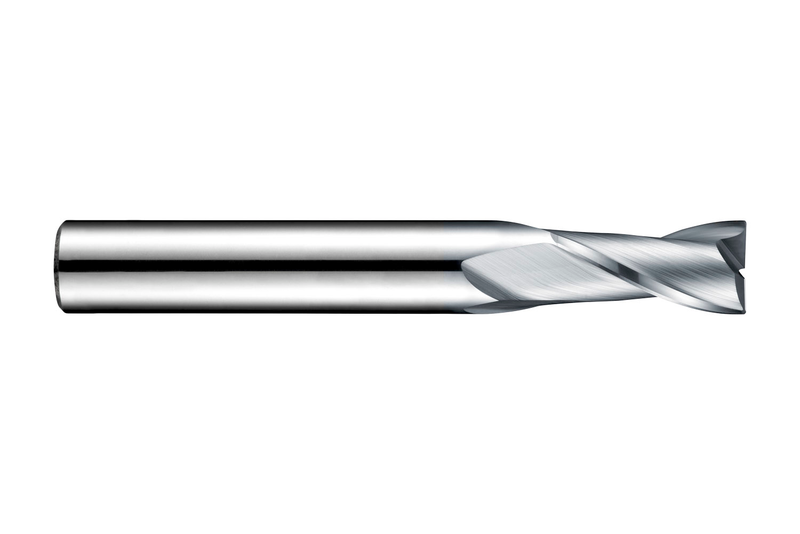

Fraise 2 dents pour rainurage série courte, diamètre 5 mm, longueur de coupe 10 mm, longueur totale 57 mm et chanfrein d'angle 45° de 0,13 mm, conforme à la norme DIN 6527 L, avec queue cylindrique de 6 mm, carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé ou moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S812HA5.0
GradeAlCrN
Product Number5983529
Product FamilyS812HA
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm

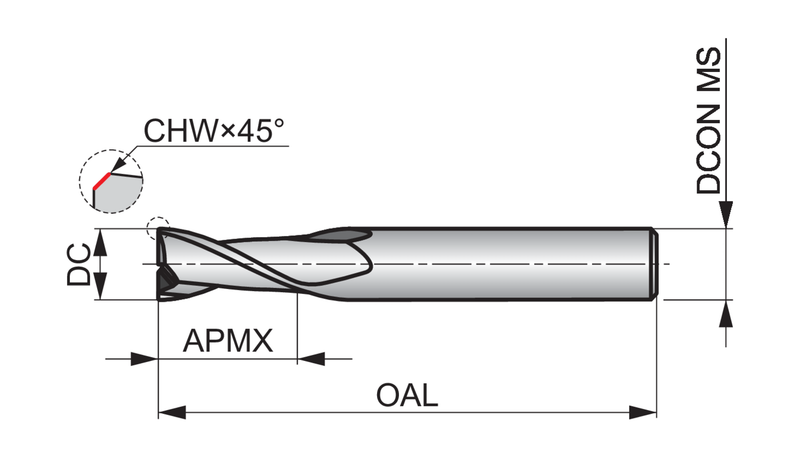

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number641880
EAN7320760641880
File Type Download
S812HA5.0 — 3D Model STP Download
S812HA5.0 — 2D Model DXF Download
S812HA5.0 — Line Drawing PDF Download
