UGC DOR5983544
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.13 CAD - $104.13 CAD
$104.13 CAD
$104.13 CAD - $104.13 CAD
$104.13 CAD

Vendu en lots de : 1

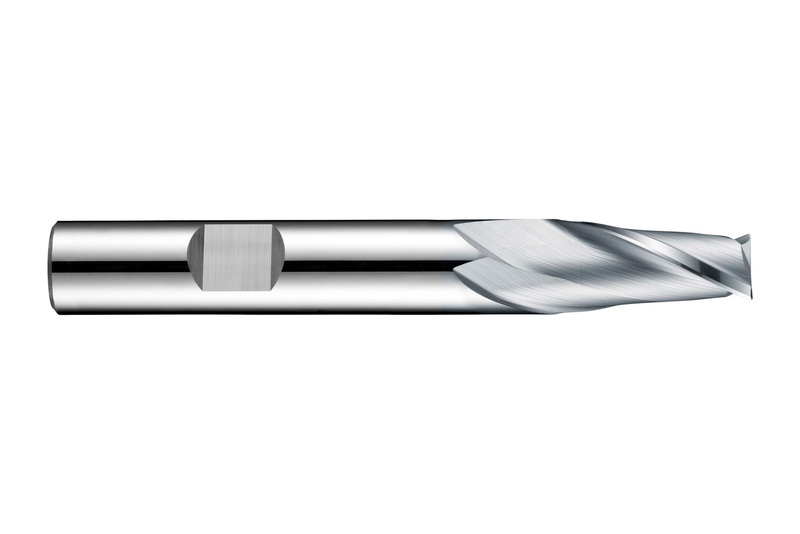

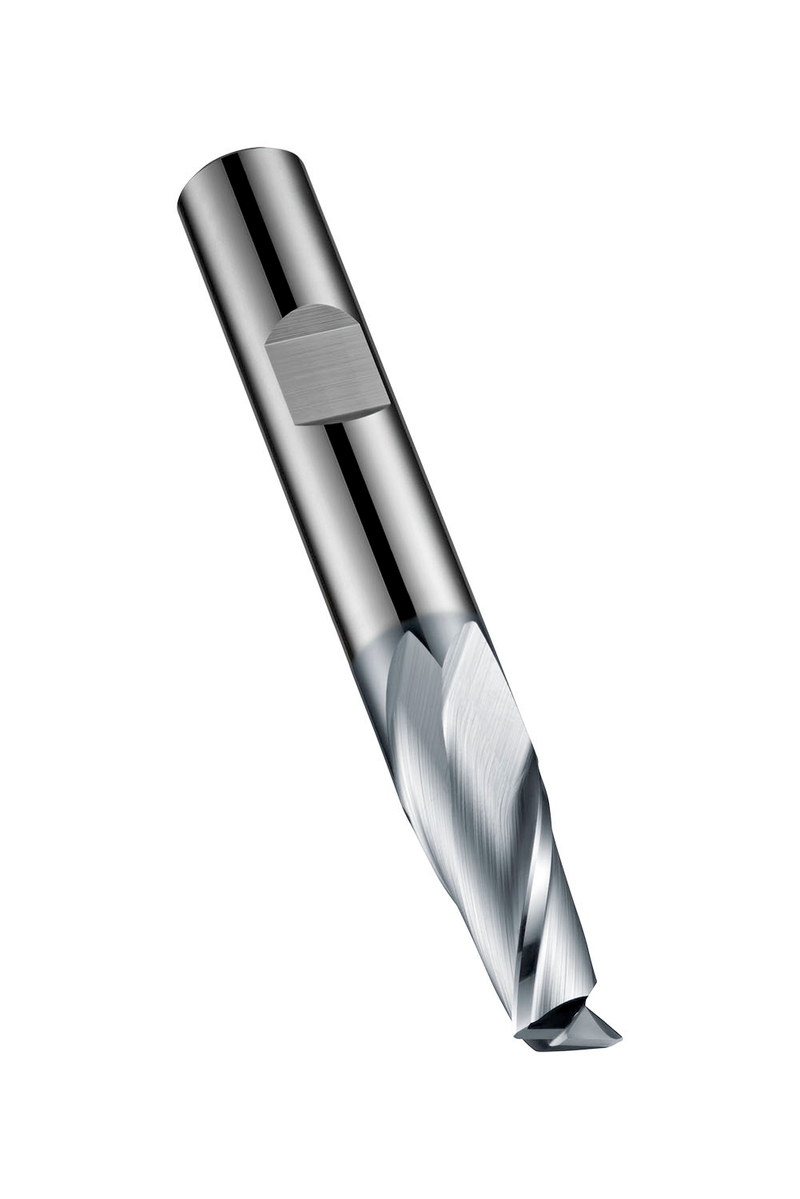

Fraise 2 dents pour rainures, série courte, diamètre 10 mm, longueur de coupe 19 mm, longueur totale 72 mm, chanfrein à 45° de 0,2 mm, selon la norme DIN 6527 L, avec une queue Weldon de 10 mm, en carbure monobloc avec revêtement AlCrN, hélice à 28° et angle de dépouille à 9° pour le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium forgé, l'aluminium moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S812HB10.0
GradeAlCrN
Product Number5983544
Product FamilyS812HB
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

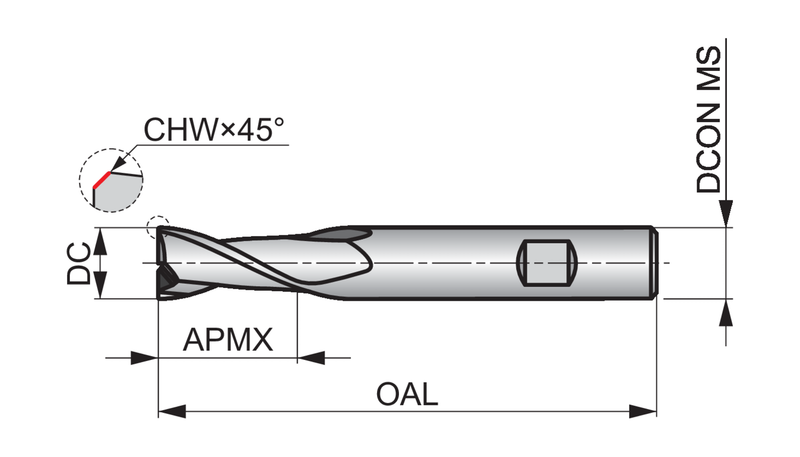

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642108
EAN7320760642108
File Type Download
S812HB10.0 — 3D Model STP Download
S812HB10.0 — 2D Model DXF Download
S812HB10.0 — Line Drawing PDF Download
