UGC DOR5983550
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.50 CAD - $55.50 CAD
$55.50 CAD
$55.50 CAD - $55.50 CAD
$55.50 CAD

Vendu en lots de : 1

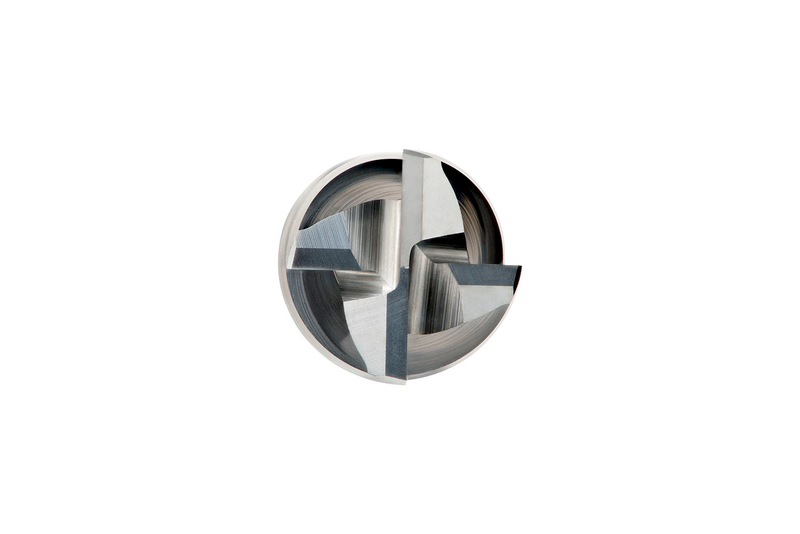

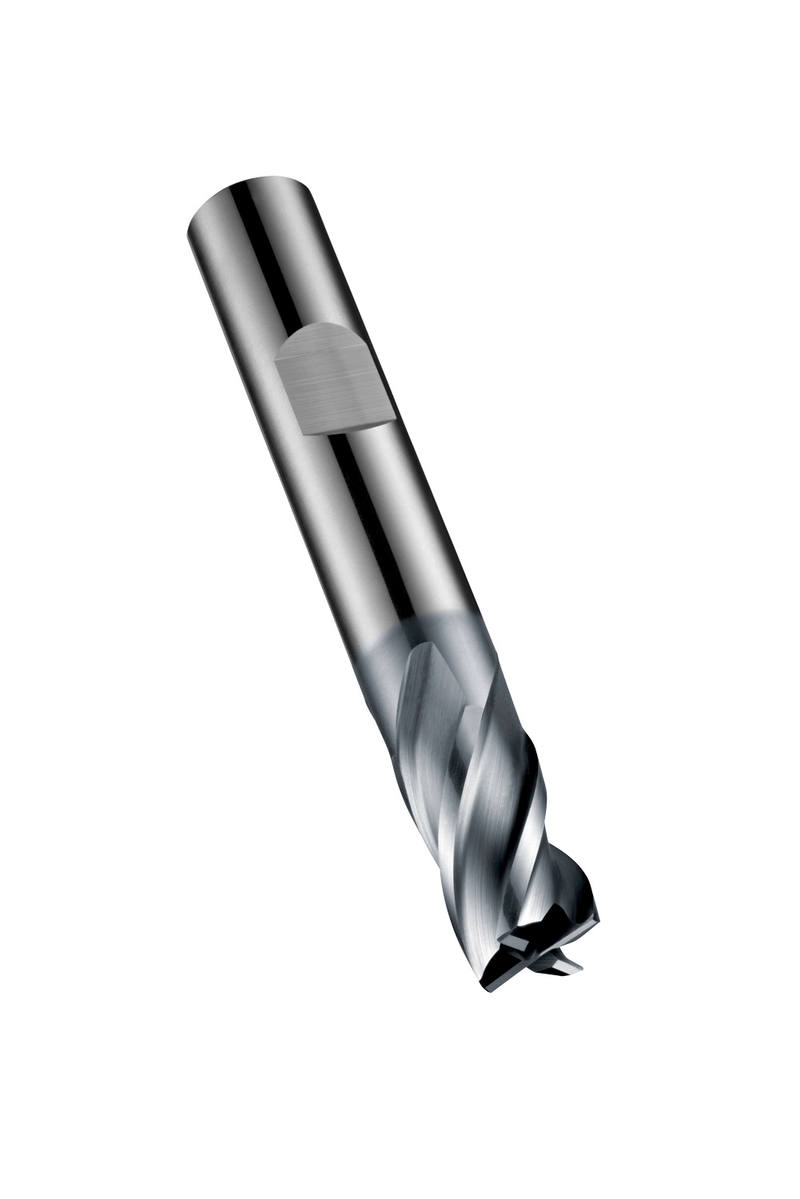

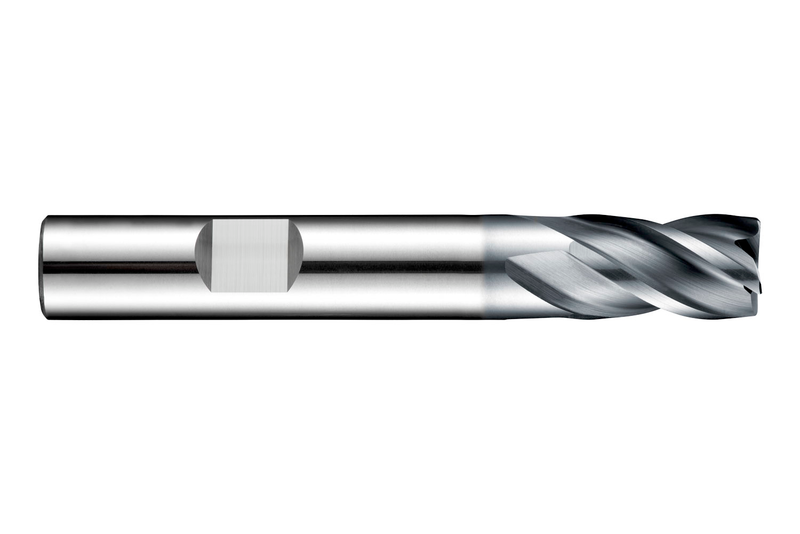

Fraise en carbure monobloc à 4 dents, extra-courte, diamètre 2 mm, longueur de coupe 4 mm et longueur totale 50 mm, conforme à la norme DIN 6527 K, queue Weldon de 6 mm, revêtement AlCrN, hélice 34° et angle de dépouille 9° pour le fraisage d'épaulements et l'usinage en plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S804HB2.0
GradeAlCrN
Product Number5983550
Product FamilyS804HB
Insert Geometry
Depth of Cut Max — in (APMX)0.1575"
Depth of Cut Max — mm (APMX)4.0 mm

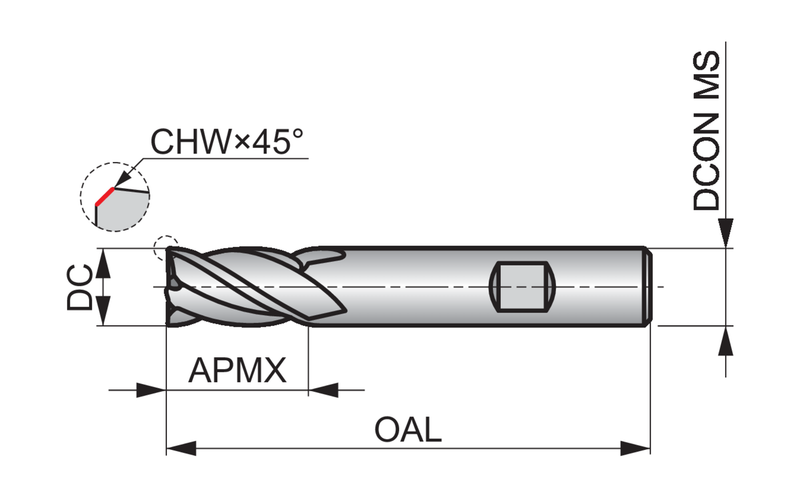

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641712
EAN7320760641712
File Type Download
S804HB2.0 — 3D Model STP Download
S804HB2.0 — 2D Model DXF Download
S804HB2.0 — Line Drawing PDF Download
