UGC DOR5983552
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.61 CAD - $57.61 CAD
$57.61 CAD
$57.61 CAD - $57.61 CAD
$57.61 CAD

Vendu en lots de : 1

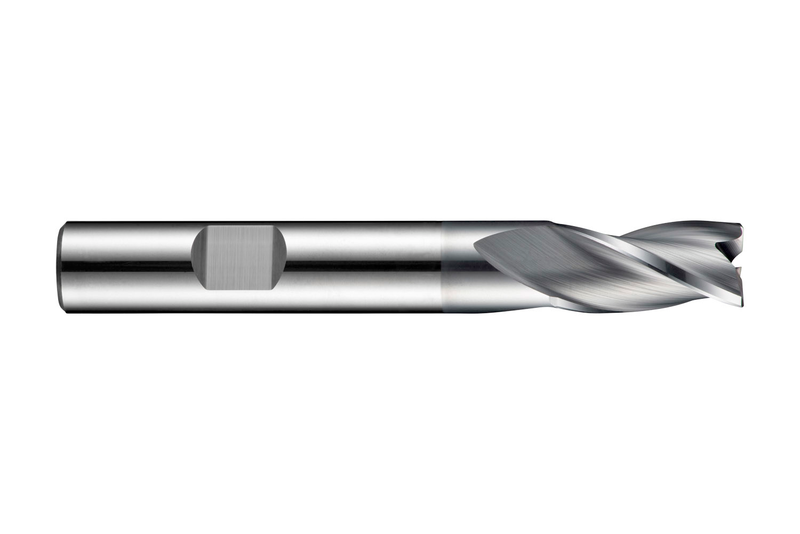

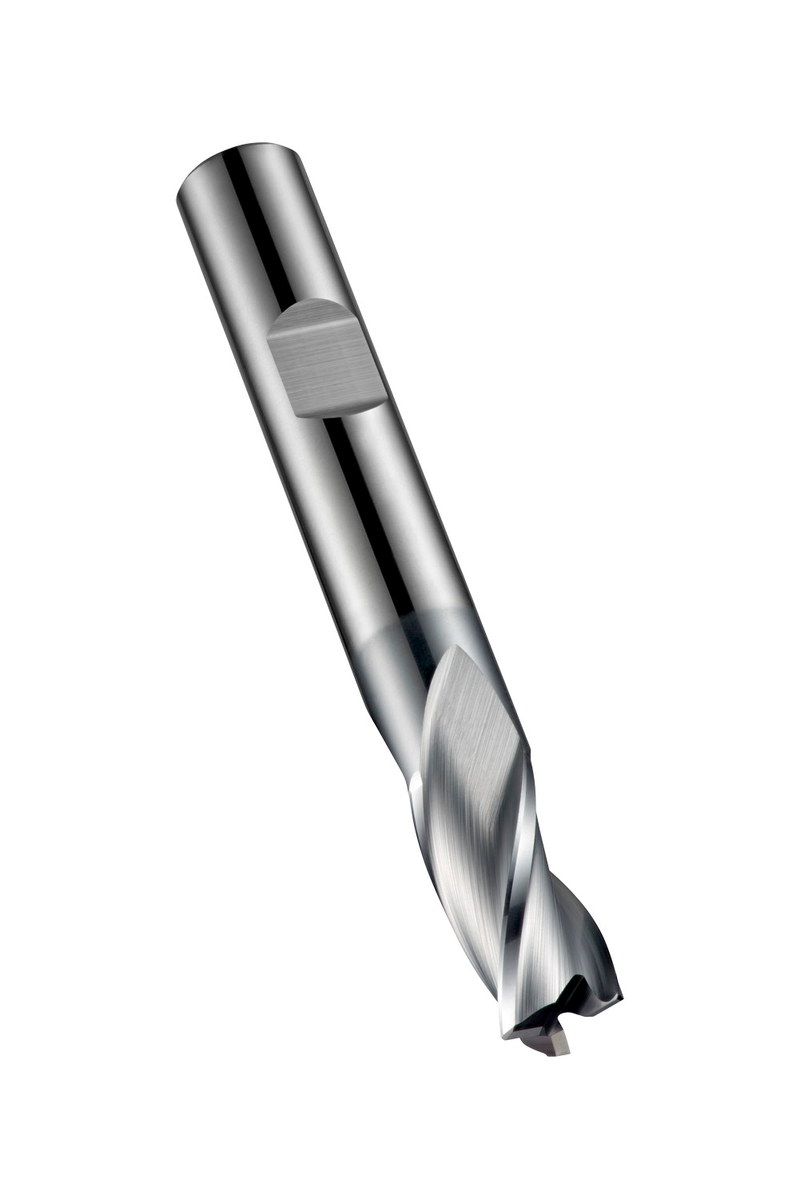

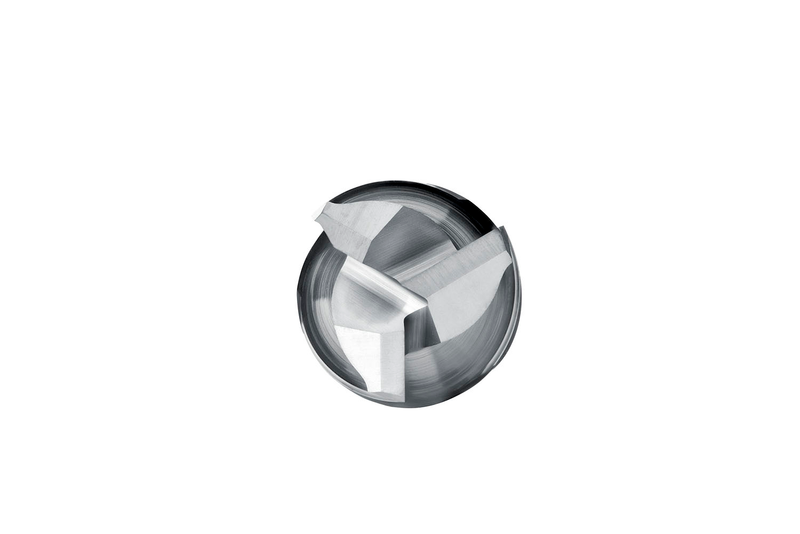

Fraise-scie courte à 3 dents, diamètre 6mm avec une longueur de coupe de 10mm, une longueur totale de 57mm et des bords chanfreinés à 45° de 0,13mm, selon la norme DIN 6527 L avec une queue Weldon de 6mm, en carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dégagement de 9° pour le fraisage d'épaulement, le plongement, le fraisage de rainures et le fraisage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et l'aluminium moulé, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S813HB6.0
GradeAlCrN
Product Number5983552
Product FamilyS813HB
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm

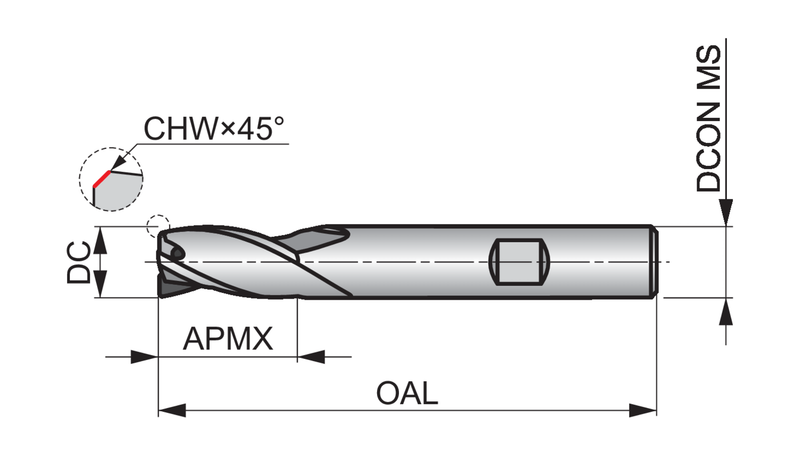

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642405
EAN7320760642405
File Type Download
S813HB6.0 — 3D Model STP Download
S813HB6.0 — 2D Model DXF Download
S813HB6.0 — Line Drawing PDF Download
