UGC DOR5983553
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.24 CAD - $180.24 CAD
$180.24 CAD
$180.24 CAD - $180.24 CAD
$180.24 CAD

Vendu en lots de : 1

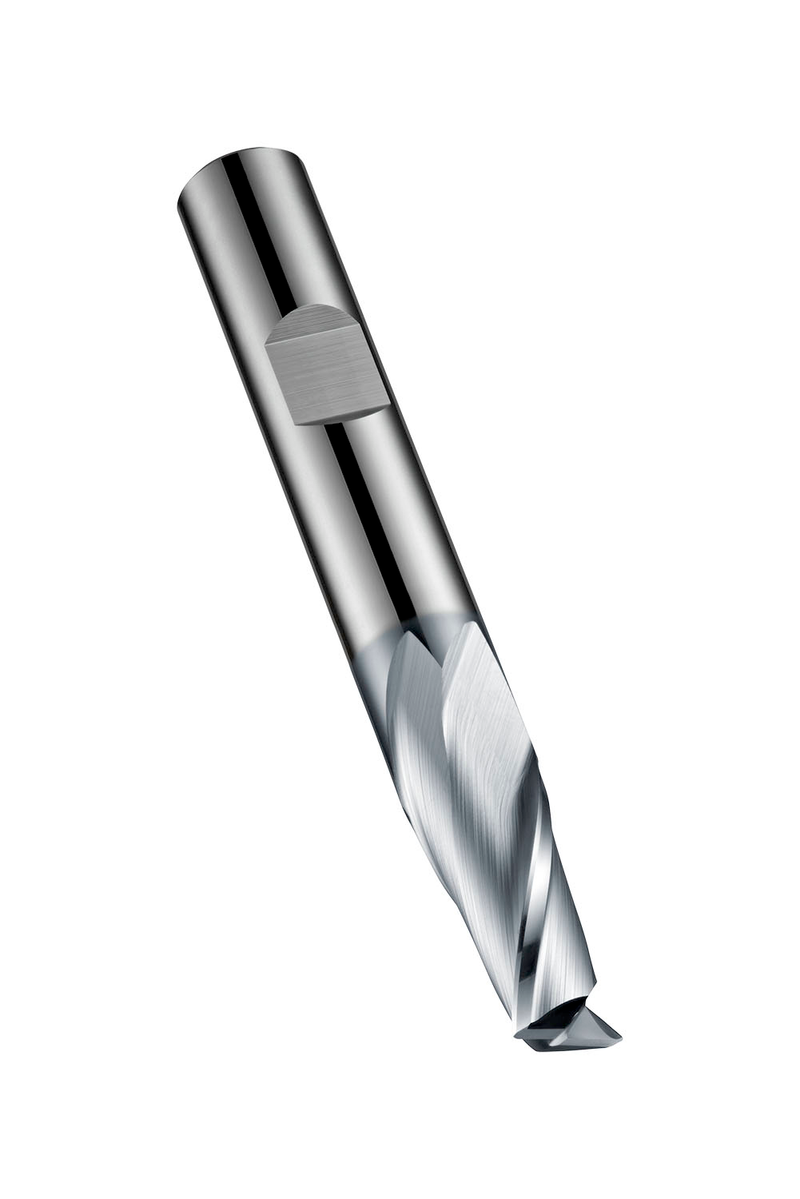

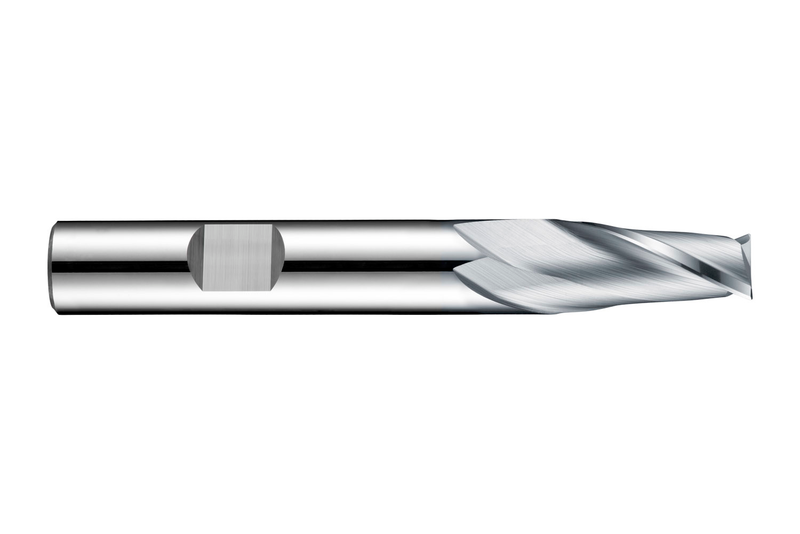

Fraise 2 dents pour rainures, série courte, diamètre 14 mm avec 22 mm de longueur de coupe, 83 mm de longueur totale et chanfrein 45° de 0,2 mm, selon la norme DIN 6527 L avec queue Weldon de 14 mm, en carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, moulé et le cuivre ou les alliages de cuivre et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S812HB14.0
GradeAlCrN
Product Number5983553
Product FamilyS812HB

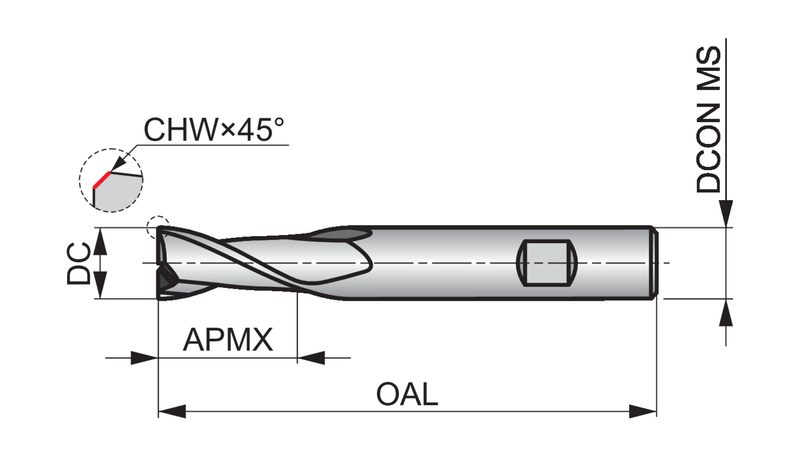

Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642122
EAN7320760642122
File Type Download
S812HB14.0 — 3D Model STP Download
S812HB14.0 — 2D Model DXF Download
S812HB14.0 — Line Drawing PDF Download
