UGC DOR5983562
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.74 CAD - $50.74 CAD
$50.74 CAD
$50.74 CAD - $50.74 CAD
$50.74 CAD

Vendu en lots de : 1

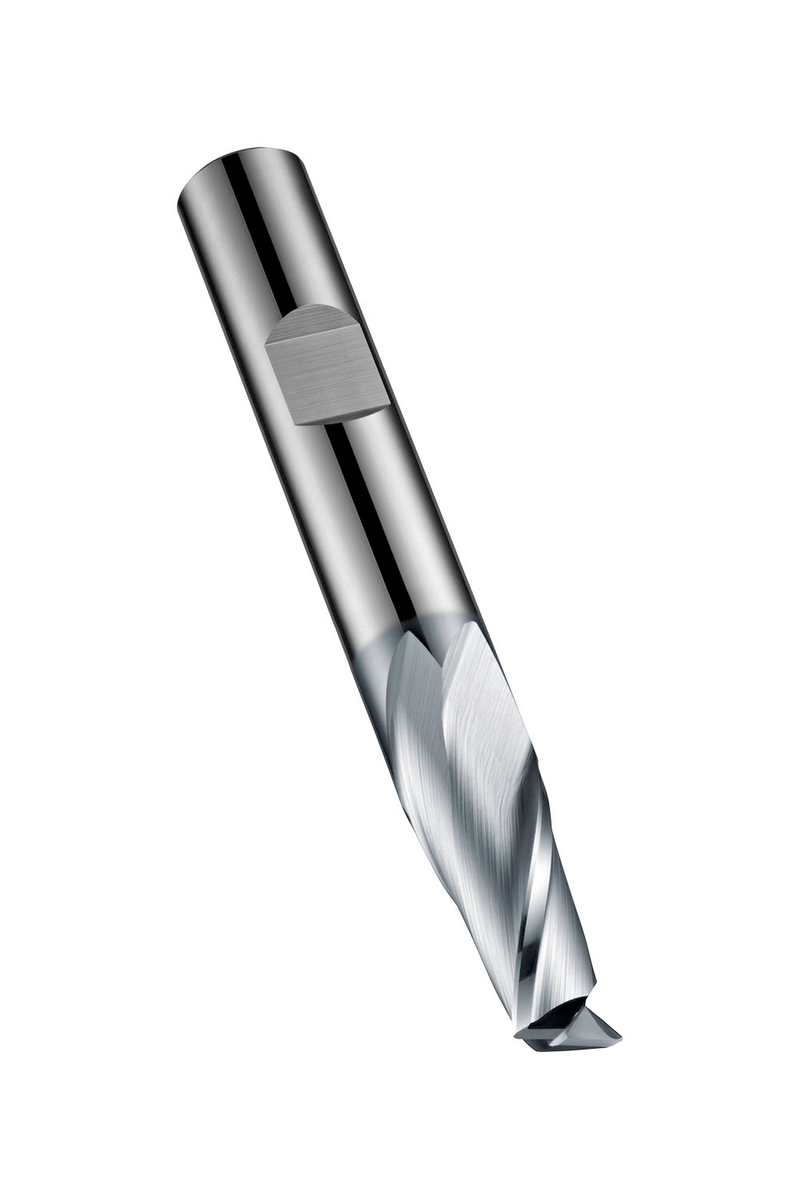

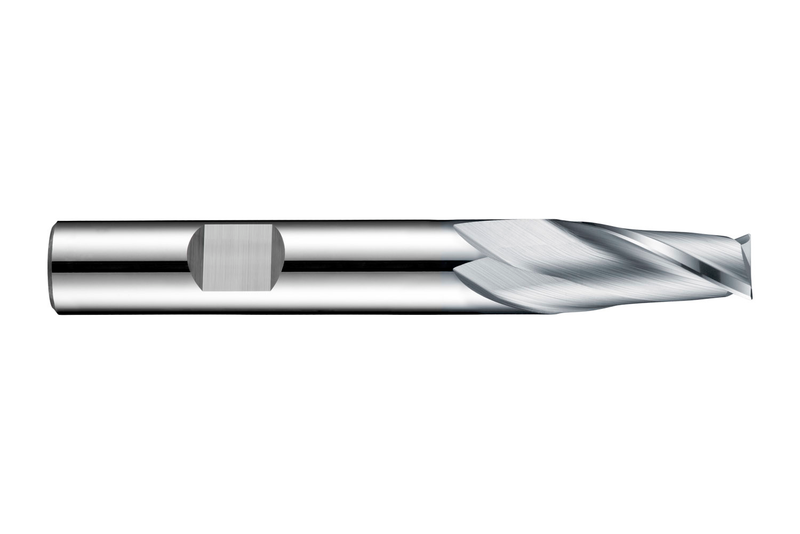

Fraise 2 dents pour rainures, série courte, diamètre 2 mm, longueur de coupe 6 mm et longueur totale 57 mm, conforme à la norme DIN 6527 L avec queue Weldon 6 mm, carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour le fraisage de rainures et l'usinage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, l'aluminium moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S812HB2.0
GradeAlCrN
Product Number5983562
Product FamilyS812HB
Insert Geometry
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm

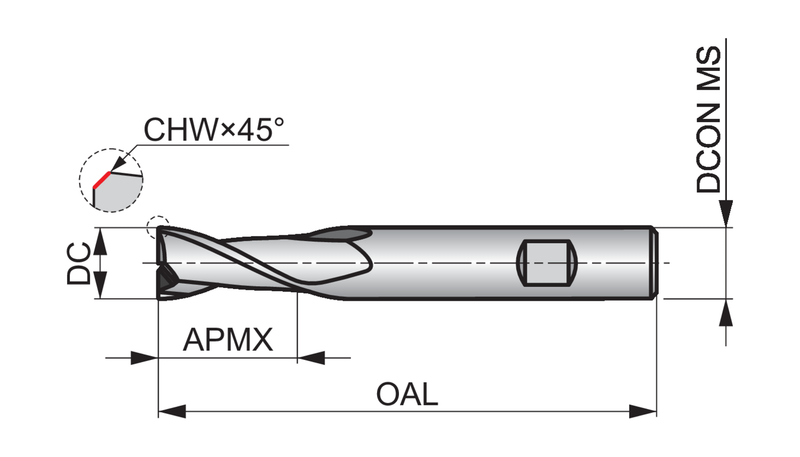

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number641996
EAN7320760641996
File Type Download
S812HB2.0 — 3D Model STP Download
S812HB2.0 — 2D Model DXF Download
S812HB2.0 — Line Drawing PDF Download
