S814HA10.0
S814HA10.0
S814HA10.0
S814HA10.0

S814HA10.0

UGC DOR5983564
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$111.00 CAD - $111.00 CAD
$111.00 CAD
$111.00 CAD - $111.00 CAD
$111.00 CAD

Vendu en lots de : 1

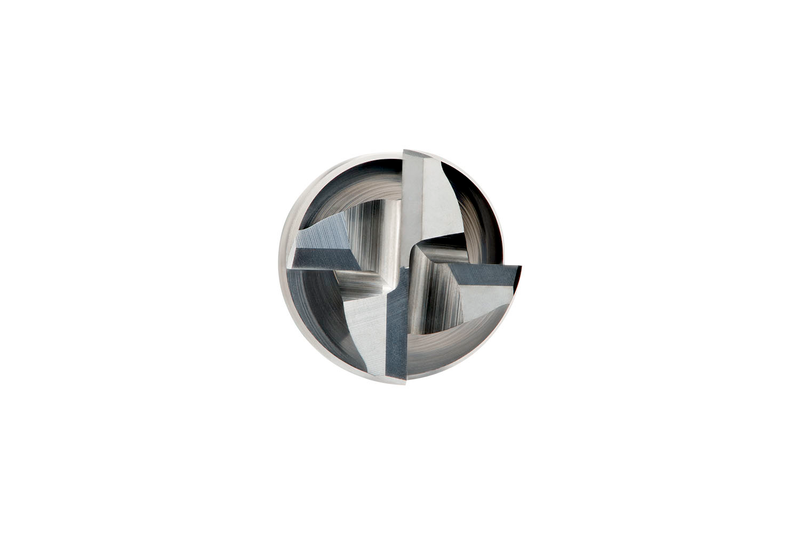

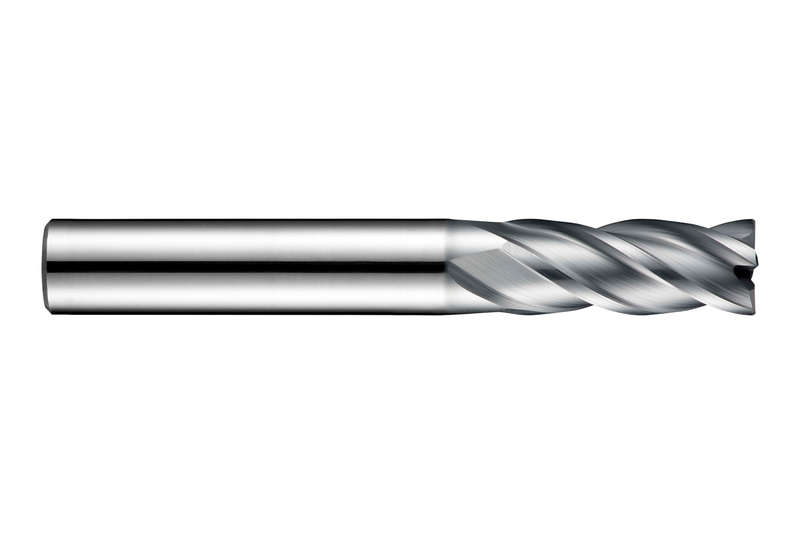

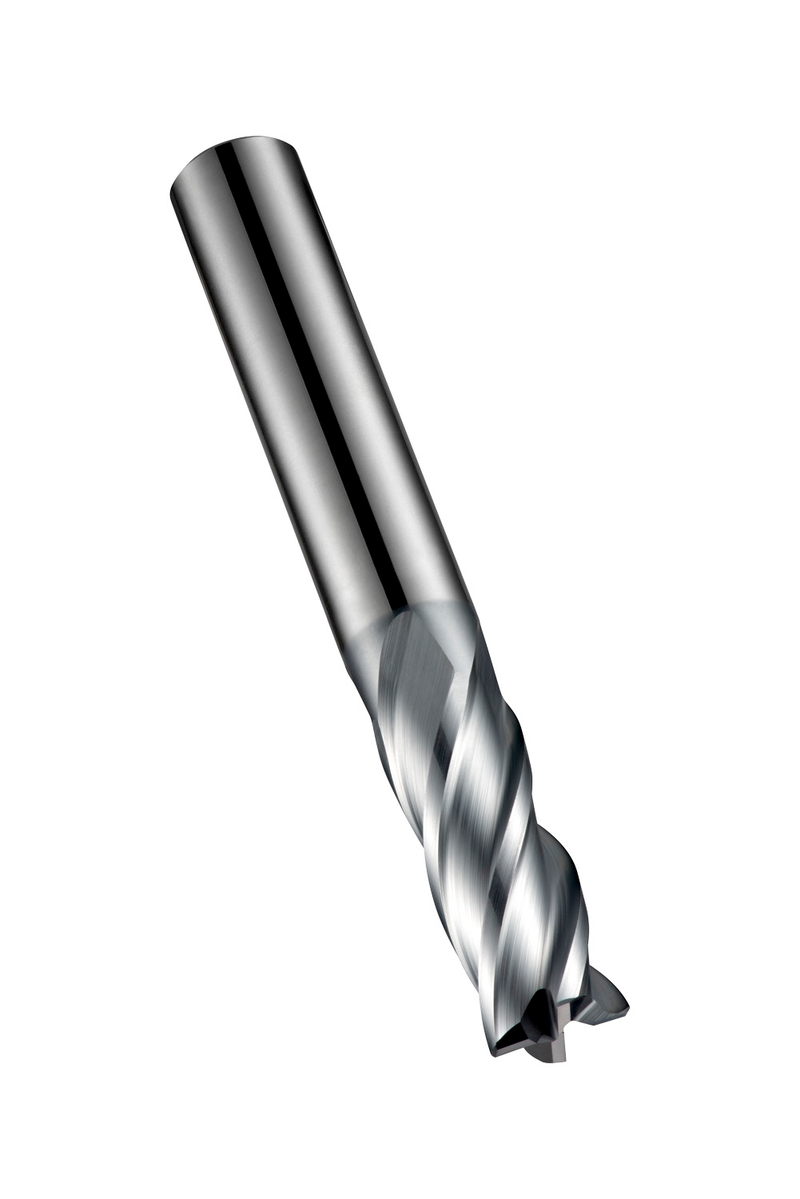

Fraise en carbure monobloc à queue cylindrique, hélice à 34°, 4 dents, diamètre 10mm, longueur de coupe 22mm, longueur totale 72mm, chanfrein de 0.2mm à 45° sur les arêtes selon la norme DIN 6527 L, queue de 10mm, revêtement AlCrN, angle de coupe de 9° pour le fraisage d'épaulements et le plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S814HA10.0
GradeAlCrN
Product Number5983564
Product FamilyS814HA

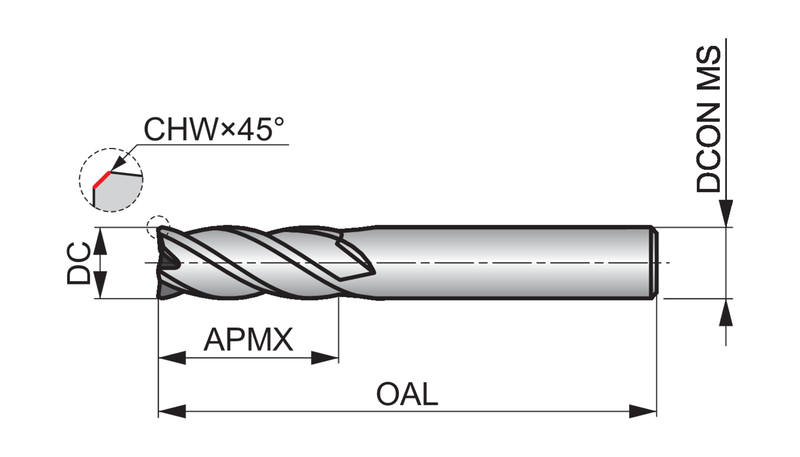

Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number642566
EAN7320760642566
File Type Download
S814HA10.0 — 3D Model STP Download
S814HA10.0 — 2D Model DXF Download
S814HA10.0 — Line Drawing PDF Download
