UGC DOR5983570
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$152.76 CAD - $152.76 CAD
$152.76 CAD
$152.76 CAD - $152.76 CAD
$152.76 CAD

Vendu en lots de : 1

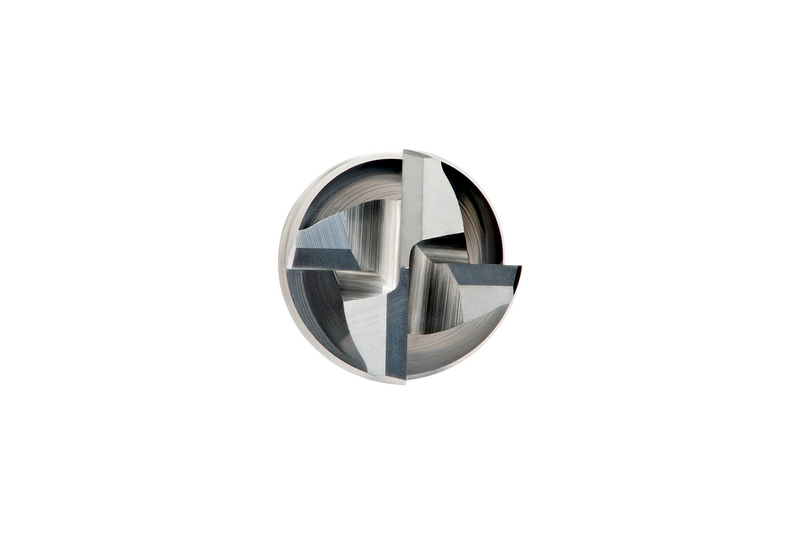

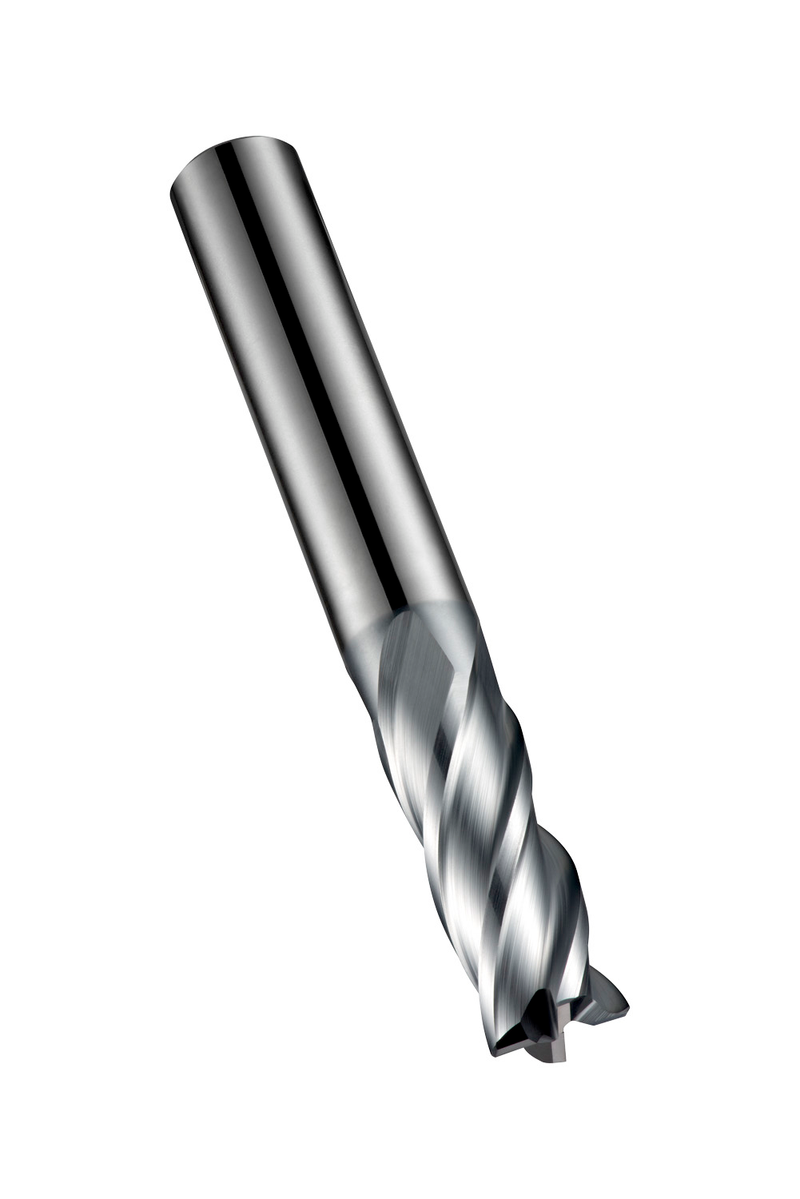

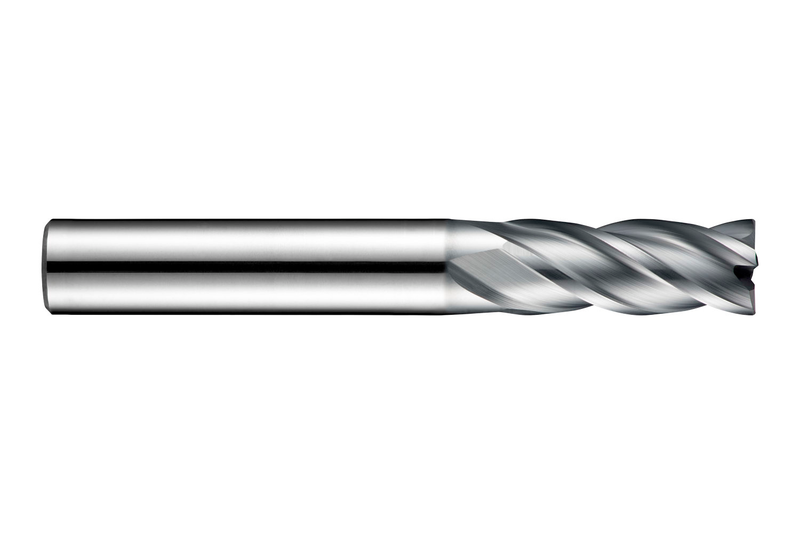

Fraise en bout série courte 4 dents, diamètre 12mm, longueur de coupe 26mm, longueur totale 83mm et chanfrein d'angle 45° de 0.2mm, conforme à la norme DIN 6527 L avec une queue cylindrique de 12mm, en carbure monobloc avec revêtement AlCrN, hélice 34° et angle de dépouille 9° pour l'usinage en bout et en plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S814HA12.0
GradeAlCrN
Product Number5983570
Product FamilyS814HA
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm

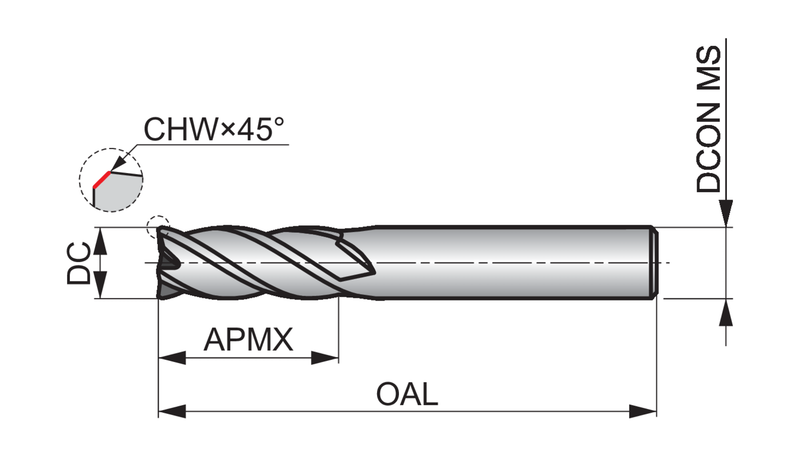

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number642573
EAN7320760642573
File Type Download
S814HA12.0 — 3D Model STP Download
S814HA12.0 — 2D Model DXF Download
S814HA12.0 — Line Drawing PDF Download
