S814HA16.0
S814HA16.0
S814HA16.0
S814HA16.0

S814HA16.0

UGC DOR5983573
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$253.71 CAD - $253.71 CAD
$253.71 CAD
$253.71 CAD - $253.71 CAD
$253.71 CAD

Vendu en lots de : 1

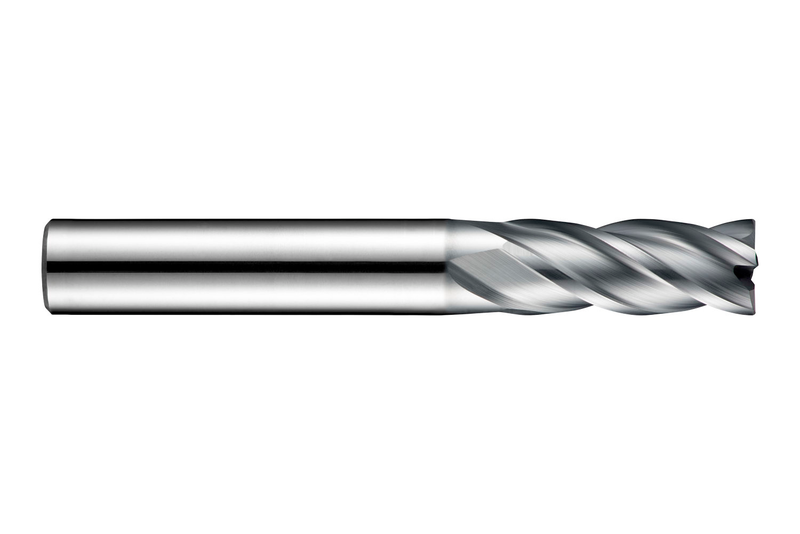

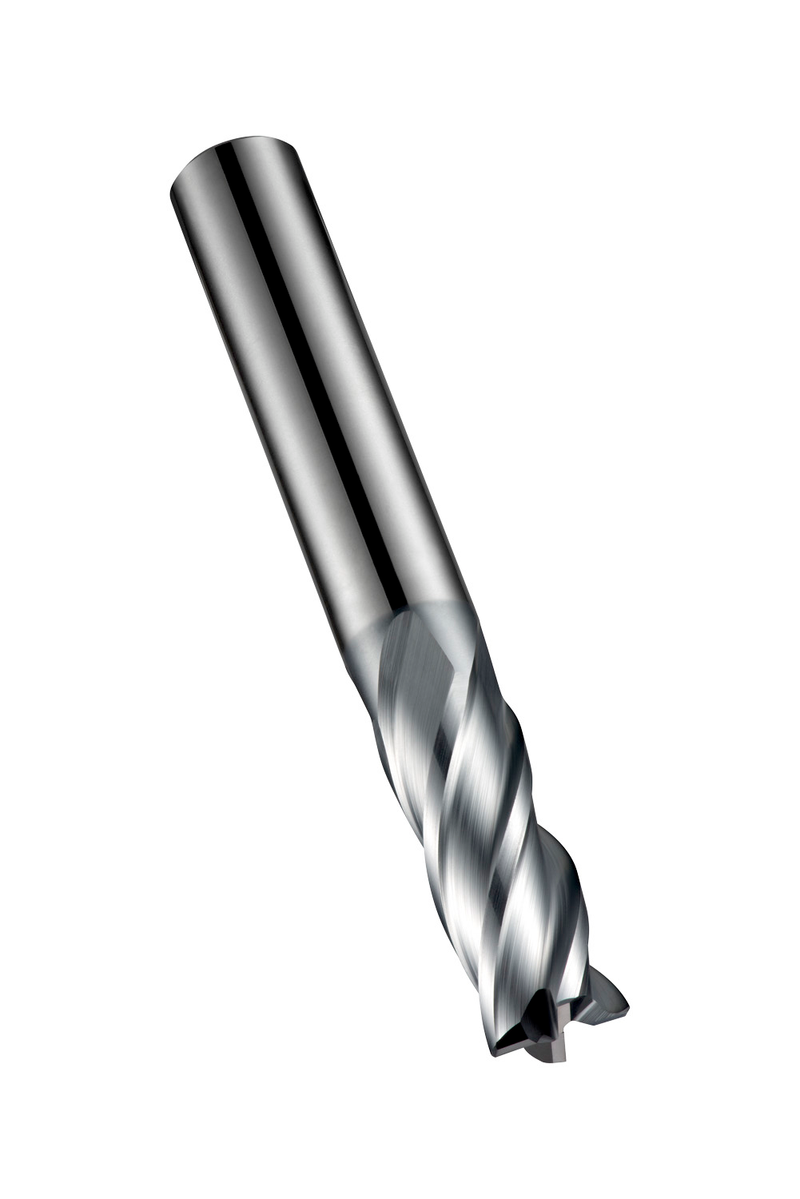

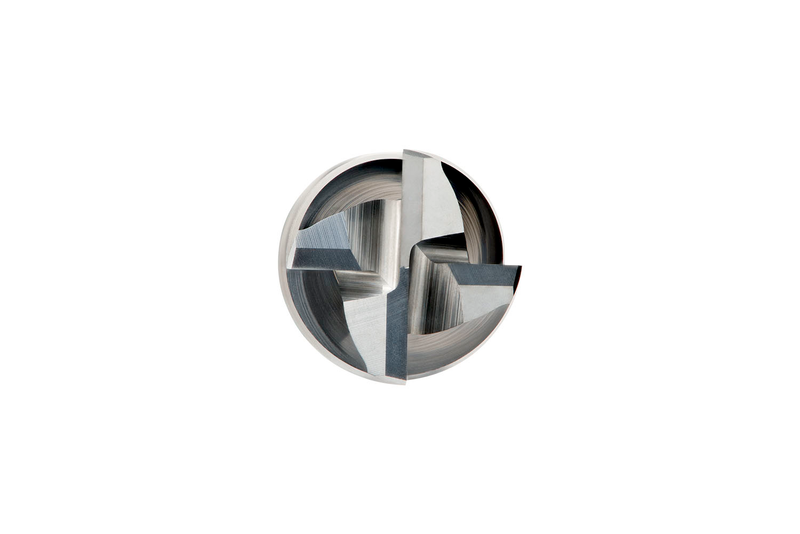

Fraise en bout série courte 4 dents, diamètre 16mm avec 32mm de longueur de coupe, 92mm de longueur totale et chanfreins d'angle de 0.2mm à 45°, selon la norme DIN 6527 L avec une queue cylindrique de 16mm, carbure monobloc avec revêtement AlCrN, hélice de 34° et angle de dépouille de 9° pour le surfaçage en bout et le plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S814HA16.0
GradeAlCrN
Product Number5983573
Product FamilyS814HA

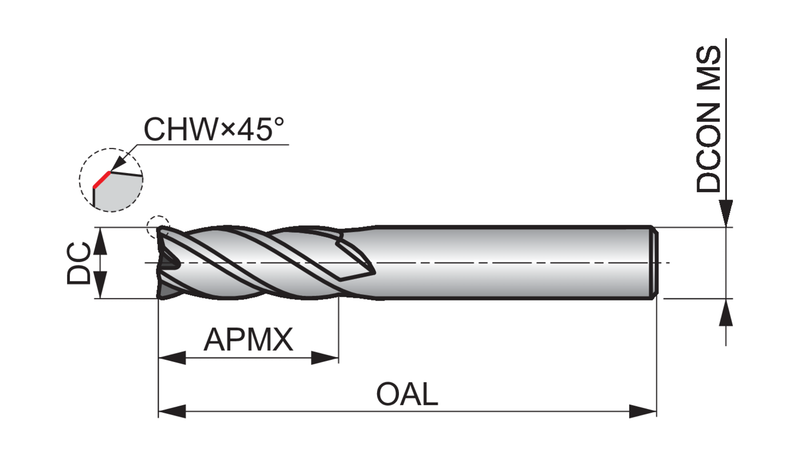

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number642580
EAN7320760642580
File Type Download
S814HA16.0 — 3D Model STP Download
S814HA16.0 — 2D Model DXF Download
S814HA16.0 — Line Drawing PDF Download
