S814HA20.0
S814HA20.0
S814HA20.0
S814HA20.0

S814HA20.0

UGC DOR5983579
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$390.61 CAD - $390.61 CAD
$390.61 CAD
$390.61 CAD - $390.61 CAD
$390.61 CAD

Vendu en lots de : 1

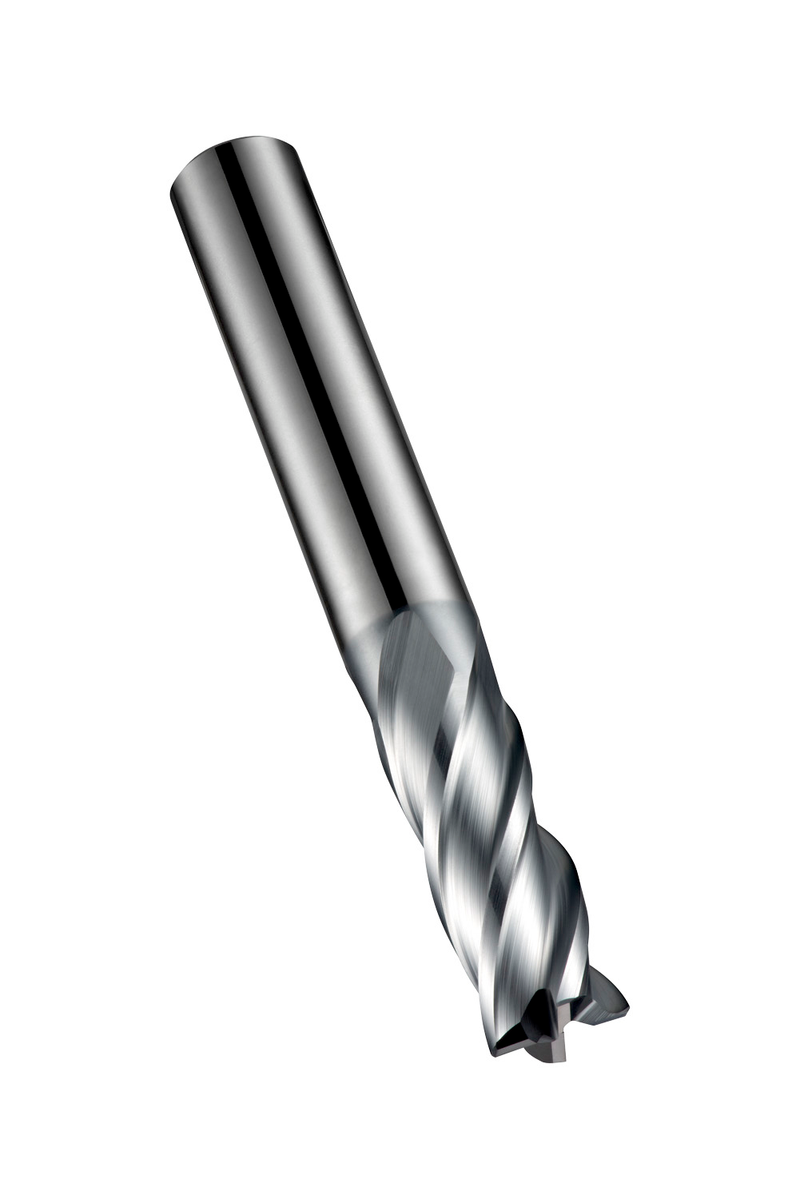

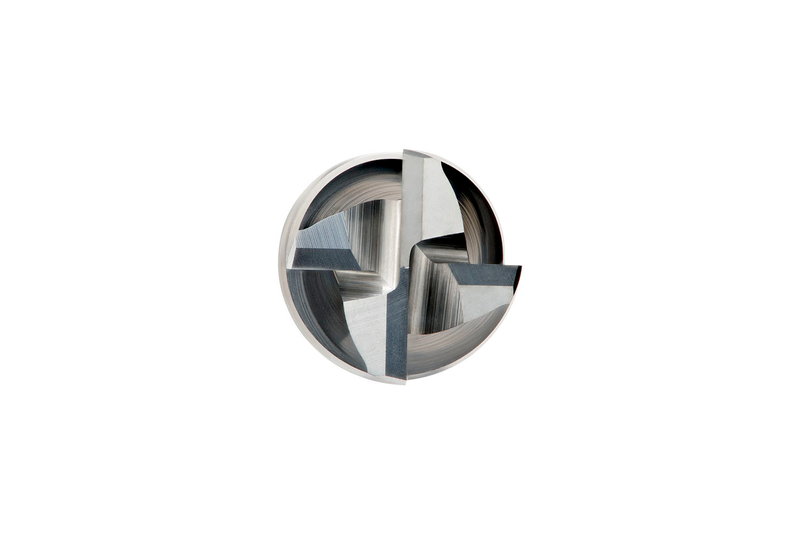

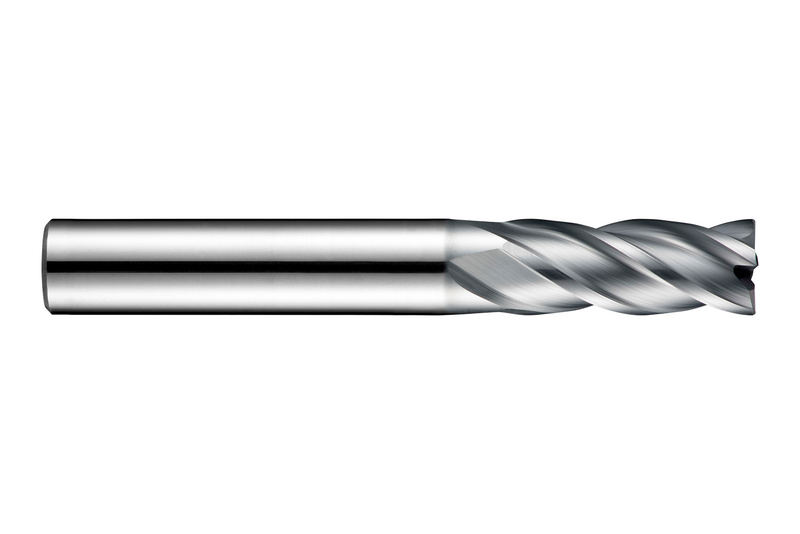

Fraise carbure monobloc à queue cylindrique, à 4 dents, série courte, diamètre 20mm, longueur de coupe 38mm, longueur totale 104mm, chanfrein 0,3mm à 45°, norme DIN 6527 L, queue de 20mm, revêtement AlCrN, hélice 34° et angle de dépouille 9° pour le fraisage d'épaulements et le plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S814HA20.0
GradeAlCrN
Product Number5983579
Product FamilyS814HA
Insert Geometry

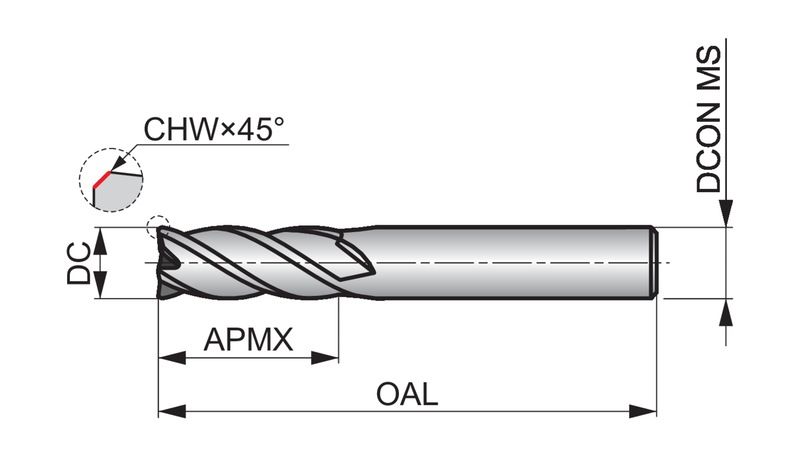

Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number642597
EAN7320760642597
File Type Download
S814HA20.0 — 3D Model STP Download
S814HA20.0 — 2D Model DXF Download
S814HA20.0 — Line Drawing PDF Download
